linear weighing packaging machine parameters:

1. The power supply requires three-phase 380V

2. The capacity of the weighing bucket is 2.0L (can be customized according to customer needs)

3. 7-inch color touch screen

4. Control system: Chip integrated control, stable performance, complete functions and simple operation.

5. Packing weight: 50-3000G

6. Packing accuracy: ±1%

7. Filling power: 20-40 times/min

8. Machine power: 4KW

9. Whole machine weight: 400KG

10. Machine volume: 900*1000*1900

11. model:BT-K4

Features

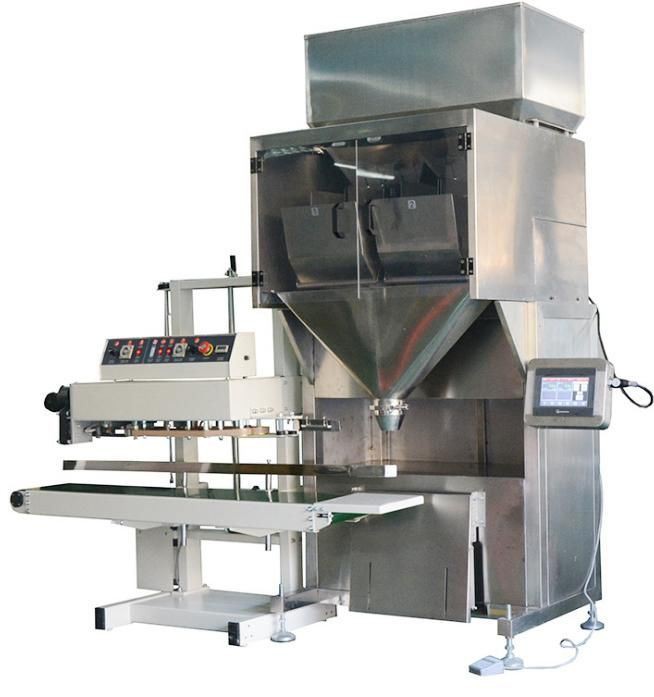

This Automatic Linear Weighing Packaging Machine for Pet Feed is made of stainless steel, and the vacuum chamber is an ultra-thick stainless steel plate with a thickness of 4mm, which will not leak or deform after long-term use. It includes a rack, a barrel lifting device, a feeding device, and a quantitative device; the feeding device is installed on the barrel lifting device, the barrel lifting device is installed on the straight wall of the rack, and the quantitative device is installed on the rack. The lower part is located below the unloading device. The machine uses its vacuum chamber to vacuum various food materials, or rush into inert gas to achieve the purpose of anti-corrosion.

Notice

Clean the metering part in time after the particle packaging scale equipment stops working. For some packaging materials that can adhere to the inside of the equipment, it should be cleaned in time after each use, so as not to affect the next use; keep all parts of the machine clean. . Effectively prolong the service life of the equipment and ensure the normal operation of the equipment.

linear weighing packaging machineapplications:

This machine is mainly suitable for quantitative packaging of granular, mixed granular powder, strips, and other materials. Such as: beans, nuts, pesticides, sugar, fertilizers, Pet feed, Chinese herbal medicine pieces, Chinese medicine granules, premixes, washing powder, snack foods, condiment,melon seeds, peanuts, salt, chicken essence, seeds, grain, hardware and other granular materials.

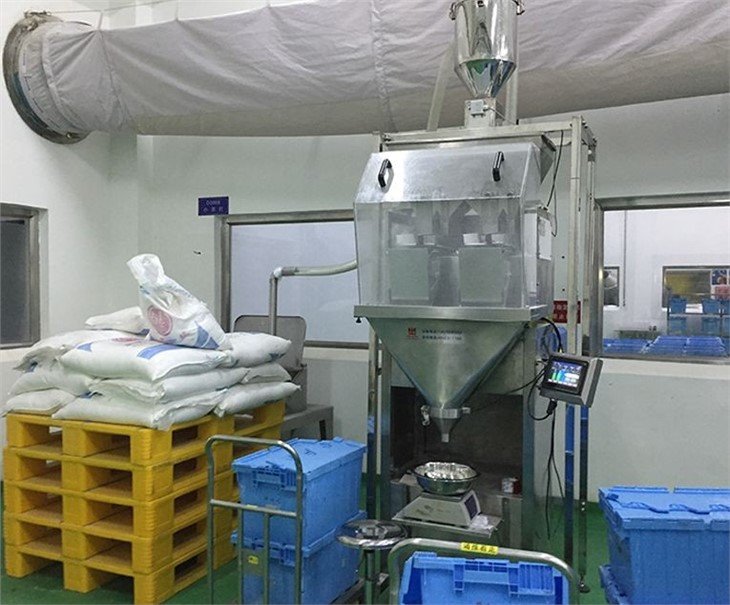

Cases:
