Large vertical weighing packing machine parameters:

1. The power supply requires three-phase 380V

2. The capacity of the weighing bucket is 2.0L (can be customized according to customer needs)

3. 7-inch color touch screen

4. Control system: Chip integrated control, stable performance, complete functions and simple operation.

5. Packing weight: 50-3000G

6. Packing accuracy: ±1%

7. Filling power: 20-40 times/min

8. Machine power: 4KW

9. Whole machine weight: 400KG

10. Machine volume: 900*1000*1900

11. model:BT-K4

Large vertical weighing packing machine features:

1. Using all 304 stainless steel production technology, in line with GMP standards

2. PLC touch screen computer control technology, simple operation and strong anti-interference

3. Independent feeding with 4 scales and 4 buckets, the feeder can adjust itself according to the proportion of the material during work, which has achieved higher accuracy and faster speed.

4. The use of military weighing instruments and sensors, with high accuracy and fast speed, has broken the current domestic traditional instrument control system.

5. The setting parameters have the power-off memory function, and can save multiple formulas and specification parameters, which can be used after power on.

6. With the feeding machine, the conveyor belt and the sealing machine realize automatic control, which improves efficiency and reduces labor intensity.

Weighing packing machine Applications:

This machine is mainly suitable for quantitative packaging of granular, mixed granular powder, strips, and other materials. Such as: beans, nuts, pesticides, sugar, fertilizers, Pet feed, Chinese herbal medicine pieces, Chinese medicine granules, premixes, washing powder, snack foods, condiment,melon seeds, peanuts, salt, chicken essence, seeds, grain, hardware and other granular materials.

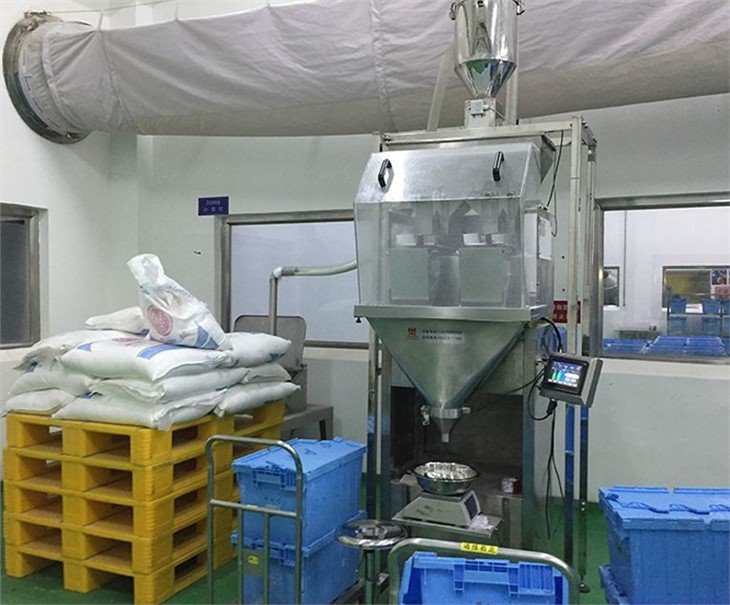

Cases:
