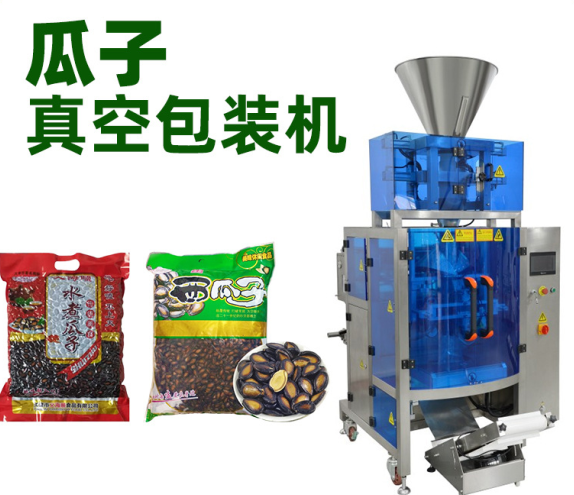

Vertical Vacuum Filling and Packing Machine for nuts rice

The vacuum packaging machine for food is one of the food packing equipments. The automatic vacuum packing machine has two working chambers, one is vacuuming, the other is vacuuming the food, saving time and improving efficiency.

Send Inquiry

Details Video

vertical filling, sealing and packing machine with vacuum.

Features:

1. adopts the advanced PLC control system, touch screen in both Chinese and English, and automatic completion of measuring, bag making, filling, sealing, cutting and printing codes.

2. adopts the stainless steel 201 for the machine's mainframe, and stainless steel 304 for the parts touching supplies, which has a very good effect of anti-rusting, so guarantee the products clean and sanitary, and also greatly prolong the machine's life-span.

Technical Parameters

Item	Fully automatic Vacuum Packing Machine for granules
Model	PL-520KB
Filling	measuring cups
Bag style	Back sealed bag,pillow bag
Volume/bag	200-2000g/bag
Bag size	L80-350mm, W50-250mm
Packing speed	30-50 bags/min
Control system	PLC+ touch screen
material	stainless steel
Pneumatic	0.65Mpa,0.3cbm/min
voltage	380V, 50Hz,3P/ 220V, 60Hz, 3P
Weight	G.W. 800kg
Dimension	L1320W950H2550 (mm)
Power	2.5KW
Film material	Paper/polyethylene; cellophane/polyethylene; Plated aluminum/polyethylene; BOPP/polyethylene; nylon/polyethylene
supplies	different grains or granules, such as sugar, salt, desiccant, coffee, washing powder, glucose, seeds, seasoning, pepper, beans, etc.
Main functions	Automatically measure, make bags, fill, seal, cut and print codes.
