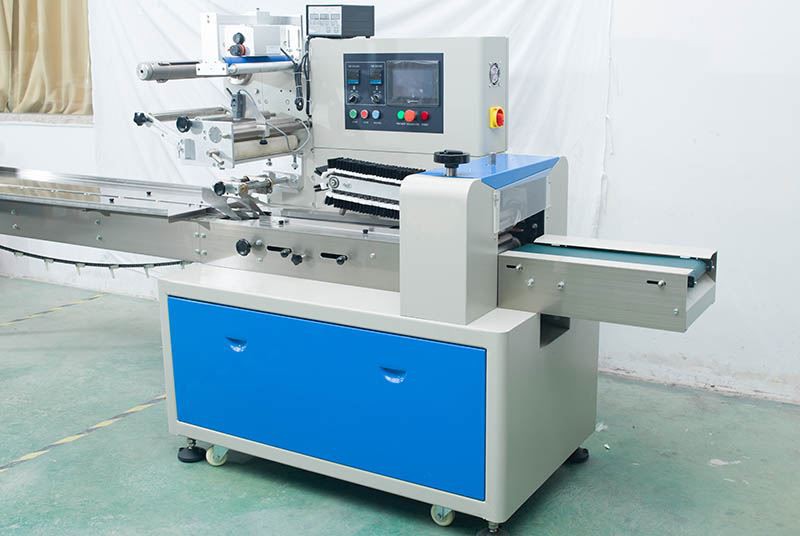

Factory price flow packing machine tooth brush:
Suitable for packaging objects products for food and non-food such as biscuits, pie, chocolate, bread, instant noodles, medicals, daily appliances, industrial parts,hard wares paper boxes, plates, etc.
Factory price flow packing machine tooth brush Specifications
(We can customize the suitable one for you according to your requiredment.Just Tell us : Weight or Bag Size required.)
| Model | BTF-250X | |
| Film width | Max.250mm | |
| Film width Range | 80-114mm/ 114-180mm/ 140-250mm | |
| Bag width:(only can choose one range) | 25-42mm/ 42-75mm/ 55-110mm | |
| Bag Length:(only can choose one range) | 65-190mm/ 120-280mm | 90-220mm/150-330mm |
| Product Height : | Max.35mm | Max.50mm |
| Speed: | 40-230Bags/min | |
| Weight: | 430kg | |
| Power: | 220V,50/60HZ, Single Phase | |
| Dimension: | (L)3920*(W)670*(H)1320mm | |
| Film roll diameter: | Max.320m Optional Accessories: |
1:Date Coder 2:Touchable Screen 3:Automatic Punching Device
4:Alternative sealing patterns and notch 5:Auto labeling device 6:Deoxidizer chute device
7:Gas flushing device 8:Alcohol spraying device 9:Auto feeder

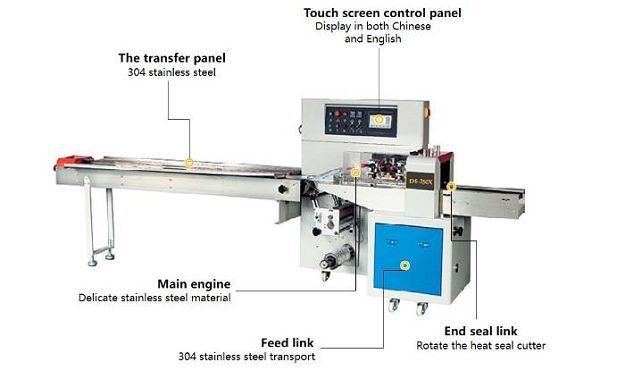

Factory price flow packing machine tooth brush features:
Double transducer control, flexible bag length cutting, operator no need to adjust the unloading working, saving time and saving films.
Human-machine operation, convenient and quick parameter setting.
Self disgonosis failure function, clear failure display.
High Sensitivity optical electric color mark tracking and digital input cut position which makes the sealing and cutting more accurate.
Separate PID control to temperature, suitable for various packing materials.
Stopping the machine in selected position, no sticking to the knife and no waste packing film.
Simple driving system, reliable working, convenient maintenance.
All the controls are achieved by software, convenient for function adjusting and upgrading.

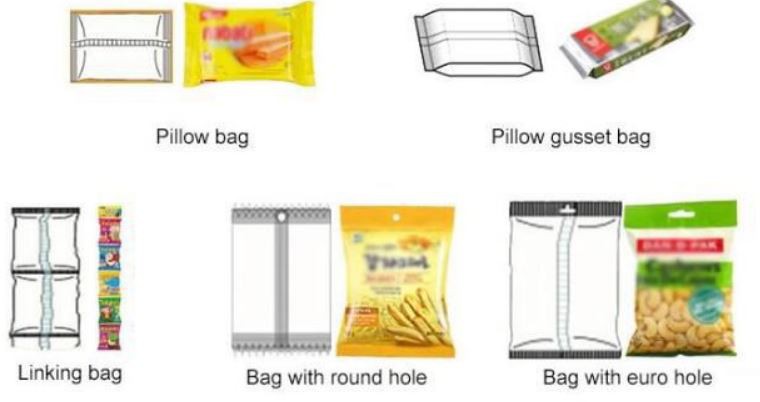

Factory price flow packing machine tooth brush Bag types:

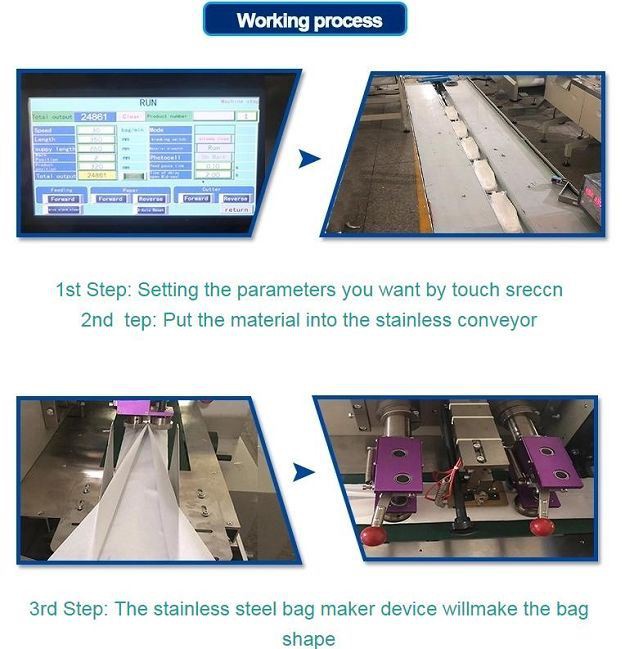

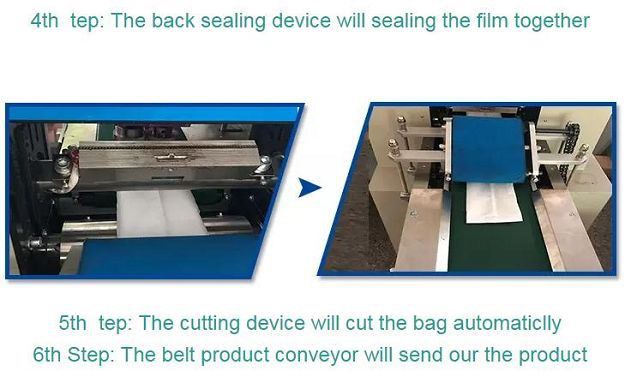

Factory price flow packing machine tooth brush working process:
Factory price flow packing machine tooth brush after Service:
| A.The warranty would be one year. The damaged one (not include the part which is made damaged by man) can be changed by the supplier, but the demand-side needs to burden the transportation fee. | |||||||||||
| B.The above quotation is not include the maintenance fee which would happen at home or abroad. If the demand-side asks for maintenance door-to-door, then need to pay all the fees which will be charged.including the service fee USD100/DAY, visa fee, round trip flight ticket, room and board fee are in buyer's side | |||||||||||
| C.The supplier will provide the spare parts of the machine and support for technology for the good. | |||||||||||
FAQ:
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
