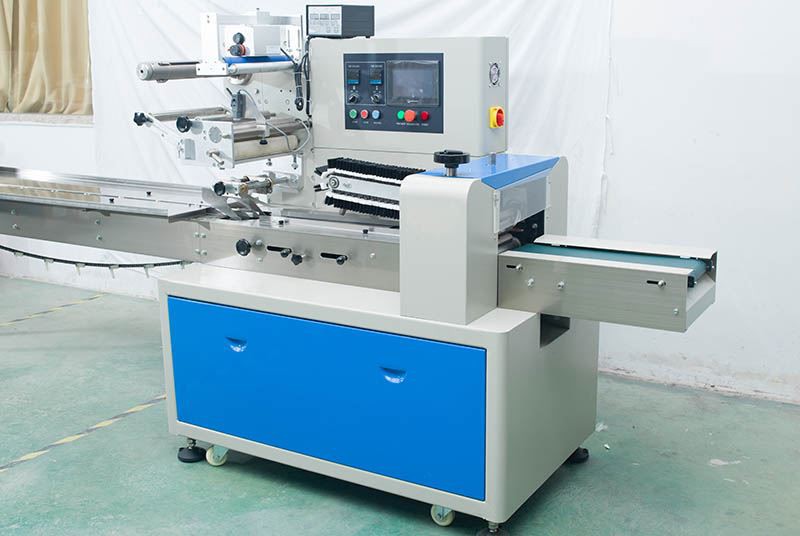

automatic pillow packing machine for soap:
is suitable for various kinds of regular objects,such as biscuit,pies,chocolates,bread,noodles,moon-cakes,drugs,daily appliances daily life products,paper boxes,plates etc.
automatic pillow packing machine for soap Specifications:
| Model | BTF-350X |
| Film Width | Max. 350mm |
| Bag Length | 65-190mm or 120-280mm |
| Bag Width | 50-160mm |
| Product Height | Max.80mm |
| Dia. of Film Roll | Max.320mm |
| Packing Speed | 40-230 packet per min |
| Supply Power | 220V,50/60HZ,2.6Kw |
| Dimension | L3770xW720xH1450mm |
| Net Weight | 620Kg |
Optional Accessories: |
1:Date Coder 2:Touchable Screen 3:Automatic Punching Device
4:Alternative sealing patterns and notch 5:Auto labeling device 6:Deoxidizer chute device
7:Gas flushing device 8:Alcohol spraying device 9:Auto feeder

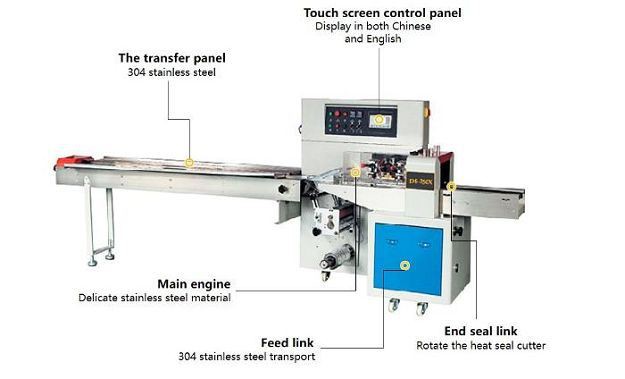

automatic pillow packing machine for soap features:
1. Dual frequency conversion control,bag length can be setted and cutted in one step,saving time and film;
2. Interface features easy and quick setting and operation
3. Self failure diagnosis,clear failure display;
4.High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for estra accuracy;
5. Temperature independent PID control,more suitable for packing different material;
6. Positioned stop function,without sticking knife or wasting film;
7. Simple driving system,reliable working,convenient to maintain;
8. All control is realized through software,easy to function adjusting and technical upgrade.
automatic pillow packing machine for soap bag types:
automatic pillow packing machine for soap after Service:
| A.The warranty would be one year. The damaged one (not include the part which is made damaged by man) can be changed by the supplier, but the demand-side needs to burden the transportation fee. | |||||||||||
| B.The above quotation is not include the maintenance fee which would happen at home or abroad. If the demand-side asks for maintenance door-to-door, then need to pay all the fees which will be charged.including the service fee USD100/DAY, visa fee, round trip flight ticket, room and board fee are in buyer's side |
FAQ:
1. What kinds of product does you have ?
Bestar products include flow packing machine,counting number packing machine,metal detector, checkweigher, multilanes packing machine,pillow packing machine,semi-auto filling machine etc; Also the customized packing machine is available,especially the Production Packing Line is welcome.
2. I know little about the packing machine before,How to use it ? Is it complex ?
It is very simple we make sure you can use it easily as per our advice.
As you can get any information that can help you to install and use the packing machine,such as a detailed instruction,a whole set design,a installation video,even our technician.
3. How about your packing machine quality ? any certification you have ?
Bestar has a strict Quality Control system which is from Design Dept.-Purchasing Dept.-Product Dept.-Quality Dept.-Packing Dept. ; eighty percent have over 8 year experience,and the left twenty percent has 5 year experience; Meanwhile our packing machine has International Standard CE certification which has passed the most important standard of MD and LVD at the same time.
