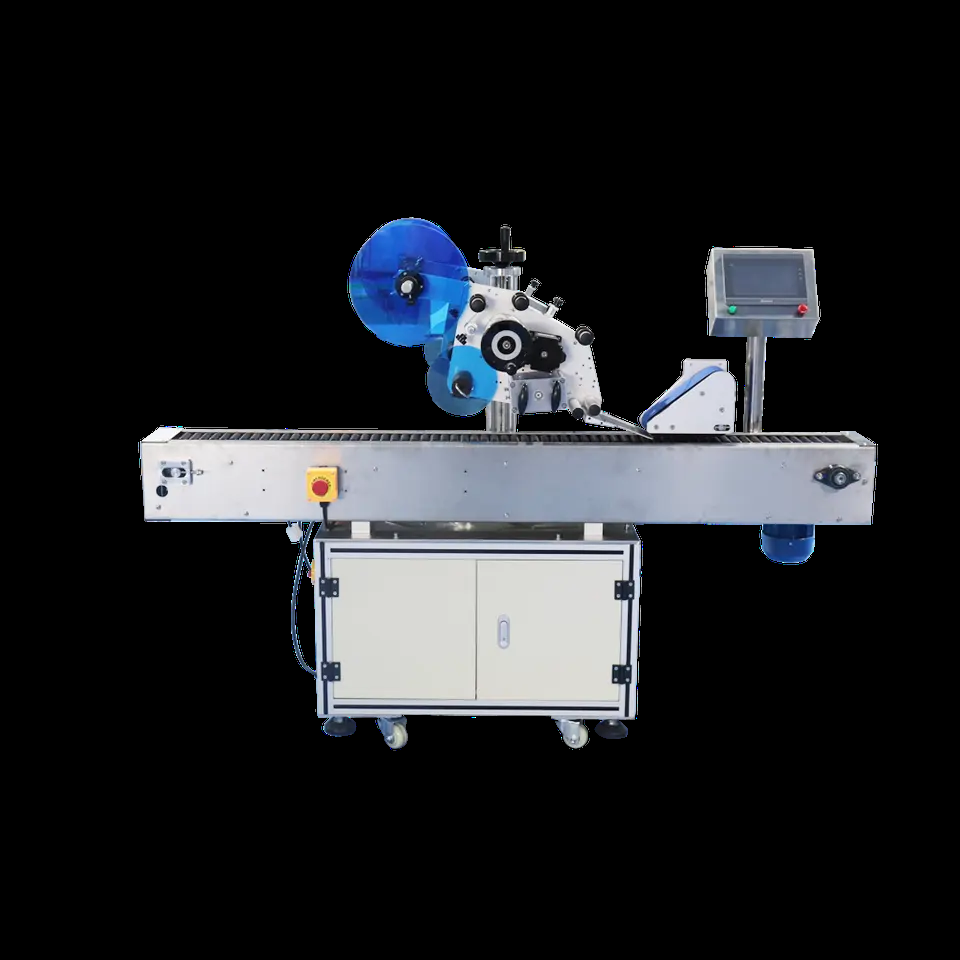

Automatic Labeling Machine For Horizontal 10Ml Vial Label Machine Ampoule Labeling Machine
Machine Type | BTAS-C05 |
Labeling Accuracy | ±1mm |
Labeling Speed | 60-200 pieces/minute |
Applicable Product Diameter (for Round Bottles) | 10mm~30mm |
Applicable Products And Height | 15mm ~100mm |
Applicable Label Size | Length: 10mm~100mm Bottom paper width: 10mm ~130mm |
Inner Diameter Of Label Roll | 76mm |
Label Outer Diameter | 280mm |
Overall Size (length*width*height) | 2050mm*650mm*1450mm |
Applicable Power Supply | 110-230V |
Total Weight | 210Kg |
Scope of application:
(1) Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, bar codes, etc.
(2) Applicable products: Products requiring labels to be attached on the circumferential and conical surfaces; single or double labels can be applied.
(3) Application industry: widely used in food, medicine, daily chemical, electronics, hardware, plastic and other industries.
