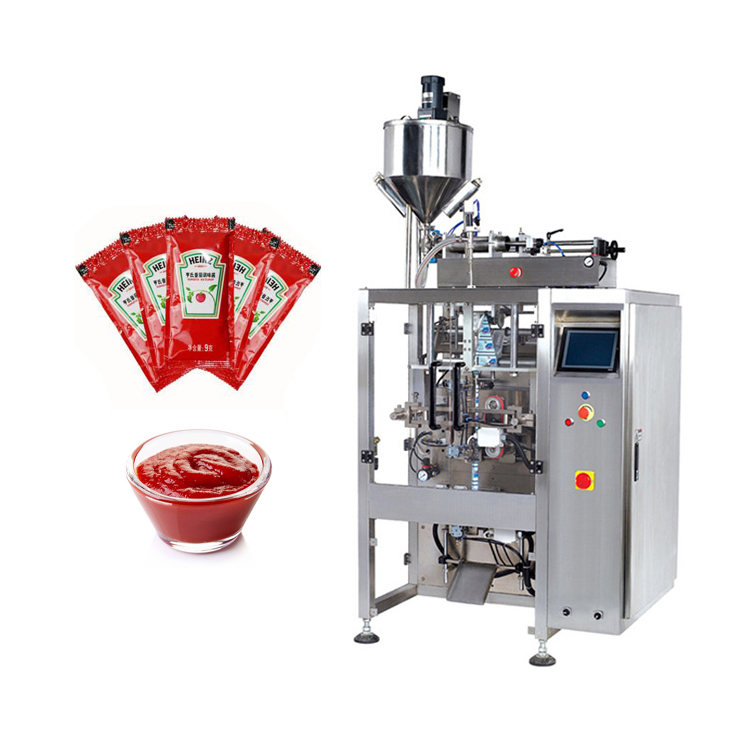

250g automatic vertical fill seal packing machine for ketchup paste sauce
vertical fill seal packing machine for ketchup Parameters:
| Model | LP-320 | LP-420 | LP-520 | LP-620 | LP-720 |
| Bag Length(mm) | 80-180 | 80-300 | 80-400 | 100-400 | 100-400 |
| Bag Width(mm) | 45-150 | 50-200 | 80-250 | 150-300 | 180-350 |
| Max Width of Roll(mm) | 320 | 420 | 520 | 620 | 720 |
| Packing Speed(bags/min) | 40-90 | 5-80 | 5-70 | 5-65 | 5-10 |
| Air Consumption(Mpa) | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
| Gas Consumption(m3/min) | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Power Voltage (v) | 220v | 220v | 220v | 220v | 220v |
| Power (kw) | 3kw | 2.2KW | 4kw | 4kw | 5kw |
| Demension(cm) | 122*90*175 | 132*95*136 | 115*179.5*165 | 165*125*2000 | 178*134*210 |
| Weight(kg) | 350 | 540 | 600 | 800 | 900 |
vertical fill seal packing machine for ketchup Features:
1. Low cost high gain, high speed and efficiency.
2. Famous brand PLC control system, large touch screen,convenient to operate.
3. Film drawing down system and horizontal sealing controlled by servo motor.
4. Minimize the loss with complete automatic warn protection function.
5. It can complete feeding, measuring, filling, sealing, date, printing, charging (exhausting), counting, finished product
delivery when it equips with feeding and measuring equipment.
6.Method of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.
The complete set of equipment is included:
1.BTV-200R Main Machine
2.Liquid Pump
3.Finished Product Conveyor

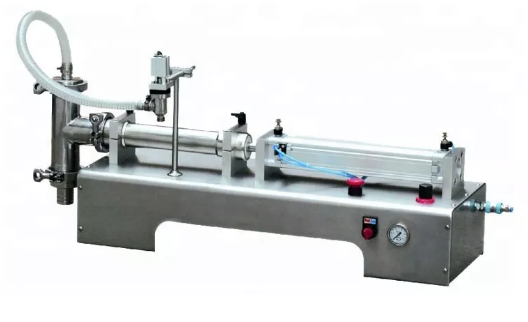

1.Liquid Pump* Famous brands for electrical components, guaranteeing high quality and stable running.
* Control system by PLC for high accuracy and adjusting range.
* Compatible with various filling systems.
* Suitable to package liquid materials, such as shampoo, facial cream,oil, sauce,jam, etc.
vertical fill seal packing machine for ketchup Applications:
This type of vertical packing machine is suitable for packing liquid or thick liquid which can be packed by film.
Liquid: rice wine, soy sauce, rice vinegar, fruit juice, beverage, detergent, etc.
Thick liquid: tomato sauce, peanut butter, jam, chili sauce, bean paste, etc
Packing:
FAQ:
Q: Are you trading company or manufacturer? A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: How many different types of products your company manufactures?A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: How long is your delivery time?
A: The general delivery time is 15 working days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-3 days.
Q: What is your term of payment?
A: 40% down payment before producing and 60% balance payment before shipping.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
