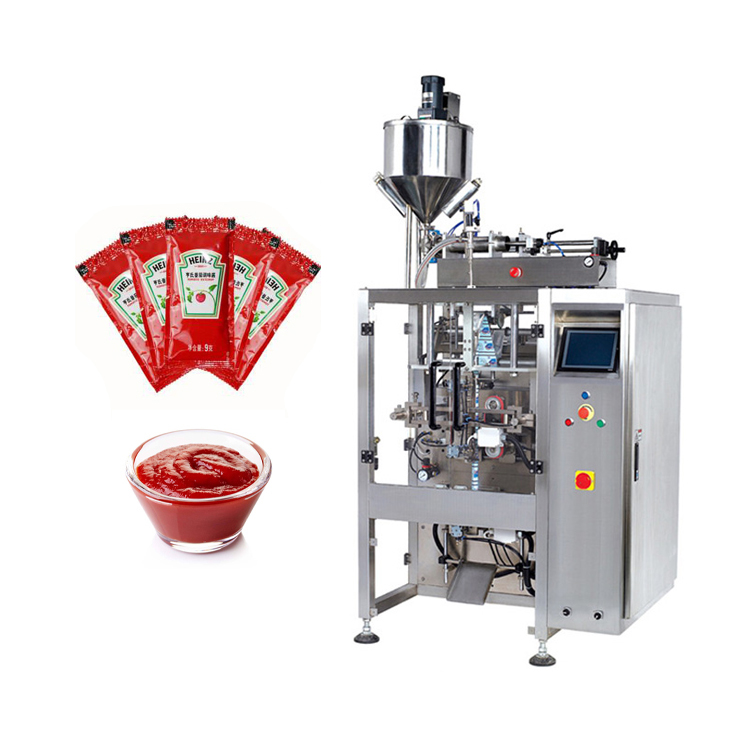

fully auto Vertical Filling and Packing Machine For Paste honey shampoo
fully auto Vertical Filling and Packing Machine Parameters:
| Model | BTV-420Y |
| Film Width | Max.420mm |
| Film Width (Bag Former) | 150-420mm |
| Bag Width | 65-200mm |
| Bag length | 80-300mm |
| Film roll Diameter | Max.320mm |
| Packing Speed | 5-60 bags/min |
| Meaurment Range | 150-1500ml |
| Film Thickness | 0.04-0.08mm |
| Packaging Film Materials | Laminate plastic Film,such as OPP/CPP/OPP/CE/MST/PE etc. |
| Power | 220V,50/60Hz,3KW |
| Machine Type | Pneumatic Type |
fully auto Vertical Filling and Packing Machine Features:
New design, beautiful appearance, more reasonable structure, more advanced technology
Imported PLC computer control system, color touch screen, easy to operate, intuitive and efficient
Imported film transport system, imported color standard sensor, accurate positioning, excellent performance, beautiful packaging
Multiple automatic alarm protection functions to minimize damage
Diversified bag shape, can provide customers with pillow bag, pocket, hole bag, joint and so on
Touch screen and stable and reliable PLC control, bag-making, metering, filling, sealing, coding, bag-cutting one-time completion
The film is controlled by servo motor to realize high precision positioning and accurate size
External film release mechanism is adopted to facilitate the installation of packaging film
Vertical sealing and sealing process, automatic adjustment of deviation, greatly reducing labor intensity
The complete set of equipment is included:
1.BTV-200R Main Machine
2.Liquid Pump
3.Finished Product Conveyor

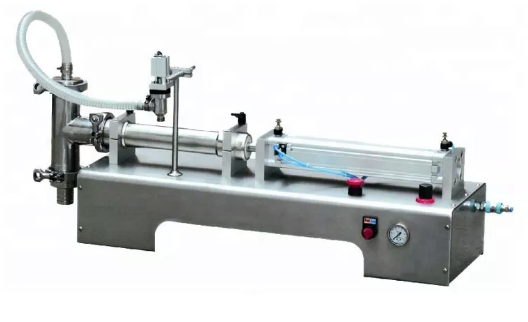

1.Liquid Pump* Famous brands for electrical components, guaranteeing high quality and stable running.
* Control system by PLC for high accuracy and adjusting range.
* Compatible with various filling systems.
* Suitable to package liquid materials, such as shampoo, facial cream,oil, sauce,jam, etc.
vertical fill seal packing machine for ketchup Applications:
This type of vertical packing machine is suitable for packing liquid or thick liquid which can be packed by film.
Liquid: rice wine, soy sauce, rice vinegar, fruit juice, beverage, detergent, etc.
Thick liquid: tomato sauce, peanut butter, jam, chili sauce, bean paste, etc
Our vertical packing machine bag type
We have several Models.
Don't Worry! We can customize the suitable one for you according to your requirement.
Just Tell us : Weight or Bag Size required.
Packing:
