Automatic screw counting packaging machine Hardware nut sub-packaging packaging machine Particle screw packaging

Automatic screw packaging machine

Uses: Widely used in the mixed packaging of auxiliary installation screws, nuts and small plastic parts of electrical appliances, lighting decorations and hardware decoration products. Special shape parts can also be customized according to customer requirements. This machine is controlled by microcomputer, and the packaging process is realized automatically.

Technical features of screw packing machine:

The vibrating plate, linear vibration arrangement device, and precise counting control device of the screw packaging machine are customized for screw samples, which can ensure the accuracy of each bag. The packaging can be determined according to the customer's requirements. The advanced step control of the machine and the color code tracking can be used together to obtain the trademark pattern. Advanced PLC or single-chip microcomputer control system, self-shutdown, self-alarm, self-diagnosis, safe and easy to use. The number of packages can be automatically displayed, and the workload of the machine can be easily counted.

Screw packaging machine technical specifications:

Packing quantity (range): 1-12, unlimited number of tablets

Bag length (mm): 40-180

Bag width (mm): 40-100

Production capacity (bag/min): 20-70

Total power (watts): 2400

Net weight (kg): 500

Packaging material: composite film material

Dimensions (mm): L1100×W1300×H1600

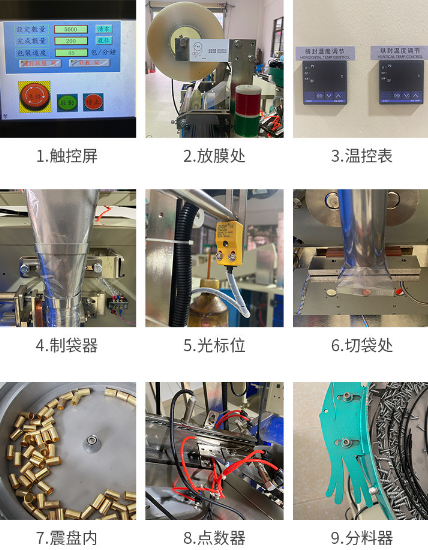

Automatic Hardware screw nut counting packaging machine details:

Principle and characteristics of screw packaging machine:

A. The vibration plate is mainly composed of a hopper, a chassis, a controller, a linear feeder, etc.

B. Automatic sorting, testing, counting and packaging.

C. Advanced microcomputer packaging controller, excellent man-machine dialogue mode, so that the speed, bag length, cut point position detection, etc. can be directly displayed on the interface.

D. The sliding horizontal sealing mechanism can adjust the center height of the horizontal sealing up and down arbitrarily.

E. Imported color mark detector makes color mark detection more accurate. Reticulate, straight and vertical seals are optional.
