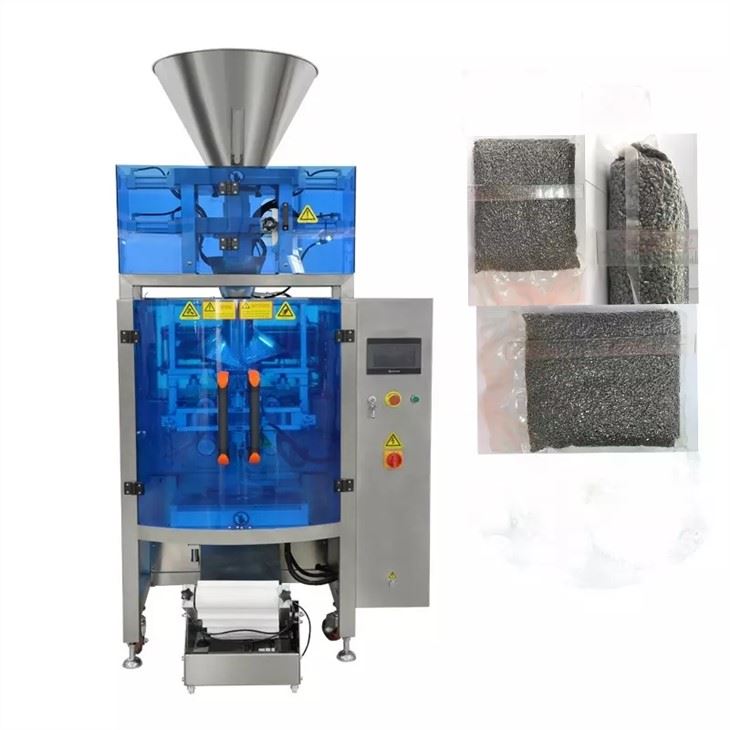

Automatic Vertical Vacuum Brick Shape Packaging Sealing Machine for Coffee Beans
Functions: bag making, measuring, filling, sealing, slitting, counting, hot pressing batch number or printing date are automatically completed.
Packaging materials: cellophane/PE, BOPP/PE, aluminum foil/PE and other heat-sealing composite molds
Vertical vacuum packaging machine Technical Parameters:
| item | value |
| Filling method | Volumetric cup(single cup)/weigher/ auger filler/ piston pump |
| Control | PLC+Touch screen |
| Package type | Pillow/back side bag, Gusset bag |
| Bag size | width:50-200(mm) Length:80-300(mm) |
| Packing speed | 8-20bags/min |
| Film thickness | 0.08-0.13(mm) |
| Air consumption | 0.3cbm/min, 0.65Mpa |
| Power source | 220V, 50Hz, 3.5KW |
| Measuring range | 500-2000g |
| Filling accurancy | 0.5-5grams |
| Dimension | L1700*W1550*H2300mm |
| Total Weight | 1100kg |
Vacuum Filling and Packing Machine samples:
Vertical vacuum packaging machine samples：
vacuum packing machine clients:
Vertical vacuum packaging machine Our Services
After-sales service
a. For our machines, we will provide some spare parts and easy broken parts free of charge when delivering.
b. We will have one year free warranty period. During warranty period, if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours. If there are some spare parts needed to be replaced, we will provide the spare parts for free. Beyond warranty, we will charge the cost price for spare parts. We provide technical support for our machines for life-long time.
c. We can provide installation and maintenance service at your place if you need.
1. adopts the advanced PLC control system, touch screen in both Chinese and English, and automatic completion of measuring, bag making, filling, sealing, cutting and printing codes.Features:
2. adopts the stainless steel 201 for the machine's mainframe, and stainless steel 304 for the parts touching supplies, which has a very good effect of anti-rusting, so guarantee the products clean and sanitary, and also greatly prolong the machine's life-span.
