Location: Homepacking machineFlow Packing Machine
Paper Film Horizontal pillow Packing Machine

Paper Material Film Horizontal Packing Machine This machine designed for environmetal material, such as paper film. We can customize the suitable one for you according to your requiredment. Just Tell us  Weight or Bag Size required. Paper film wrapping machine Features Double transducer...


DetailsVideo

Paper Film Horizontal pillow Packing Machine

This machine designed for environmetal material, such as paper film, to pack napkins, fork, chopstics, books, etc

(We can customize the suitable one for you according to your requiredment.Just Tell us : Weight or Bag Size required.)

Specification (With the product size selection models)

Model

TT-250

TT-320

TT-350

Film Width

Max.250mm

Max.320mm

Max.350mm

Bag Length

65-280mm

65-330mm

65-330mm

Bag Width

30-110mm

50-150mm

50-160mm

Products High

max.55mm

max.55mm

max.60mm

Packing Speed

40-330bag/min

40-230bag/min

40-180bag/min

Power

220V 50/60HZ 2.4KW

220V 50/60HZ 2.6KW

220V 50/60HZ 2.6KW

Machine Size(mm)

3770x680x1420

3770x720x1420

4020x770x1420

Machine Weight

500kg

550kg

580kg

Suitable filmOPP, PE,OPP/PE, OPP/CPP, Paper film

Paper film wrapping machine Features:

  1. Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.
    2. human-machine operation, convenient and quick parameter setting..
    3. Self diagnosis failure function, clear failure display..
    4. High sensitivity optical electric color mark tracking and digital input cut position which makes the sealing and cutting more accurate..
    5. Separate PID control to temperature, suitable for various packing materials..
    6. Stopping the machine in selected position, no sticking to the knife and no waste packing film..
    7. Simple driving system, reliable working, convenient maintenance.
    8. suitable for Paper opp film

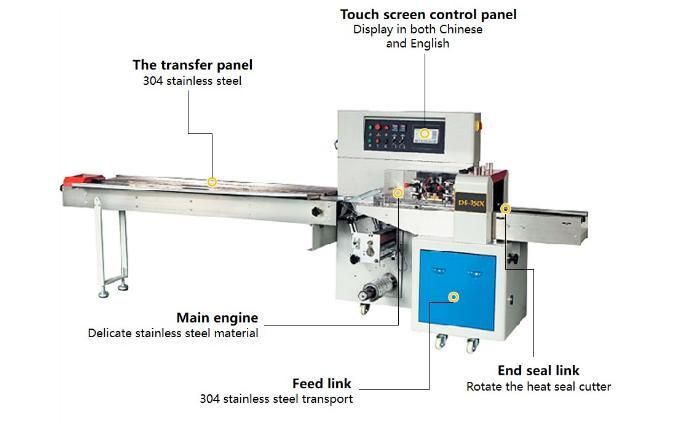

21(001)

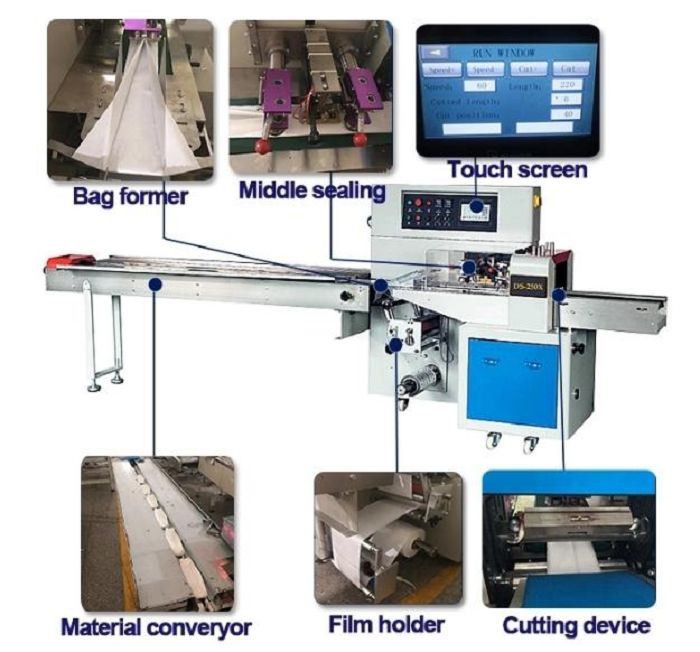

22(001)

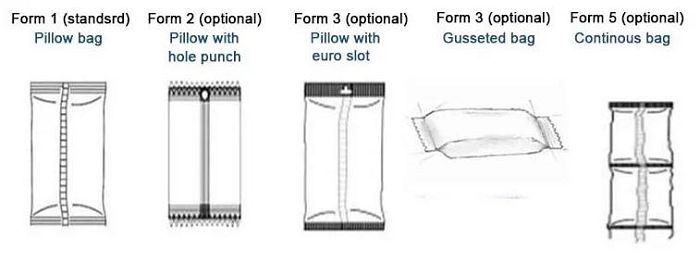

Bag types:

23(001)

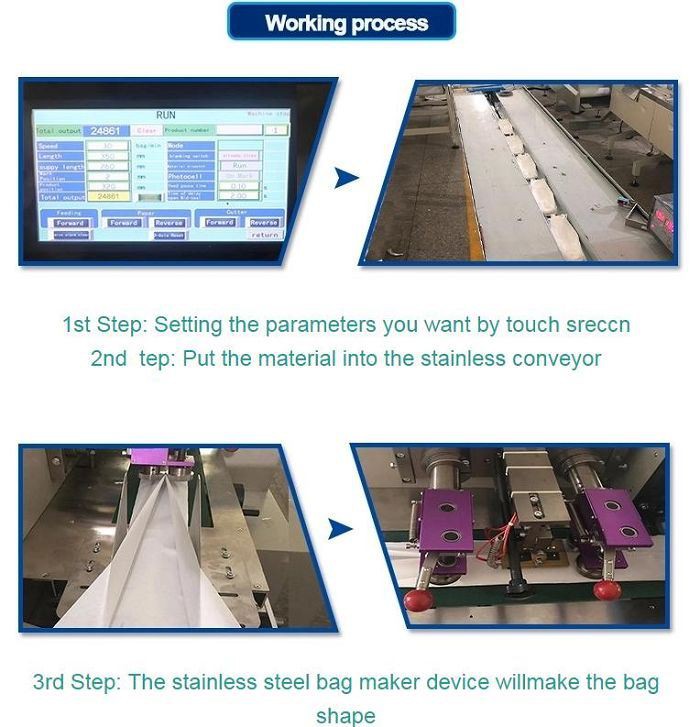

24(001)

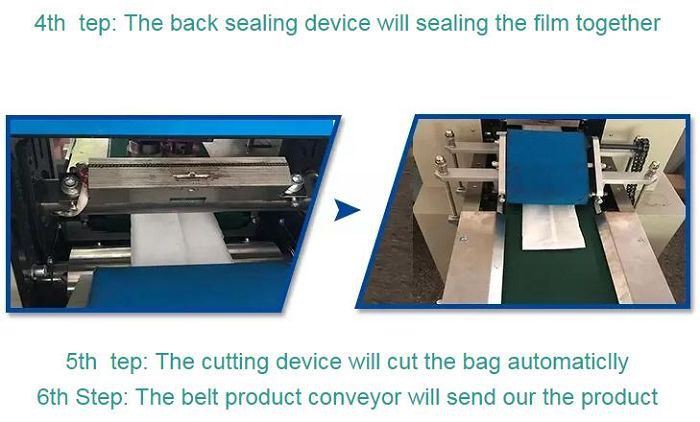

25(001)

Our service and FAQ:

One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
English software, user manual and the installation & debugging by our experienced technicians.


Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would liek to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.

Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q3. How can we make sure about the machine quality after placking the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.

Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.

Q5. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 50% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.

Q6: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your
reference before delivery.
