DetailsVideo
Features:
1. Chinese or English display(language can be set according to customer requirements);

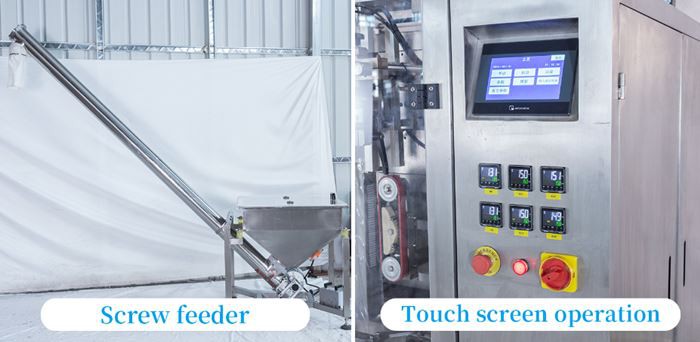

2. Easy operation, instructions and working conditions clearly shown on touch screen;
3. PLC provides stable working program;
4. Can preset 10 formulas, easier to change product packaging;
5. Intelligent temperature control, temperature difference within 2℃;

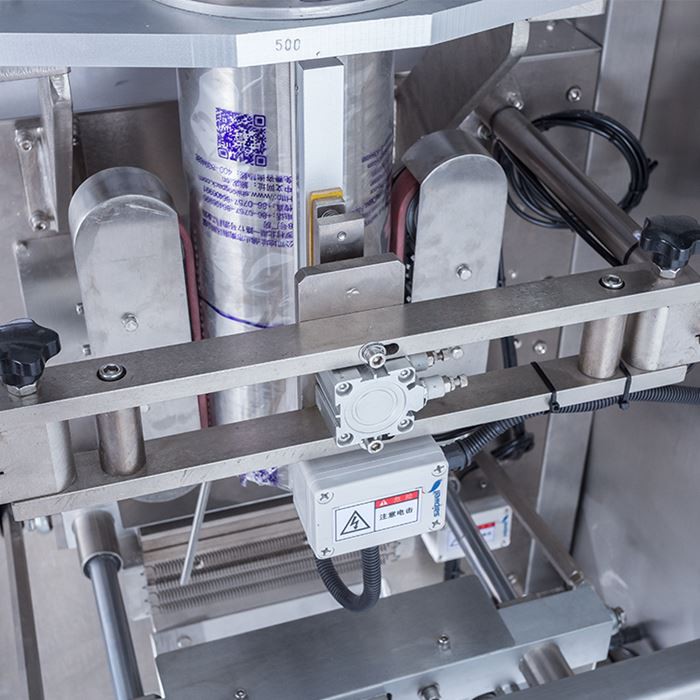

6. Transverse tooth seal, solid packaging;
7. Servo motor film pulling, pneumatic sealing device.

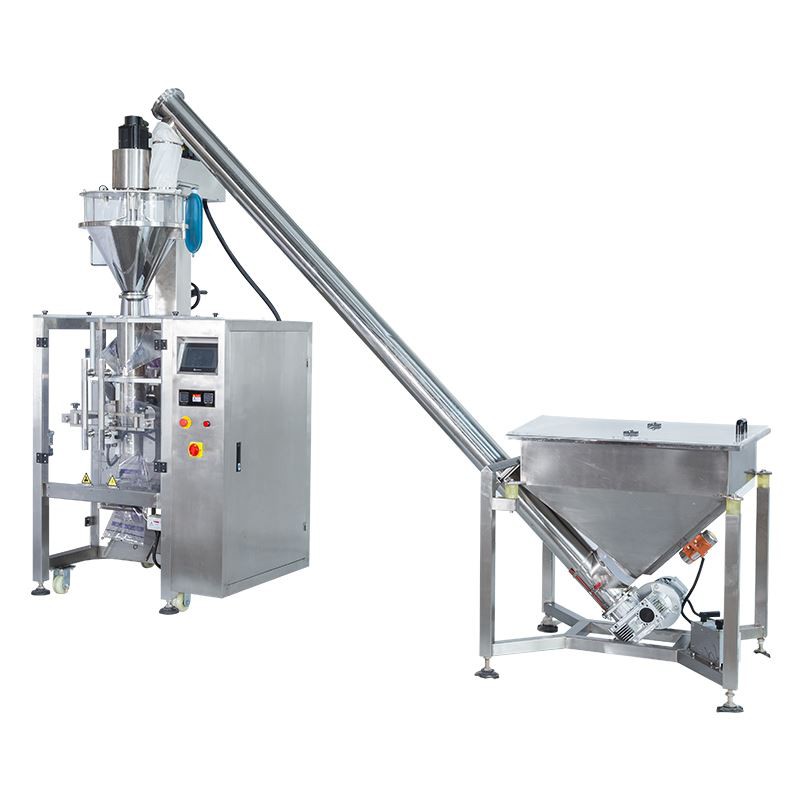

vertical filling packaging machine for powder parameters:
Vertical Packaging Machine for Powder | |||
Model | BTV-520 | BTV-420 | BTV-320 |
Packing material | OPP/CPP OPP/PE NILO/PE PE | ||
Measurement accuracy | Defect rate ≤0.5-1% depends on packaging speed and material weight | ||
Measuring range | 4300 ML | 2500ML | 800ML |
Bag size | W:150-250 mm L: 400 mm | W: 100-200mm L: 100~300mm | W: 50-150mm L: 50~200mm |
Packing speed | 5-50(bags/min) | 5-60 bags/min | 10-50 bags/min |
Max film width | 520mm | 420mm | 320mm |
Voltage | 220V AC/50HZ | 220V AC/50Hz | 220V AC/50Hz |
Power | 4kW | 3KW | 3KW |
Weight | 450kW | 400kg | 300kg |
The company's professional design machinery is widely used in food packaging, pharmaceutical packaging, chemical fertilizer packaging, feed packaging, toy packaging, hardware accessories and other industries. Welcome to consult customization!
FAQ:
Q：Are you a factory or a trading company?
A：We are factory produced packaging machines, we provide complete OEM and after-salesservice .
Q： Do you have a manual or operation video for us to learn more about the machine?
A：Yes, not only according to your design production manual or operation video, 3D engineering drawing, but also can provide video,if your packaging goods are easier to find in our local market, we can test the material from the packaging machine.
Q：How can I trust you for the first time?
A：Please note our business license and certificate above. If you do not trust us, then we can use Alibaba Trade Guarantee service to guarantee money for you and guarantee the punctual delivery and quality of your machines.
Q： If we have samples of new products, could you help to analyze and design the machines?
A：Yes, our technical department can help you analyze, design and test the new products you offer.
Q：How to ensure the quality of the machine after placing an order?
A：Before delivery, we will send you pictures and videos for you to check the quality, or we can arrange the quality inspection by ourselves or with your contact person in China.
Q：Can engineers work abroad?
A：Yes, but you will pay for the trip. So, in fact, to save you money, we will send you the full machine installation video and
provide you with the final help.
