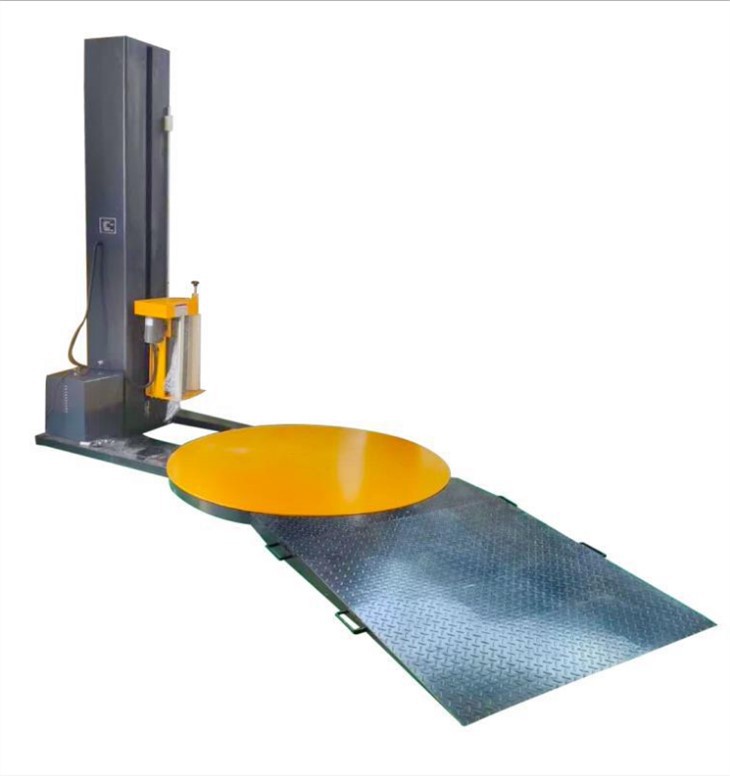

automatic pallet stretch film wrapper with a loading ramp

The main technical parameters:

Diameter of turntable: φ1650mm

Packing height: 2400mm

Column height: 2700mm

Wrapping specifications: (600-1200)×(600-1200)mm (L×W)

Turntable height: 78mm

Turntable load: 2000kg (MAX)

Whole machine power: 1.5kw

Power supply voltage: single-phase 220V 60HZ

Turntable speed: 0~12 rpm

Packaging material: LLDPE stretch film

Thickness: 17~35μm

Width: 500mm

The inner core of film roll: 76.2mm

The maximum outer diameter of film roll: 240mm

Product Description

This Automatic Pallet Stretch Wrapper is a type of packaging machine that uses automated film wrapping rather than manual wax wrapping. A machine that wraps products with the stretch film under a certain tension. It is often used to wrap the products accumulated on the pallet or shallow tray together with the pallet or shallow tray.

Main features:

1) Controlled by a PLC and a touch screen, the number of winding layers and times can be controlled;

2) A brand new graphic screen design that is simple to operate and learn;

3) Photoelectric switch that detects the goods' height automatically;

4) Reinforced winding function, with additional safety for a specific component;

5) An over-the-top timer function;

6) Includes a switch protection mechanism as well as an emergency stop switch.

Human-machine interface advantages:

1) Humanized intelligent parameter set up on a full touch screen;

2) 9 sets of distinct packaging techniques and parameters can be stored, and specifications can easily be changed.

3) It is possible to set the interface display screen directly;

4) The procedure is very straightforward and convenient.

5) Realize man-machine communication, and the display screen may show the equipment's operational state at any time;

6) Frequency conversion speed regulation is more noticeable while using integrated communication mode.

7) The failure rate is minimized to a minimum by using fewer wiring methods.

8) Troubleshooting is easier and more intuitive.

Turntable drive:

1) 0-12 rpm adjustable frequency conversion speed on the turntable;

2) The turntable is driven by a chain, and the alignment is precise;

3) The turntable will automatically reset.

Membrane frame system:

To change the film tension, the film frame is an AC motor pre-stretching mechanism with frequency conversion speed regulation, and the pre-stretching can reach 250 percent.

The membrane frame structure uses integral welding technology and laser positioning cutting processing technology, which increases the membrane frame's strength and processing accuracy, improves its stability and reduces noise.

The stretched film is more consistent and translucent thanks to the unique rubber-coated rubber roller technology.

Frequency conversion can modify the film frame raising and lowering speed as well as the film feeding speed.

Separately, the number of windings on the top and bottom are controlled.

Simply pull the membrane system's follow-up mechanism;

Column mechanism:

Closed construction provides superior dust proofing and durability;

Installation is easier with a side-mounted film frame with a hinged attachment that allows the film frame to be utilized upright without the need to debug;
