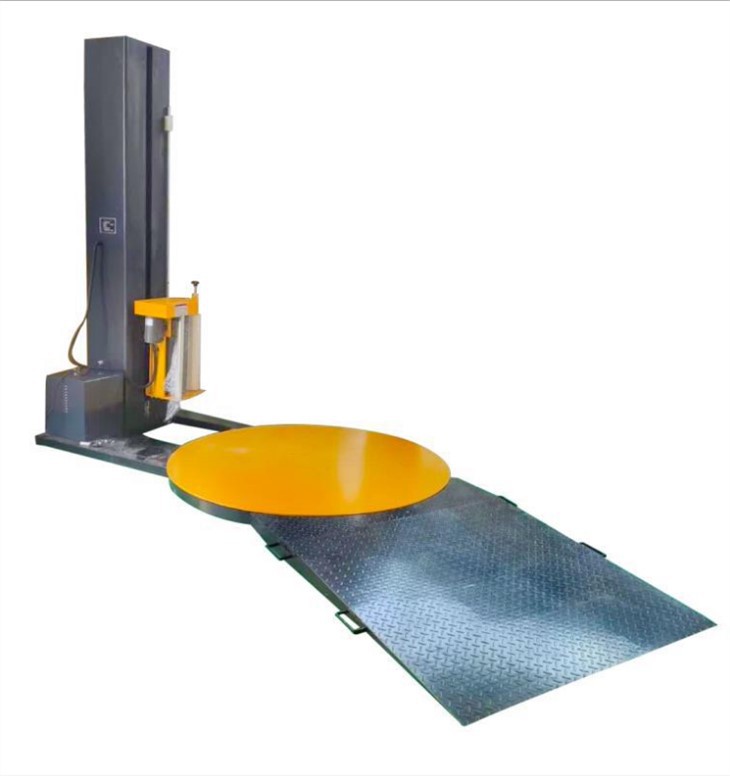

automatic pallet stretch film wrapper with loading ramp

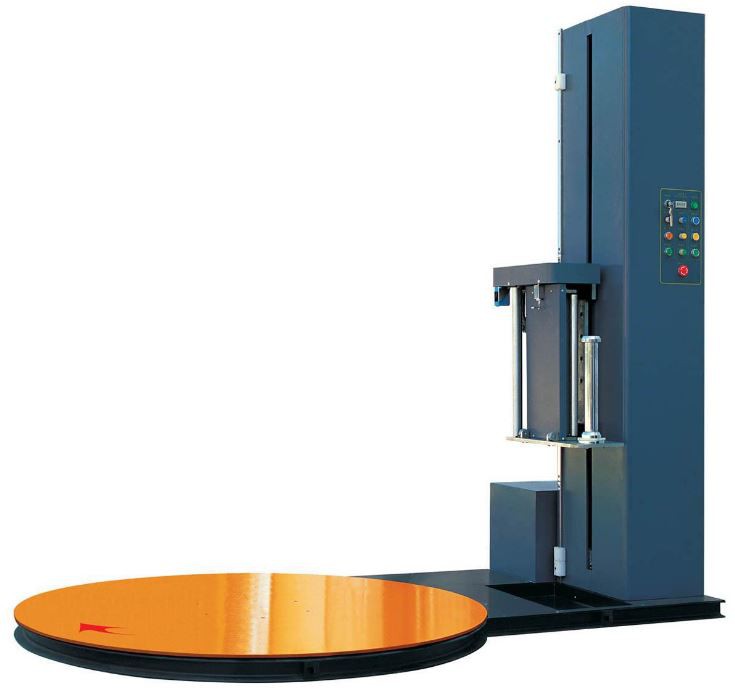

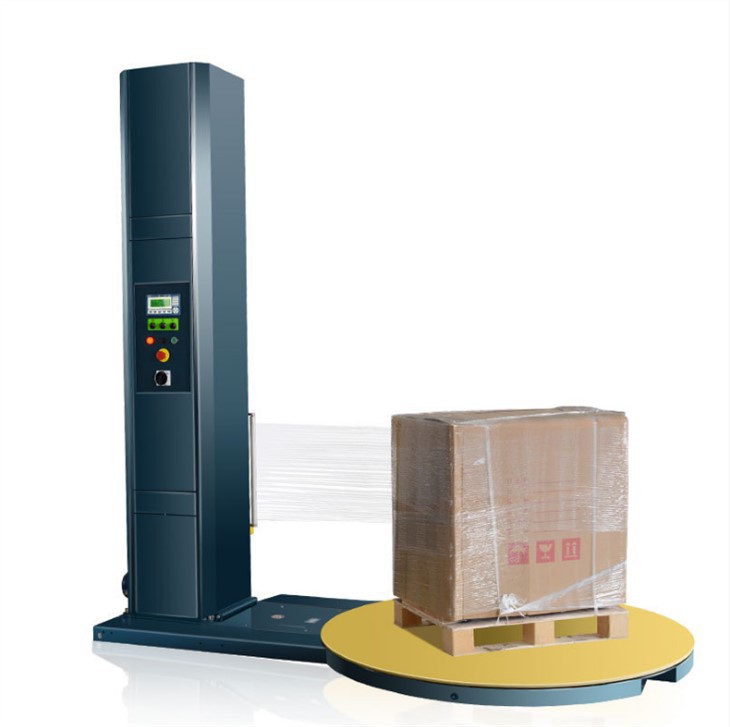

stretch film wrapping machine description:

Fully enclosed electrical cabinet prevents dust from entering and prolongs the service life of components

Protection grade IP54, in line with CE standards

Equipped with origin start and start on point functions, which can more flexibly adapt to customer packaging needs

The new film frame design combined with the unique encapsulation technology makes the stretching effect of the stretch film more uniform and translucent

The unique balance adjustment wheel design reduces the noise of the turntable to a lower level, is easier to maintain, and enhances the service life of the tug

Full-touch 7-inch large screen, humanized display is more intuitive and beautiful

The main technical parameters:

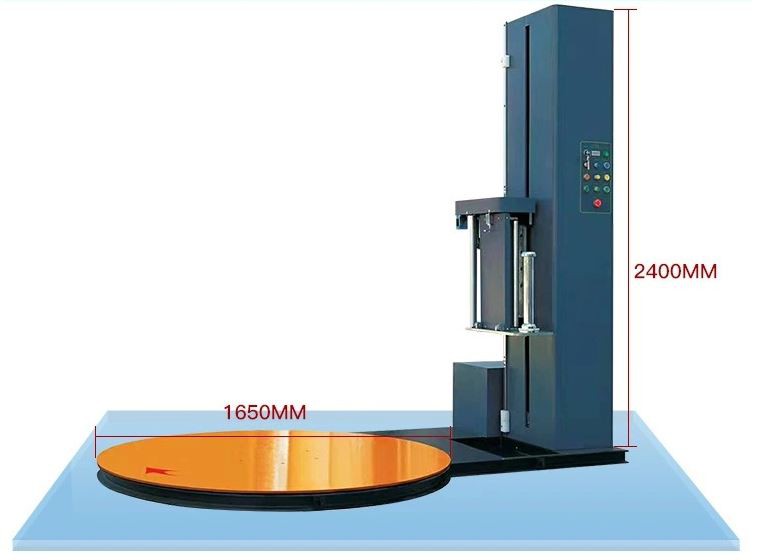

Diameter of turntable: φ1650mm

Packing height: 2400mm

Column height: 2700mm

Wrapping specifications: (600-1200)×(600-1200)mm (L×W)

Turntable height: 78mm

Turntable load: 2000kg (MAX)

Whole machine power: 1.5kw

Power supply voltage: single-phase 220V 60HZ

Turntable speed: 0~12 rpm

Packaging material: LLDPE stretch film

Thickness: 17~35μm

Width: 500mm

Inner core of film roll: 76.2mm

Maximum outer diameter of film roll: 240mm

Main performance: The whole machine motor, wires, chains and other dangerous devices are all built-in to ensure the safety of operators.

The new 360-arc column design has a simple and generous appearance.

PLC programmable control, optional winding program.

Multifunctional man-machine interface text control display system, real-time display of equipment operating status.

The German Pepperl+Fuchs photoelectric switch automatically senses the height of the goods.

The number of winding layers, running speed, and film tension can be adjusted arbitrarily, and the operation is convenient and simple.

The pre-stretching automatic film feeding system is controlled by independent frequency conversion, and the tension can be adjusted freely.

The number of winding turns on the top and bottom is separately controlled, 1-9 turns can be adjusted freely.

Automatic and manual switchable, almost no daily maintenance

Turntable drive:

The load-bearing design of the 5-point 58-tooth large gear minimizes the wear of vulnerable supporting wheels and reduces noise.

The frequency conversion speed regulation of the turntable is adjustable from 0 to 12 rpm/min.

The turntable starts slowly, stops slowly, and resets automatically.

The turntable is made of pure plastic steel with high wear resistance material, which has a longer life.

Thin film system:

Film frame power frequency conversion pre-stretching mechanism, pre-stretching can reach 250%, reducing film consumption.

The rising and falling speed of the film frame can be adjusted separately, and the nylon wheeled guide rail runs smoothly, which is light and durable.

The film feeding speed is adjustable by frequency conversion, and the stretching control is more precise, stable and convenient.

The number of windings on the top and bottom is controlled separately.

The film export system is an up-and-down follow-up mechanism, which is applicable to a wider range of films.

The membrane frame is a pure cast iron membrane frame, which is light and stable.

Wear-resistant rubber rollers are selected for long service life.

The lifting column is a chain structure, which is stable and reliable.

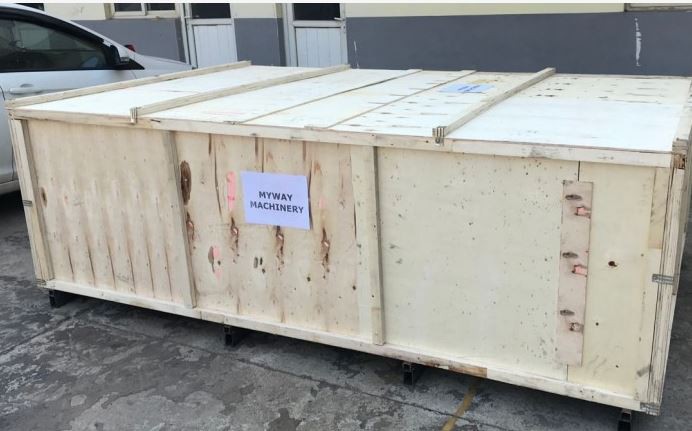

Stretch wrapper packing:
