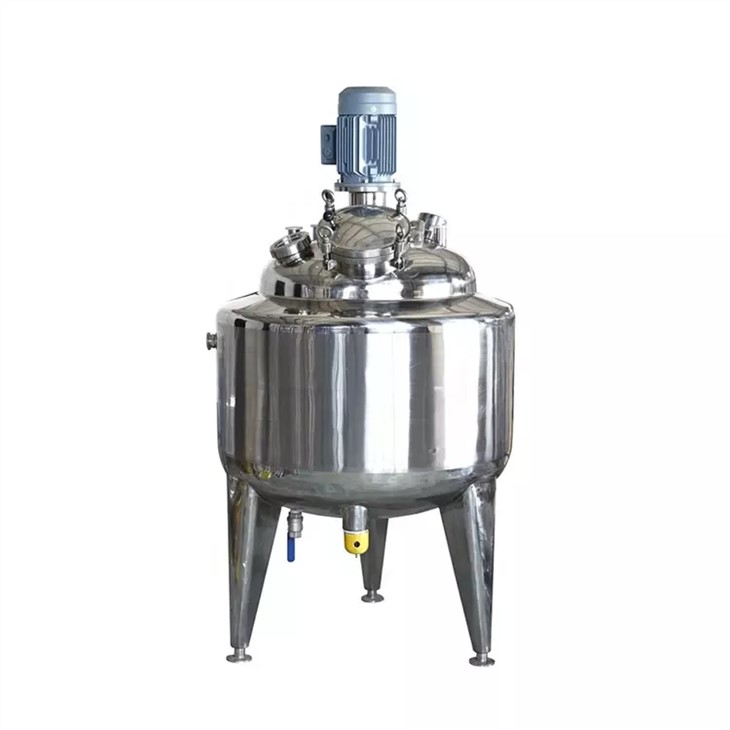

316 stainless steel liquid beverage ingredient detergent mixing tank

Stainless steel sanitary food industrial mixing tank

 stainless steel liquid beverage ingredient detergent mixing tank characteristics

1. Heating need for external, such as boiler and cooling device or other

2. And the material contact at the pot body and parts are made of oCr18Ni9 or 1Cr18Ni9Ti stainless steel plate

3. With less investment, fast operation, high efficiency

4. With heating, high temperature resistance, corrosion resistance, health, no pollution

5. The heat transfer effect is better than enamel reaction kettle, heating and cooling rate is rapid

6. The steam valve and the cooling valve can not start at the same time, the steam pipe is not allowed to hammer and collision

Material: SS304 / 316L;

Capacity: 50-5000L (customized is accepted);

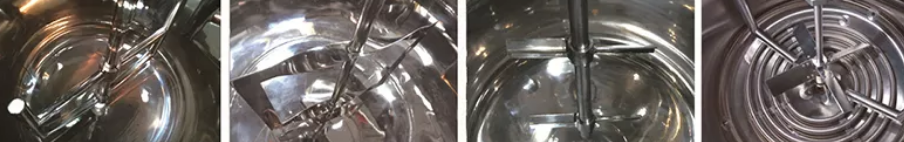

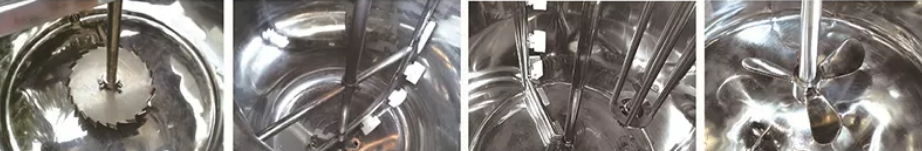

Configuration with agitator and/or homogenizer; （Customized is acceptance）

Jacket: single layer, double jacket, three-layer

Thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure);

Head: open cover, seal with manhole/handhole etc.;

Shape: cylinder or cone, conical /flat/elliptical bottom with discharge.

Heat Method: steam, electricity;

 stainless steel liquid beverage ingredient detergent mixing tank Application

It is widely used in dairy industry, food industry, pharmacy, chemical industry, beverage and other industrial sectors, as heating, cooling, heat preservation, anti-corrosive, strong production capacity, Cooling, insulation, sterilization treatment or storage of slurry must be stainless steel tanks, especially for pasteurization of milk and insulation, ice cream production line is the necessary equipment.

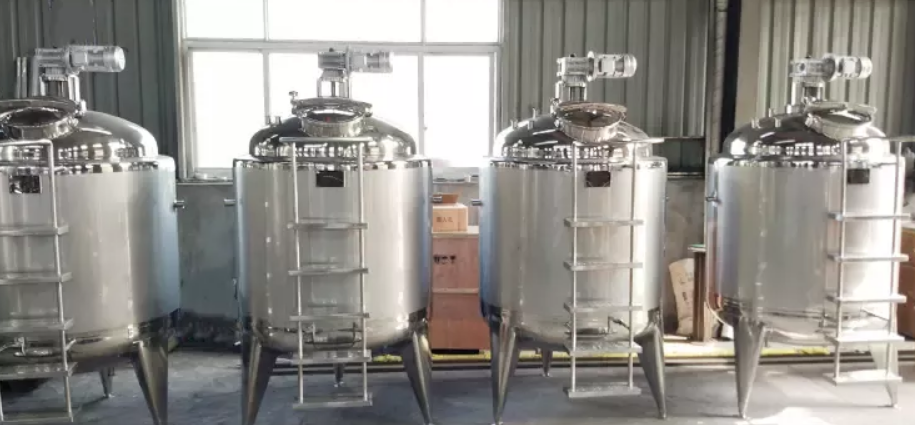

Mixing tank show:

 stainless steel liquid beverage ingredient detergent mixing tank Operation Principle:
The reaction kettle is usually called a reaction pot or a reaction pot, the heating principle is to put the reaction kettle into the boiler steam, the steam heat into the kettle, so that the heat of the material in the reactor steam heating reaction kettle, steam as heat source heat exchange. There are three kinds of steam heat exchange mode: jacket heat, coil heat, half coil heat exchanger. At present, the most popular advanced reaction kettle heat transfer technology is the technology of semi disc steam heat transfer, which overcomes the shortcomings of the traditional heat exchange technology, such as low thermal efficiency, large diameter of the kettle body, and reduce the thickness of the reaction kettle, save manufacturing costs
