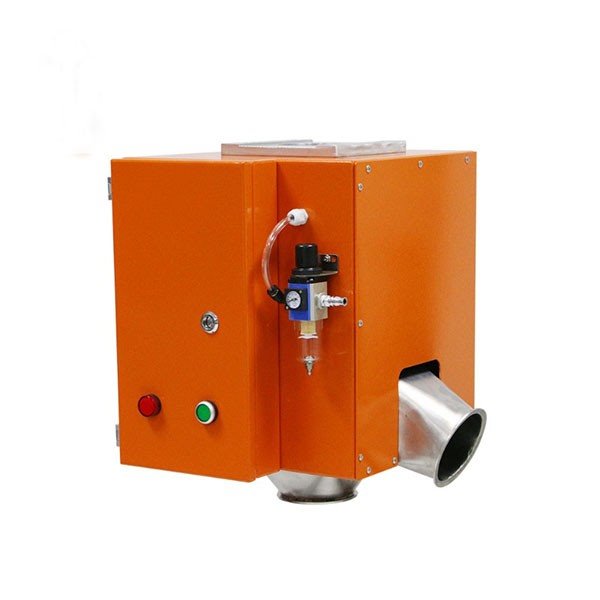

Fall type plastic metal separator for scraps, granuels

Specification:

★、Controller parameter

Part of controller: Self product

Ectro magnetic valve：Japan SMC

SMC(import)Gas filter：Japan SMC

Shell material：Lacquer plate or 304 steel

power：220VAC（+/-10%）（Voltage switch），50/60HZ
Input：80/160Ma Fuse： double 315Ma
Environment temperature：-10/60degree
Input terminals: test buttons, manual separation, reset, and compressed air monitoring.
Output terminals: counting, metal testing

★、Machine parameter

Pressure gas：4-8kg，6-8mmsoft tube connect

Gas consumption：0.4 liter once time

Separate time：0.2-2.5 second，0-10degree sensibility un-adjust

★、Device advantage
1.With long fiber products will not plug device

2.To avoid confusion and caking (light and thin products) sanitary design, rust proof and discharge device
3.That can avoid long time product accumulation and caking. It can be cleaned quickly and simply by cleaning thin slices

Fall type metal separator sensibility and capacity (This date is based on the material we tested is granuels, detailed results depend on your product )：

Material:

There are sus304, and iron lacquered.

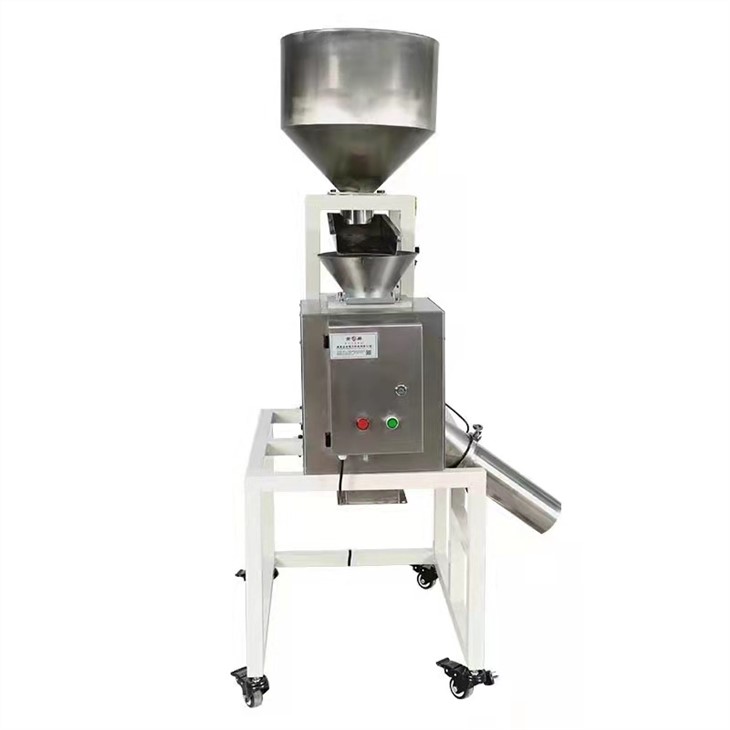

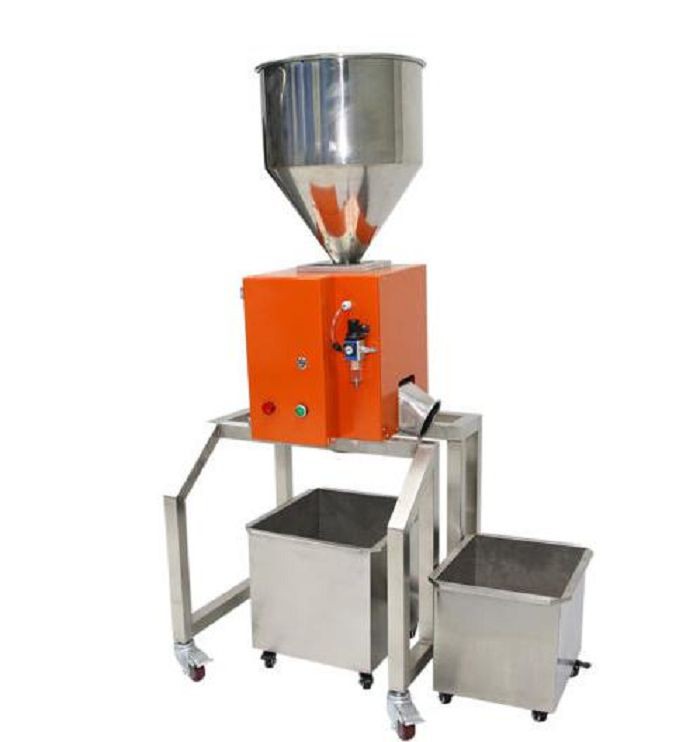

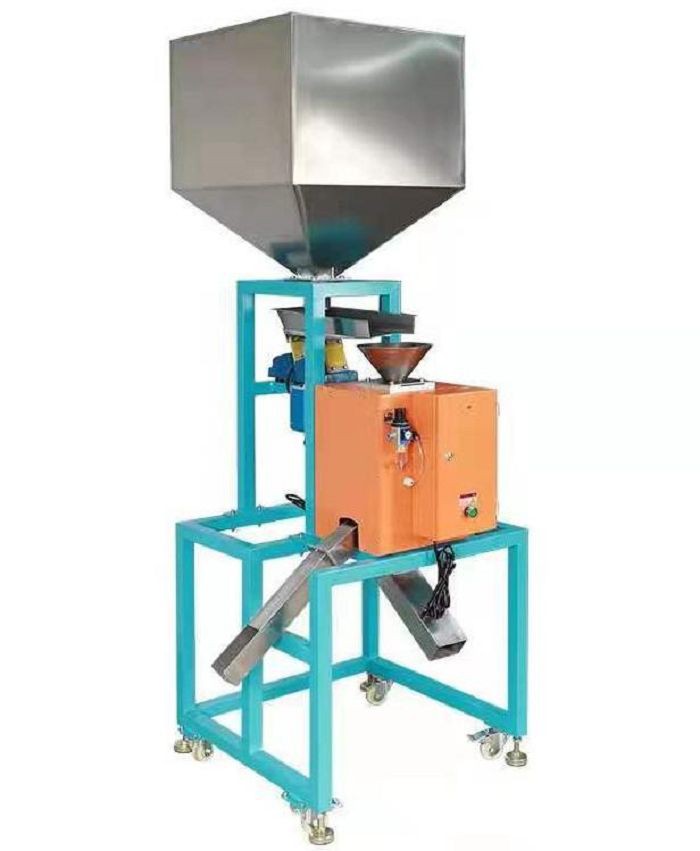

Metal separator with vibrator and feeder as following, so it won’t block.
