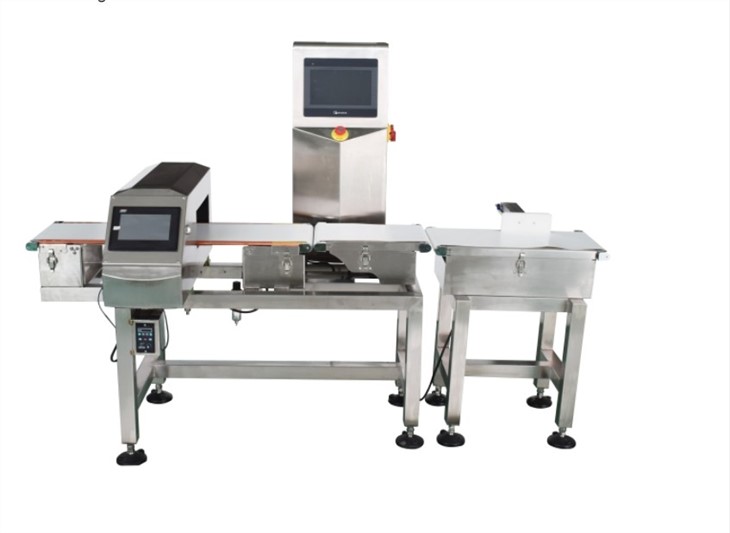

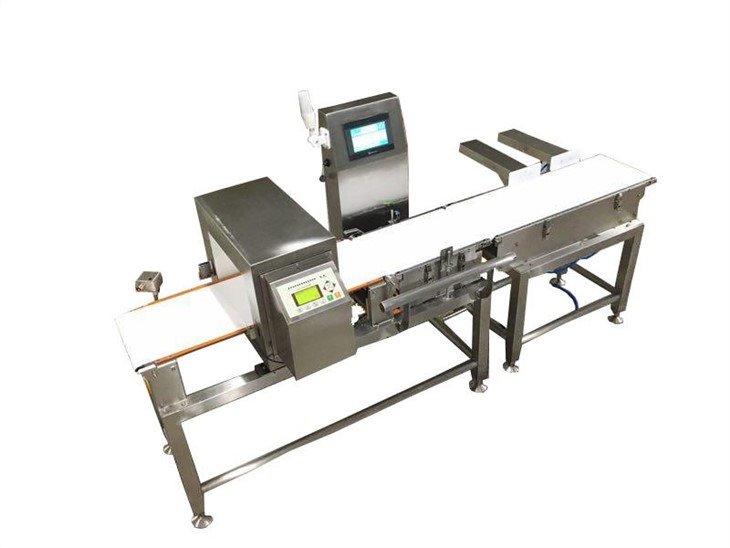

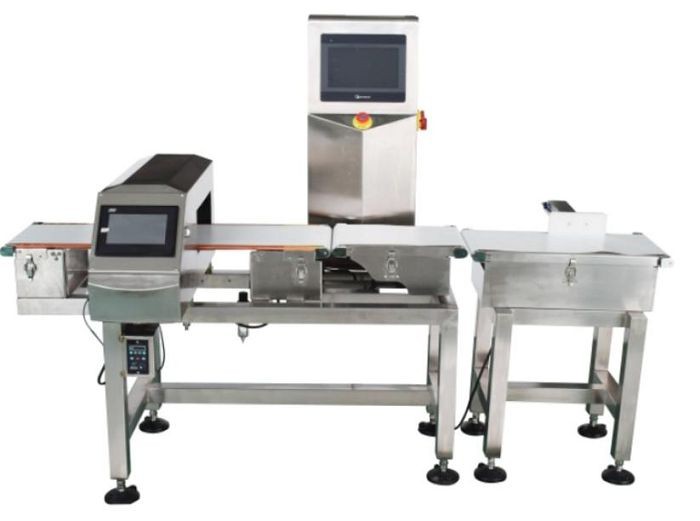

Combined food conveyor belt metal detector and checkweigher
Description:
HIGHEST ACCURACY WITH SMALLEST FOOTPRINT
Space and cost savings are obtained with integrated inspection solution, the combination checkweigher and metal detector system. In one system you can receive high accuracy weighing and metal detection. Best performance in the food and pharmaceutical industries.
PRODUCT INTRODUCE
The system can separator metal scraps from potential products .
Metal detector and check weigher work integrated
The rejection system can accurate reject one machine have the metal impurity
The metal detector have high sensitivity and stability to avoid wrong alarm
PROTECTION OF CONSUMERS AND BRAND REPUTATION
Our advanced, proven multi-frequency systems guarantee reliable metal detection – even when processing different products - plus the precision-performing checkweigher also ensures full compliance with regulations and legal requirements.
SAVING YOU SPACE, TIME AND MONEY
combination inspection solution is a compact system that fits perfectly into any production line. Only four feet are in contact with the ground, thereby guaranteeing improved floor accessibility for cleaning – a key quality feature in accordance with HACCP. The shared control console allows for product set-up parameters. Belt speeds and sorting equipment are automatically and jointly controlled, reducing manual workload by 50 per cent.
Food metal detector Parameters:
Voltage: 220V,50hz
Preset Number: 1-100 items
Operating temperature: 0℃~50℃

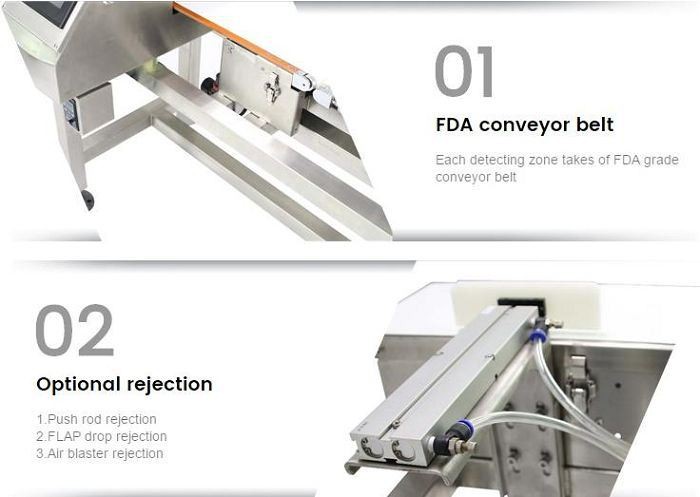

Standard reject system: Belt stop,audible alarm & lamp
Speed: adjustable
Flow direction: As required.
Whole conveyor length: 1400mm or as your required
Conveyor to ground height: 750mm or customized
Model | 3010 | 4010 | 4015 | 4020 | 5010 | 5025 | 6020 |
Belt width | 300 | 400 | 400 | 400 | 500 | 500 | 600 |
Passing width | 300 | 400 | 400 | 400 | 500 | 500 | 600 |
Passing height | 100 | 100 | 150 | 200 | 100 | 25 | 200 |
Sensitivity | Fe:0.8 | Fe:1.0 | Fe:1.0 | Fe:1.2 | Fe:1.5 | Fe:1.8 | Fe:2.0 |
SUS:1.5 | SUS:1.8 | SUS:2.0 | SUS:2.2 | SUS:2.0 | SUS:2.5 | SUS:2.8 |

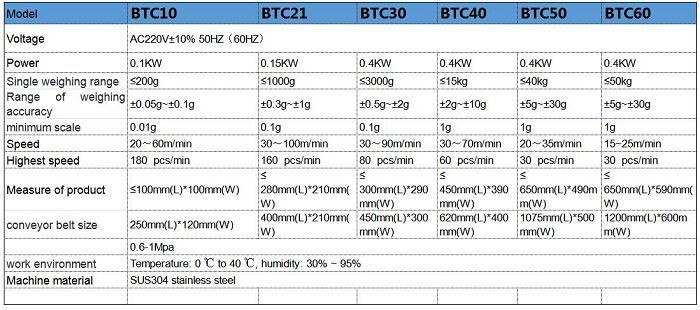

Checkweigher part parameter:
Conveyor belt metal detector with checkweigher application:
It can be used in food(meat, frozen meat, sea food, mushrooms, drinks ,fruits , sugar, salt and vegetables, snacks,spicy,etc), pharmaceutical, plastic, chemical, health products, cosmetics,textile, garment, hygienic products, electronics, renewable resources industry etc, applying to detect broken needles, iron wires, all kinds of metals (such as Ferrous,Copper,Brass, Aluminum,Stainless steel etc.) that mixed with products or raw materials.Our conveyor belt metal detector can be tested in bulk , bagged, bottled, boxed. Using metal detector can help relative corporations pass HACCP,GMP, QS, ISO9001 certificate. Also it is used to check whether the single pack weight is conformed to the preset weight, and the overweight and underweight products can be removed by various reject devices automatically.qualify bags will be passed to next equipment

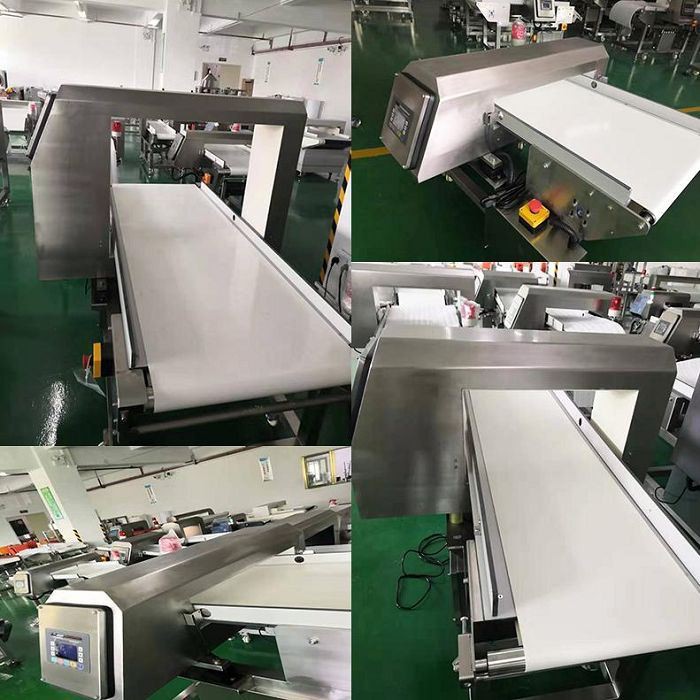

The tunnel can be customized according to your product size and weight.

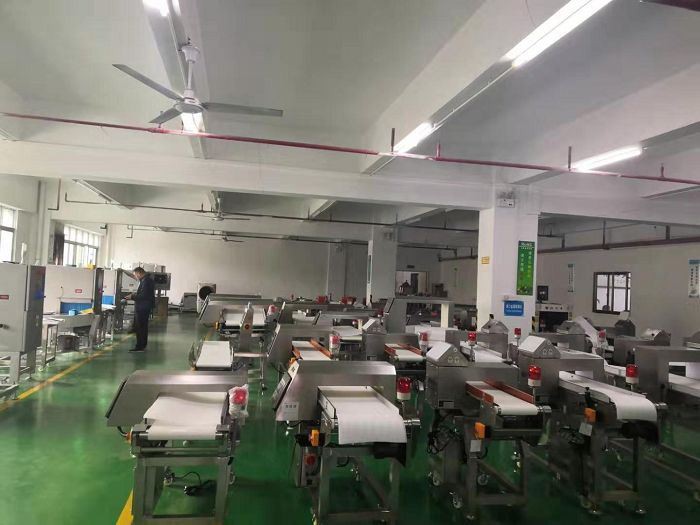

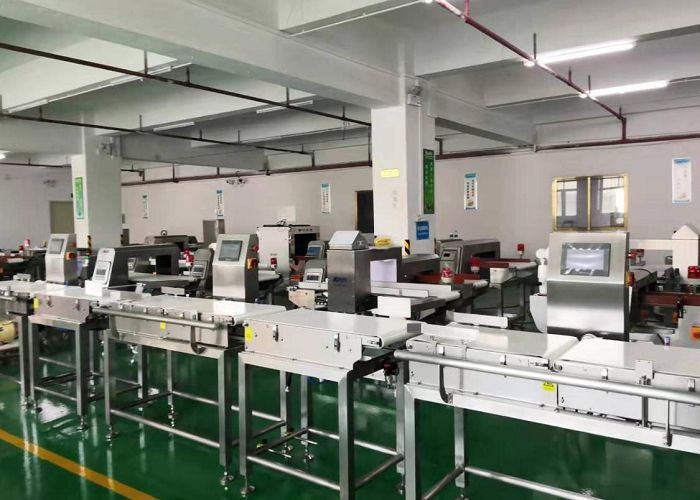

Food metal detector with checkweigher factory plant:
Exibition :
Package:
