Shoe Factory Assembly Line Needle Detector

Shoe Factory Assembly Line Needle Detector technical parameter

Detection width: 400mm

Detection height: 100mm 150mm 200mm

Testing standard: Feø≥0.8mm ≥1.2mm ≥1.5mm

Conveying speed: 25~30m/min

Power supply: 220V power: 100W

Weight: 150KG～180KG Volume: (L×W×H) 1330×920×467(mm)

Shoe Factory Assembly Line Needle Detector introduction:

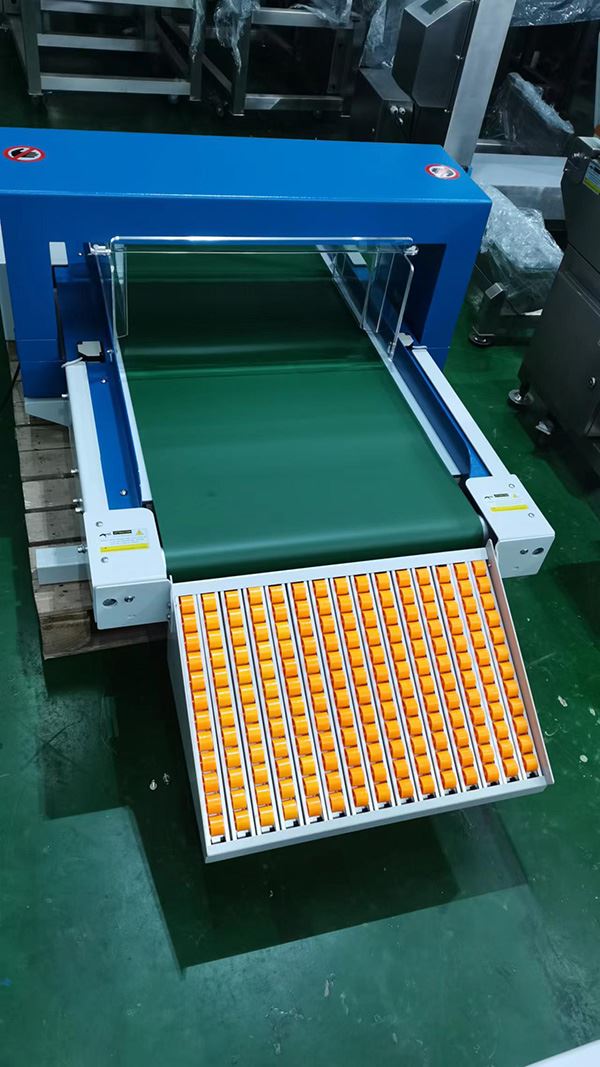

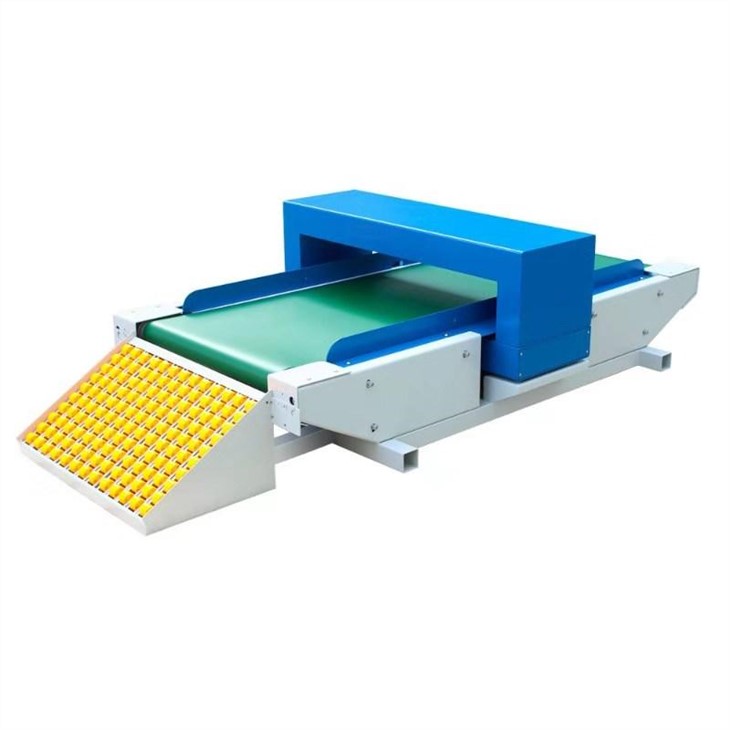

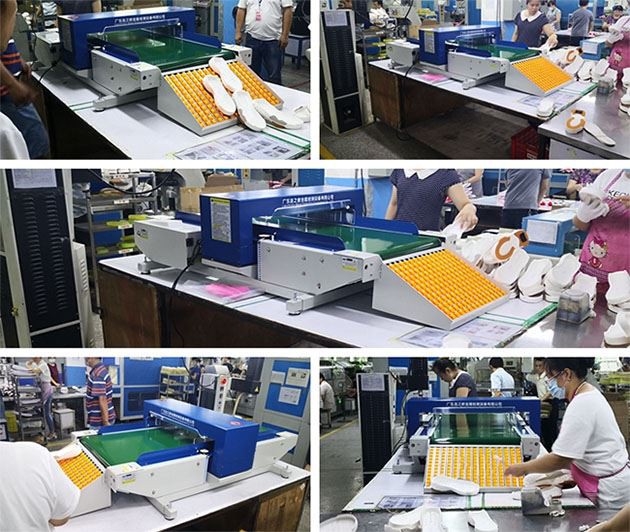

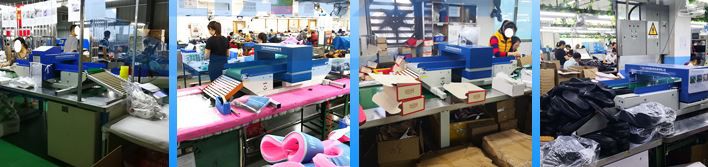

This is a conveyor belt-type needle detector specially designed and manufactured for shoes assembly line production. It can be directly placed on the assembly line for needle inspection and needle inspection operations. Needle detectors can be installed without the need to modify the assembly line, and there is no need to occupy the channel pendulum. Put the needle detector, save the use of space and save the time and efficiency of needle detection.

Shoe Factory Assembly Line Needle Detector Applicable places:

Check broken needles: shoes, women's clothing, men's clothing, school uniforms, work clothes, baby products, knitwear, underwear, socks, fabrics, non-woven fabrics, embroidery, towels, bath towels, gloves, toys, handicrafts and other export textiles Needle.

Needle inspection: metal buttons, metal zippers, Japanese buckles, bead chains, brooches and other metal accessories for clothing and handbags through the needle inspection machine.

Shoe Factory Assembly Line Needle Detector Features:

■ The fuselage adopts the electrostatic spraying process of the full square tube steel frame, the frame is stable, the floor is strong, the anti-interference performance is better, and the impact resistance is better. Compared with the traditional needle detector, the needle detector is made of angle iron and ABS plastic or aluminum alloy wings. Compared with the machine, it is more sturdy and durable;

■ Super anti-interference computer chip integrated circuit, dual-channel 24 sets of sufficient sensors, equivalent to the traditional dual-probe needle detector;

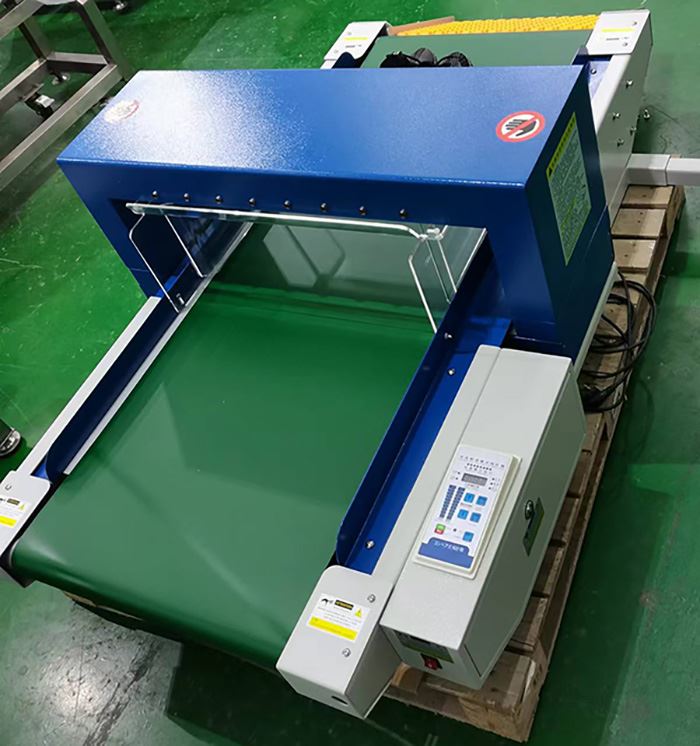

■ All function keys are light-touch membrane switches, avoiding the shortcomings of easy damage to mechanical keys;

■ There is a position display function, the six o'clock position shows the exact broken needle position function;

■ With counting function, distinguish good products and defective products (qualified, total, detected);

■ The alarm function includes three types: sound, light and shutdown. Sensitivity is adjustable from 1 to 10 levels;

■ Special protection circuit, automatically shut down if no object passes through within ten minutes;

■ All function settings are completed after turning on the main power supply and before starting the motor;

■ With B/C (accessories/finished products) mode switching function, adapt to the needle detection of different products;

■ When a broken needle or iron object is detected, it will alarm by sound and light, and it will stop and return to the starting point, and run automatically again;

■ High sensitivity, when the height of the detection gantry is 12cm, it can detect small iron filings with a diameter of 1.0mm, and the nine-point test method does not miss the detection.
