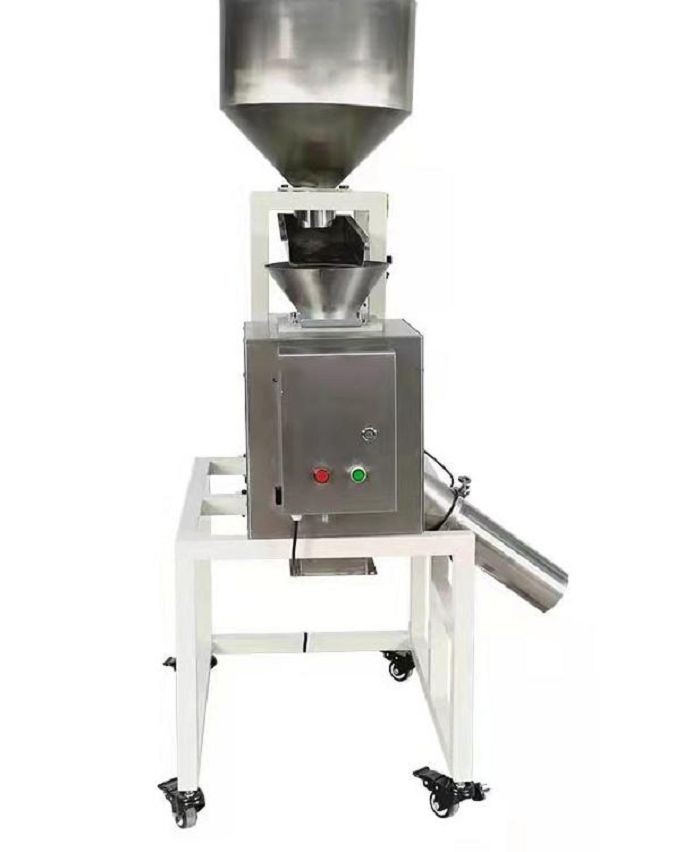

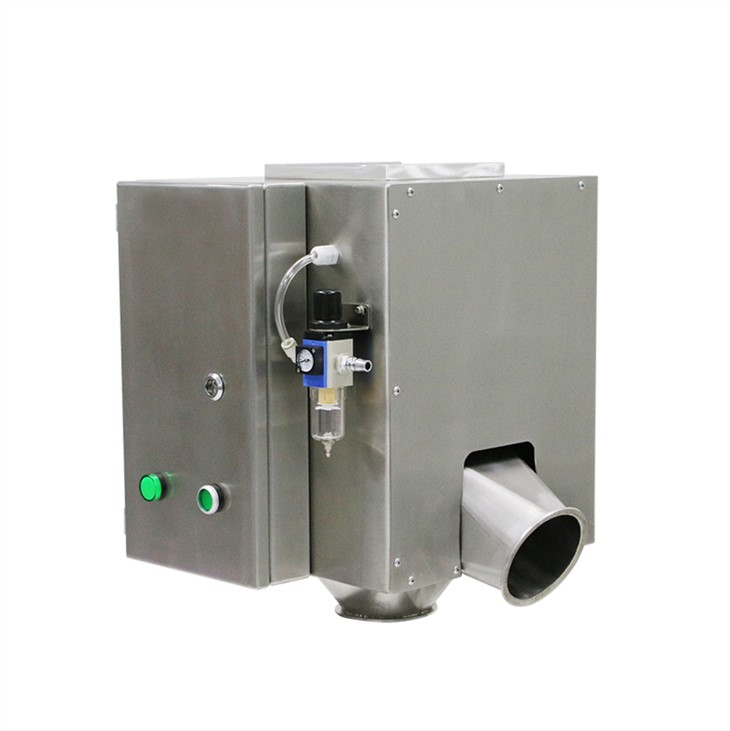

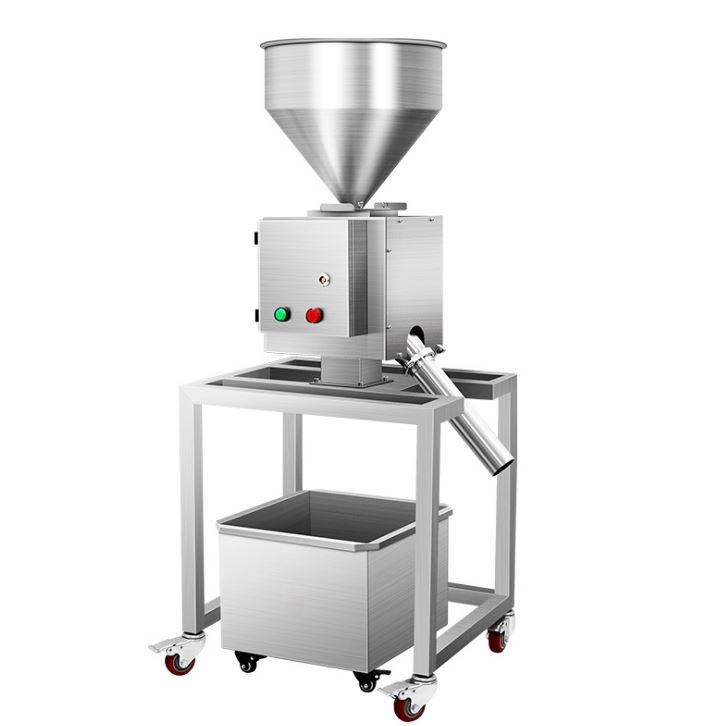

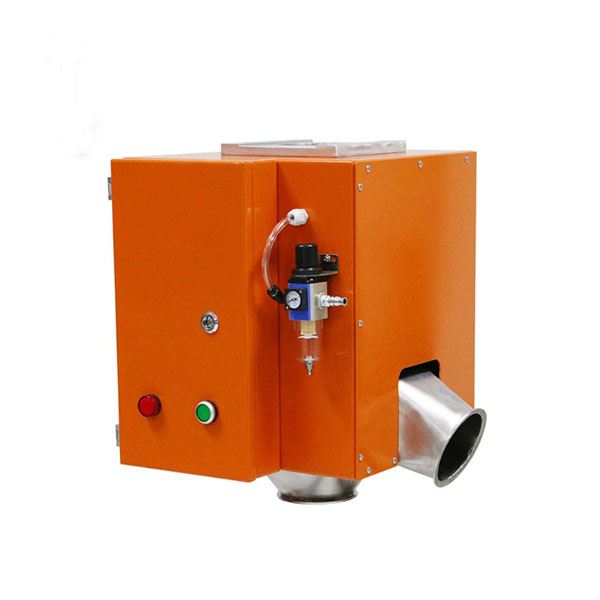

Gravity plastic metal separator

The plastic metal separator is widely used in recycled plastic granuels, plastic raw materials, the food industry, the pharmaceutical industry, and fine powder products for both drugs and capsules; seasonings, additives or powdered raw materials are tested before the next step is processed to protect subsequent equipment; herbs, tea, milk powder and The quality of fine powder products such as chemical additives is tested. And complete the separation process of metal and non-metal, mainly using the principle of electromagnetic conversion, when the current passes through the coil, a magnetic field is generated. According to the electromagnetic conversion theory, when a certain current passes through the fixed coil, a stable magnetic field is generated in the coil. Will be destroyed by changes in the external environment, mainly by metal objects, destroying the stability of the magnetic field. The change of the magnetic field will cause the circuit current to change, and a changed current will be obtained, and the changed current will be detected. arrive

Plastic metal separator benefits: protect production equipment, avoid machine damage, increase raw material utilization, improve product quality, reduce equipment maintenance costs and losses caused by downtime maintenance, enhance product safety factor, and improve enterprise product quality.

Specification:

Controller parameter

Part of controller: Self product

Ectro magnetic valve：Japan SMC

SMC(import)Gas filter：Japan SMC

Shell material：Lacquer plate or 304 steel

power：220VAC（+/-10%）（Voltage switch），50/60HZ
Input：80/160Ma

Fuse： double 315Ma
Environment temperature：-10/60degree
Input terminals: test buttons, manual separation, reset, and compressed air monitoring.
Output terminals: counting, metal testing

fall type plastic metal separatormetal detector suited for inspecting dry, free flowing products, such as, grains, flours, cereals, etc

sensibility and capacity (This date is based on the material we tested is granuels, detailed results depend on your product )：

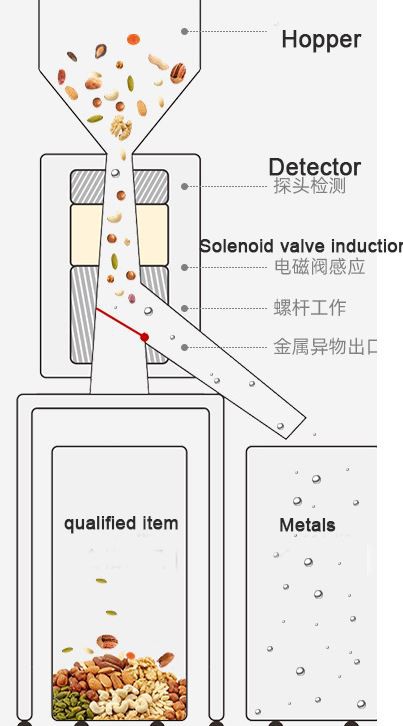

Plastic metal separator working principle:

Plastic metal separator application:

Material:

Different types, we have sus304, and iron lacquered.

Gravity plastic metal separator package:
