Pip 50mm/80mm Paste Jam juice Pipe line Metal Detection for paste application:
Pipe line Metal Detection parameters
Model | BTP-50 | BTP-65 | BTP-80 |
Pipeline outer diameter(mm) | 64 | 77 | 91 |
Pipeline inner diameter(mm) | 47 | 59 | 72 |
Sensitivity Fe (mm) | 0.8 | 1.0 | 1.2 |
Sensitivity Non-Fe(mm) | 1.2 | 1.5 | 2.0 |
Sensitivity SUS(mm) | 1.5 | 2.0 | 2.5 |
Alarm model | Sound and light alarm | ||
Rejector | When detecting metal, flap excludes automatically | ||
Pressure requirements | ≥1.6Mpa | ||
Screen | 4.3-inch touch screen, Chinese and English menus | ||
Environment | Temperature ：—10°~75℃ humidity less than 80%(avoid freezing,condensation) | ||
Diverter valve | Italian Fresci three-way pneumatic valve | pressure resistance 10 kg | valve body material 316 SUS | ||
Power supply | 220V，50~60Hz |
Tube Metal Detector:
【Characteristics】
1. Adopt dual-channel signal detection circuit combining technology, with high sensitivity and high anti-interference ability.
2. Adopt all-digital DSP programming design, LCD touch screen control, Chinese and English operation menu.
3. The signal processing is automatically calculated by the digital chip, which can quickly and automatically learn to obtain the best detection phase, and can store and memorize 99 kinds of products, which is stable and reliable.
4. It has the function of automatic learning of product effects, such as sugar-containing products, salt-containing foods, such as meat products, etc., will produce metal-like signals to the metal detector, this effect will affect the detection effect, this function can automatically reduce the product effect to achieve the best effect.
【Pipe line Metal detector Application】
Pipeline metal detector suitable for installation in any closed pipe system, fast clamp connection installation, such as paste and liquid product testing (juice, jam, chocolate, sausage, meat sauce, sauce, field, etc.), practically used in production lines The pipeline type gold inspection machine is available in a variety of pipe diameters. The Teflon food grade inner tube is resistant to high temperature and high pressure. It uses an intelligent learning system to automatically compensate for temperature. Product effects caused by changes in moisture and acid-base, effectively eliminated
Misreporting false positives. Efficient and precise rejection design, suitable for high-speed fluids, as well as the elimination of slow viscous materials, reducing material wear and tear.

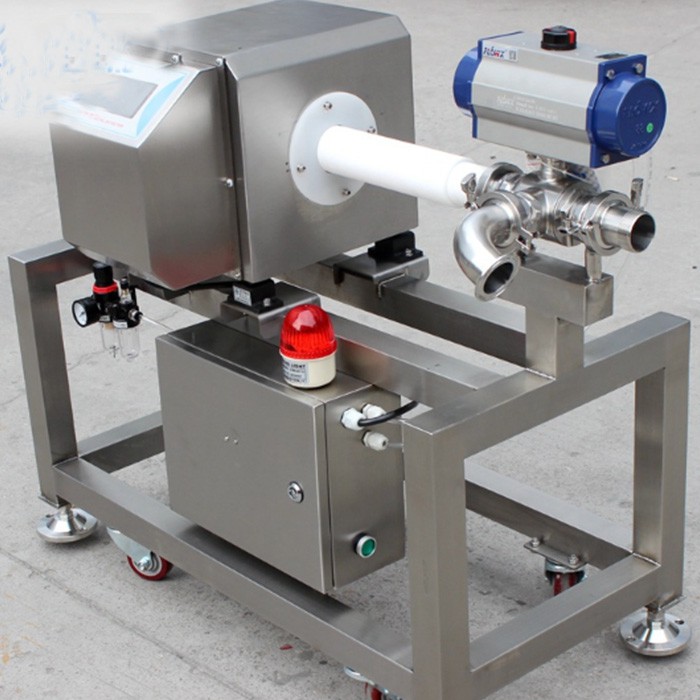

Jam juice Pipe line Metal Detection:

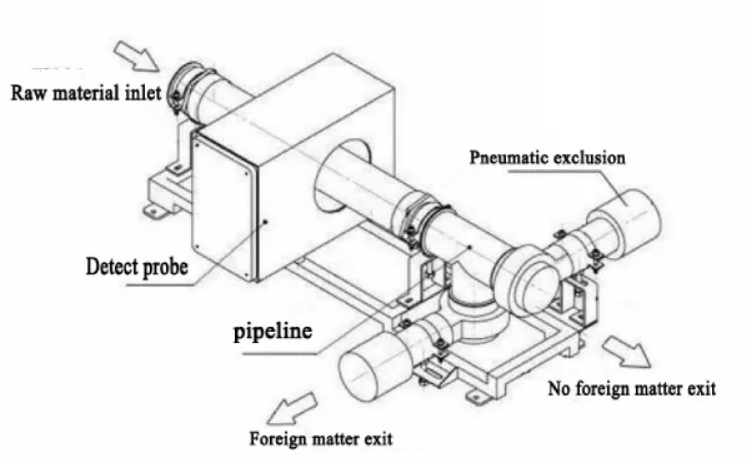

Tube metal detection:
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
After-sale service:
1.We will guarantee the machine quality for 2years.
2.We provide free training and answer customer's question on technology in time.
