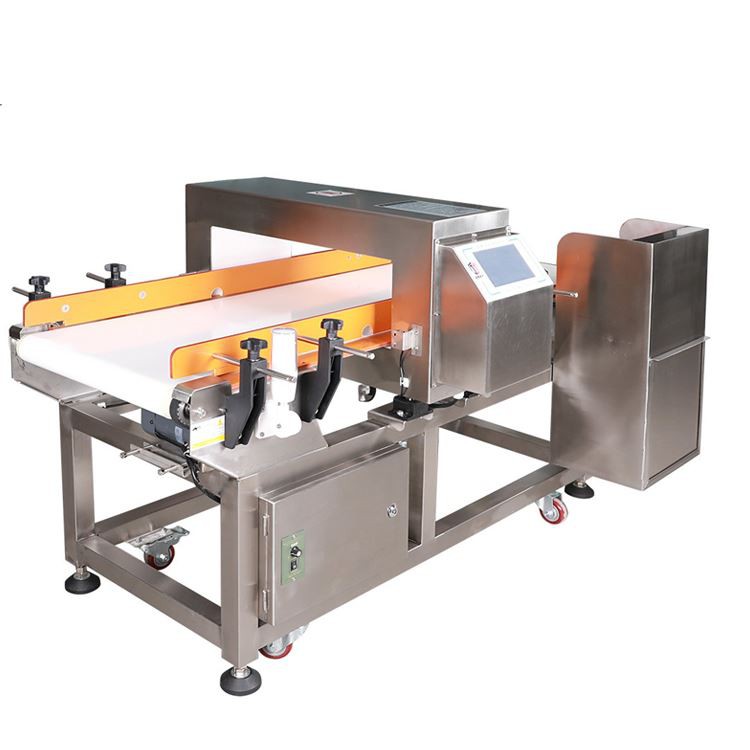

auto set industrial metal detector for food line:

Industrial metal detectors and metal detection systems can safely detect and reject metal contaminations from production lines to help manufacturers achieve compliance, minimize risk of product recalls and reduce production downtime. Metal detection systems are available for a range of food, non-food,pharmaceutical, plastic applications. Our portfolio includes tunnel and throat metal detectors, and gravity fall, pipeline, pharmaceutical and conveyor belt metal detection systems.

Industrial Metal Detector Technical parameters:

Detecting Tunnel Width:50mm* Height 20mm ( Customized)

Power supply: single phase, 220V, 50 HZ（standard） or as your required

Preset Number: 1-100 items

Operating temperature: 0℃~50℃

Standard reject system: Belt stop，sound and light alarm

Speed: 10-40m/min adjustable

Flow direction: usually from left to right

Whole conveyor length: 1500mm or customize

Conveyor to ground height: 750 +50mm or customized

Language: Chineses-English by default(Other languages customized)

Detecting Method :Electromagnetic Wave

Sensitivity: FeΦ0.8mm, CuΦ1.0mm, SusΦ1.8mm

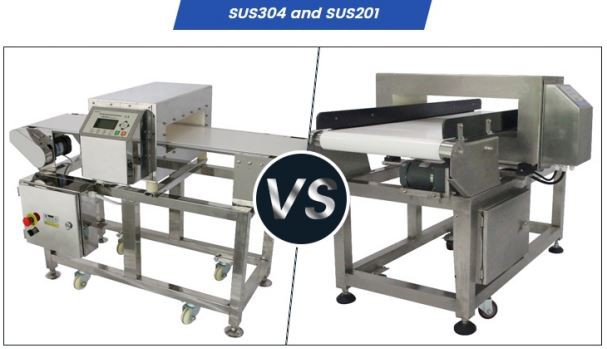

Construction Material :304 SUS ( 316 SUS available)

industrial metal detector parameters（tunnel can be customized according to your product size and weight.）

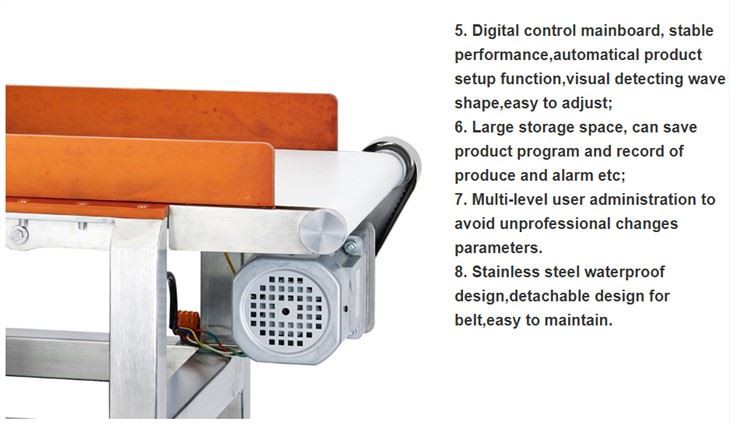

industrial metal detector Features:

1.High sensitivity with great reliable performance

2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.

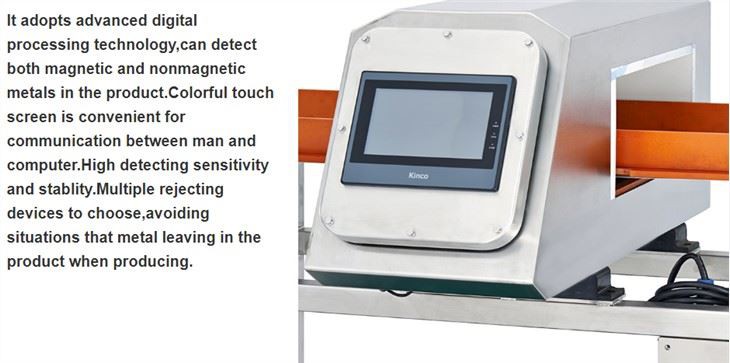

3. A combination of DSP and Microprocessor is applied to process testing data of detection signals, which can enhance detection efficiency.

4. Easy to set up the detecting parameters.

5. Easy Operation.Self- learning function, can automatically learn and save the product's memory. Simple and easy operation with a touch screen.

6. Efficient.An automatic flap rejection system can improve production efficiency and save labor costs.

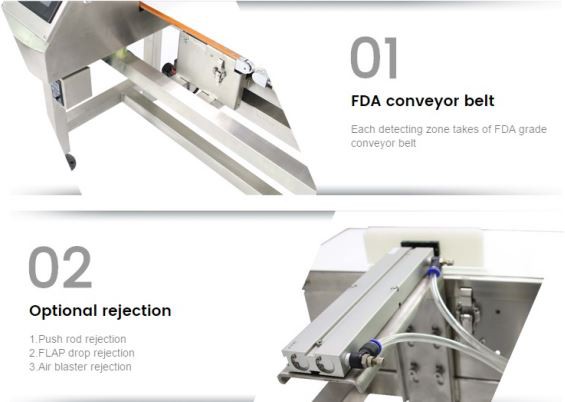

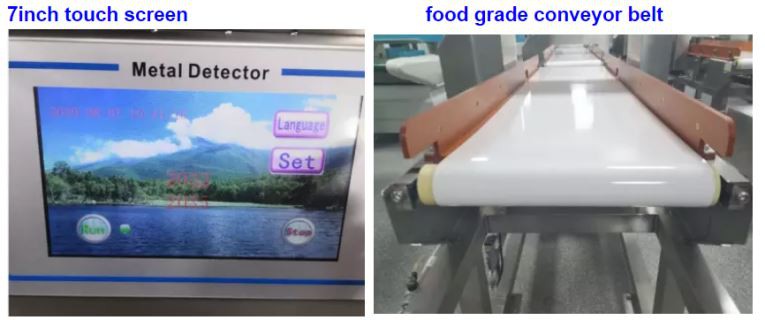

Touch screen, high quality, food grade conveyor belt.

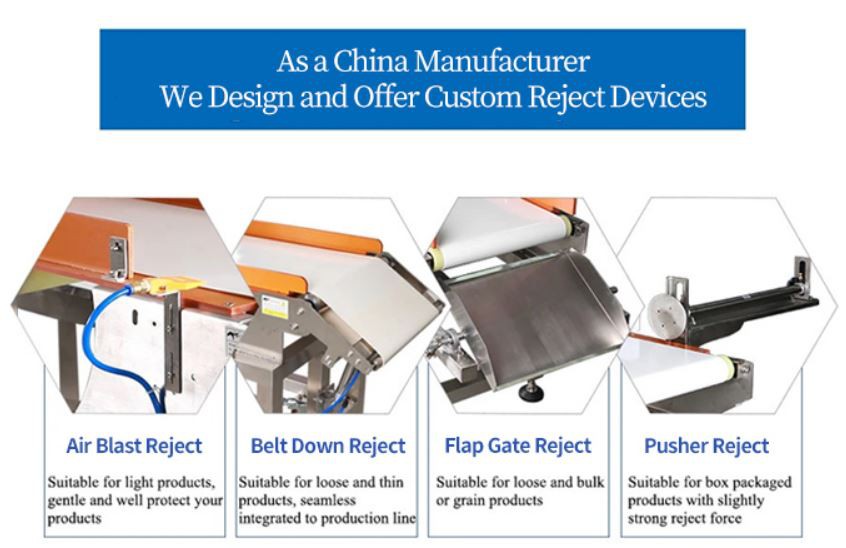

We can make different rejector devices on industrial metal detector according to your requirement.

metal detector application:

conveyor belt metal detector can be used in food(meat, frozen meat, sea food, mushrooms, drinks ,fruits , sugar, salt and vegetables, snacks,spicy,etc), pharmaceutical, plastic, chemical, health products, cosmetics,textile, garment, hygienic products, electronics, renewable resources industry etc, applying to detect broken needles, iron wires, all kinds of metals (such as Ferrous,Copper,Brass, Aluminum,Stainless steel etc.) that mixed with products or raw materials.Our conveyor belt metal detector can be tested in bulk , bagged, bottled, boxed. Using metal detector can help relative corporations pass HACCP,GMP, QS, ISO9001 certificate.

Why choose us:

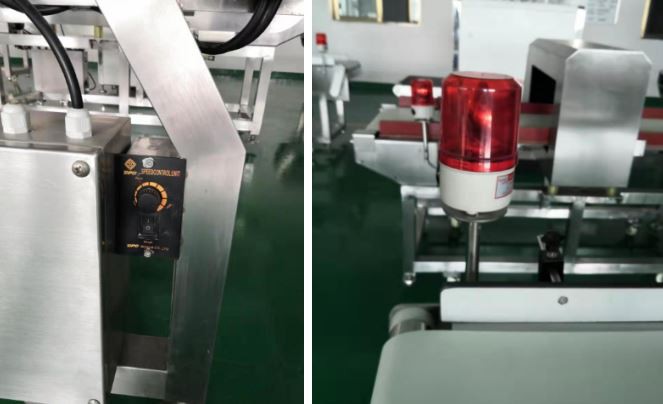

3.Speed controler, the speed is adjustable.

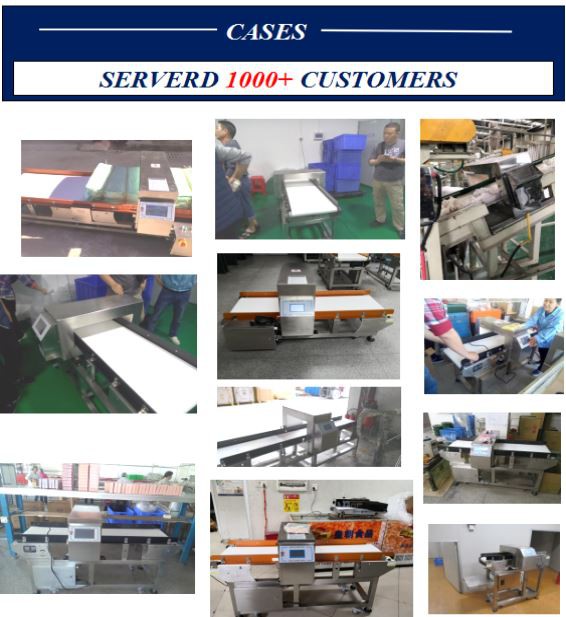

Cases, we served over 1000 customers:

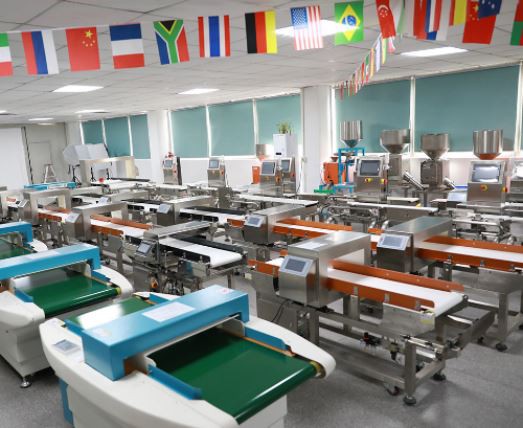

metal detector exibiton room:

Certifacate:

Our team:

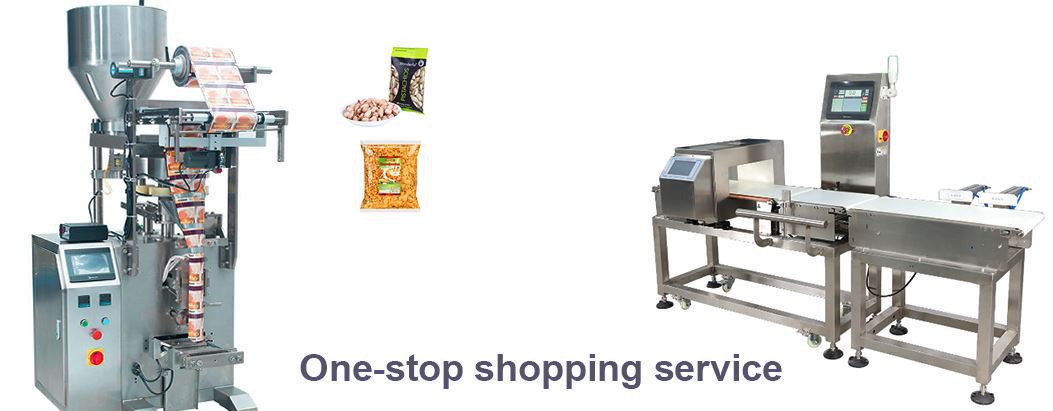

We also manufacture the vertical packing machine, flow packing machine, checkweigher to connect conveyor belt metal detector, you can buy machines in one stop, save time, and more discount.

Package and shipping :

firtly, transparent film wrapping, the foot fix, standard export wooden cases.

Our Services

Pre-sales service:

1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.

2.We will fist check customer’s goods and goods size, then we will recommend suitable to 100% suitable.

3.We will recommend and offer machine according to customer’s use and purchase budget.

In-sale service:

1.We will supply each manufacturing step photo for customer checking on time.

2.We will prepare packing and shipment according to customer’s needing in advance.

3.Testing the machine and making video for customer’s checking.

After-sale service:

1.We will guarantee the machine quality for 1years.

2.We provide free training and answer customer's question on technology in time.

Why the product passes industrial metal detection head, it alrms even if there is no metals? Now bestar give you some points.

1. The product passes the detection head and there is alarm even if there is no metal impurities, indicating that the detection parameters are not adjusted properly

2. Check whether the product has been debugged. If the detection product doesn’t set, you need to re-adjust the detection parameters.

How we do if the industrial metal detection has no sensitivity?

1) Check whether there are large metal foreign objects in the hole of the probe head, such as coins, keys, screws, etc., and exclude metal impurities.

2) Whether the product selection is correct.

3) Whether it is selected in the NG prohibited state. In this state, the instrument will not perform any alarm or elimination action when detecting any metal, but the signal indicator will indicate.

4) If the above conditions are eliminated and the instrument still has no detection sensitivity, please call our company.
