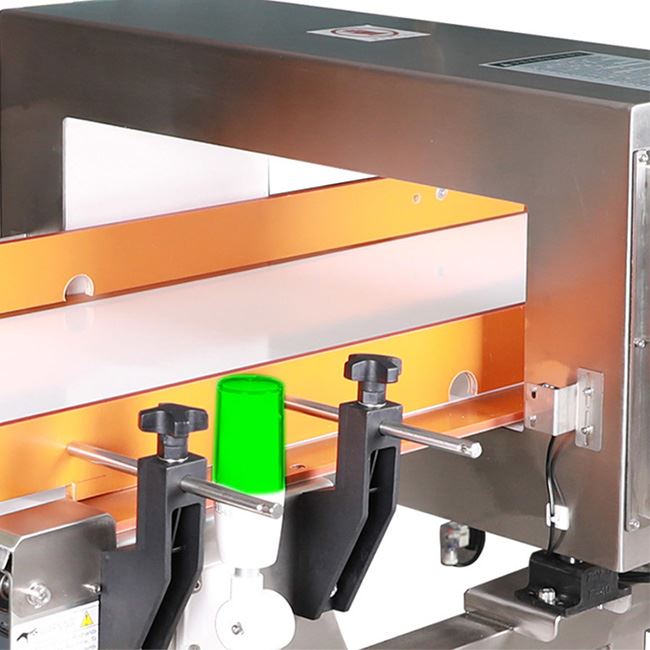

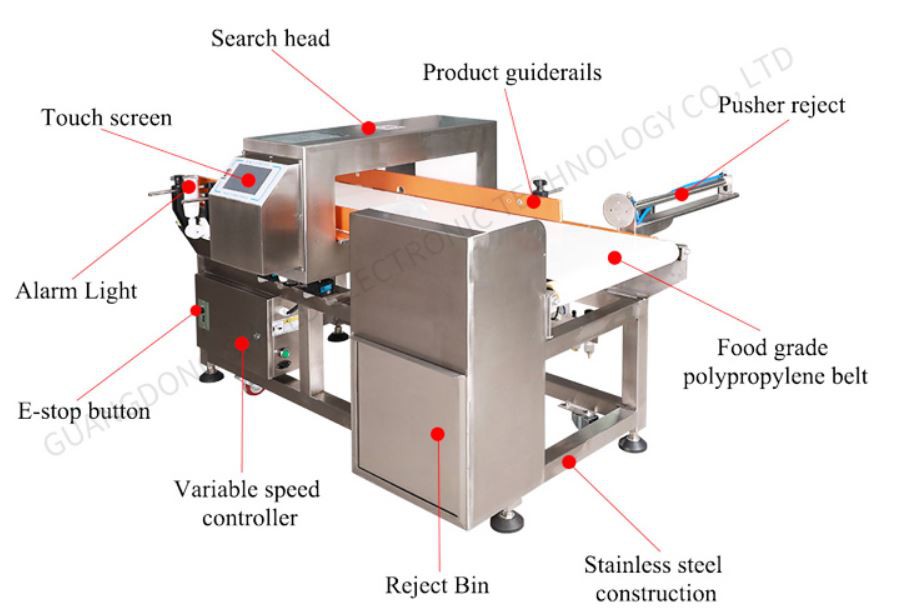

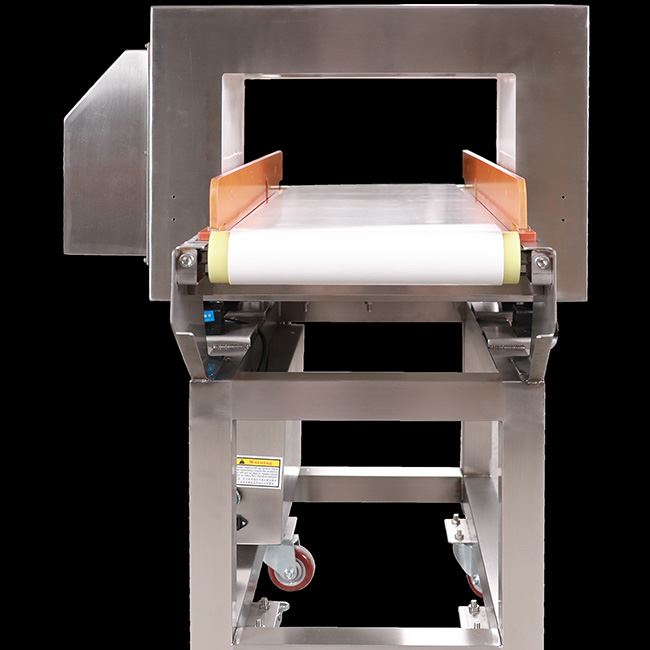

Tunnel metal detector

Tunnel metal detector parameters:

Power supply: single phase, 220V, 50 HZ（standard） or as your required

Preset Number: 1-100 items

Operating temperature: 0℃~50℃

Standard reject system: Belt stop，audible alarm & lamp

Speed:  20m-40m/min adjustable

Flow direction:  As required.

Whole conveyor length: 1500mm or customize

Conveyor to ground height: 750mm +50mm or customize

we can make customize the tunnel size.

Tunnel metal detector Features:

1.Digital signal processing, stable signal, not easy to receive external interference and cause false alarms.

2.All metal detection, copper, iron, aluminum, tin, stainless steel and other metals ** detection.

3.Effectively suppress the "product effect", suitable for all types of food testing.

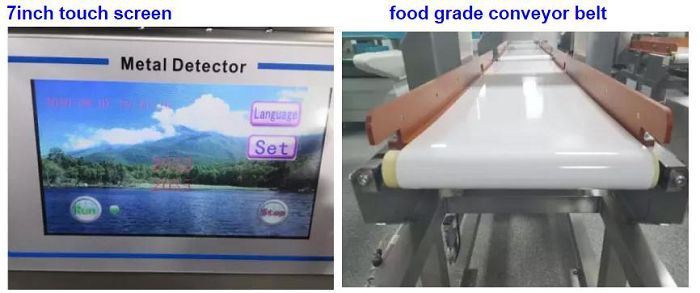

4.The LCD screen displays touch switches, Chinese and English menu screens, easy to realize man-machine dialogue operation.

5.Automatic setting of detection parameters, suitable for flexible detection of various items.

6.Excellent material: made of 304 stainless steel, waterproof, moisture-proof, anti-corrosion, and easy to clean.

Tunnel metal detector application:

conveyor belt metal detector can be used in food(meat, frozen meat, sea food, mushrooms, drinks ,fruits , sugar, salt and vegetables, snacks,spicy,etc), pharmaceutical, plastic, chemical, health products, cosmetics,textile, garment, hygienic products, electronics, renewable resources industry etc, applying to detect broken needles, iron wires, all kinds of metals (such as Ferrous,Copper,Brass, Aluminum,Stainless steel etc.) that mixed with products or raw materials.

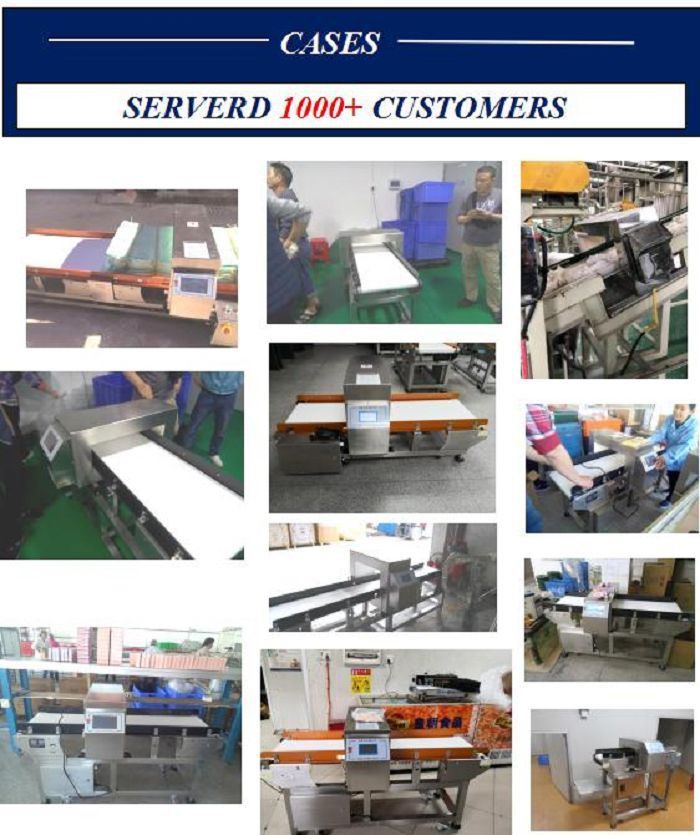

Our tunnel metal detector Cases, we served over 1000 customers:

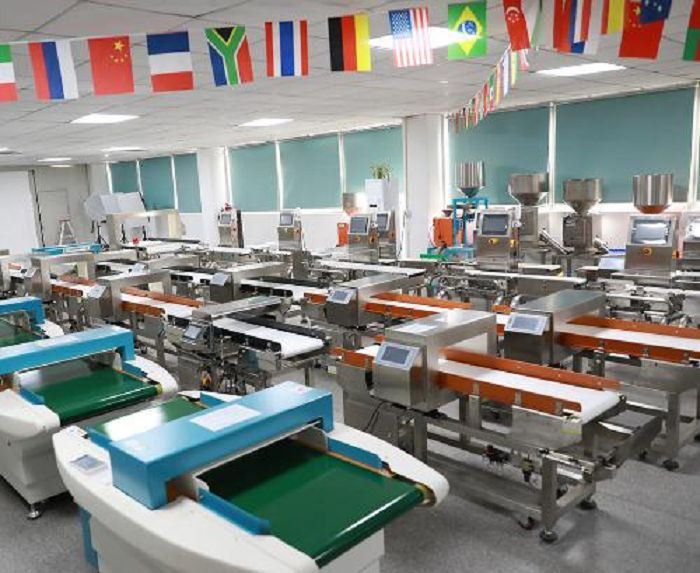

Tunnel metal detector exibition room:

Package:

Packaging: standard export wooden cases.

More introduction of tunnel metal detector:

The alternating magnetic field induces a signal in the detection coils, but since these coils are connected in opposite directions, the two signals are subtracted from each other. When the synthesized signal is zero, the probe is in equilibrium. Since metal is magnetic and conductive, when a metal object passes through the detection area, it will interfere with the original alternating magnetic field. Ferromagnetic materials will locally strengthen the original alternating magnetic field, and non-ferromagnetic materials will locally weaken the original alternating magnetic field. magnetic field. The receiving coil adopts a differential design, when no external metal passes through, its output is in a balanced state;

What's your MOQ?

For final user, the MOQ is 1 set. for distributor, the MOQ is 2 sets.

What's your lead time?

The production time is about 15 days. We will make stocks for some tunnel size. Welcome to ask.

What's your warranty?

1 years, and all life for maintance.
