Metal detection in food packaging
Machine Grade | Food Grade |
Detecting width | 300,400, 500 mm (can be customized) |
Detecting height | 80, 100, 120, 150, 200, 250, 300, 350 mm (can be customized) |
Detecting sensitivity | Fe 0.8mm-3.0mm, Non-Fe 1.2mm- 4.0mm Stainless Steel 1.5mm- 5.0mm |

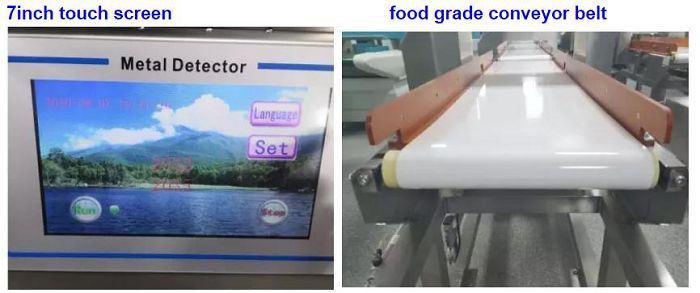

Display Screen | 4.3inch, 7inch (optional) |
Sensitivity adjustment | 100 level adjustment |
Detecting adjustment | Intelligent adjustable |
Belt Speed | 20m /min (or specified) |
Alarm mode | The buzzer alarm, the motor automatically stop |
Power | AC22V,50Hz (Or Customized) |

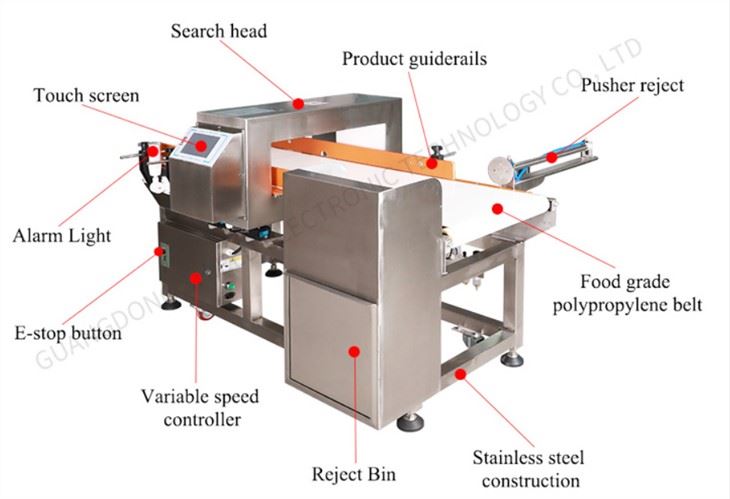

Metal detection in food packaging features:
1. Sensitivity: adjustable sensitivity degreeFeatures:
2. All stainless steel SUS304 manufacturing, high-grade protective motor to choose from;
3.Precision:when a trace amount of metal is detected, the sound, light, and meter are simultaneously alarmed, and the machine stops or kicks out the unqualified product.
4.Double-circuit electromagnetic wave detection, the combination of new analog circuits and digital circuits, greatly improves product reliability and intelligence.
5. Auto parameter setting by intelligent product learning.
Metal detection in food packaging parameters（tunnel can be customized according to your product size and weight.）
Model | 3010 | 4010 | 4015 | 4020 | 5010 | 5025 | 6020 |
Belt width | 300 | 400 | 400 | 400 | 500 | 500 | 600 |
Passing width | 300 | 400 | 400 | 400 | 500 | 500 | 600 |
Passing height | 100 | 100 | 150 | 200 | 100 | 25 | 200 |
Sensitivity | Fe:0.8 | Fe:1.0 | Fe:1.0 | Fe:1.2 | Fe:1.5 | Fe:1.8 | Fe:2.0 |
SUS:1.5 | SUS:1.8 | SUS:2.0 | SUS:2.2 | SUS:2.0 | SUS:2.5 | SUS:2.8 |
Metal detection in food packaging application:
It is mainly used for detecting the metal chips inside the nuts, rice, tea and wood processing industry etc. Besides it can also be used for the detection of metallic impurities in chemicals, rubber, plastics, textiles, leather, chemical fiber, toys as well as for the detection of metallic impurities in pharmaceuticals, health products, biological products, cosmetics, gifts, packaging, papers, and so on.
Why choose us:
Cases, we served over 1000 customers:

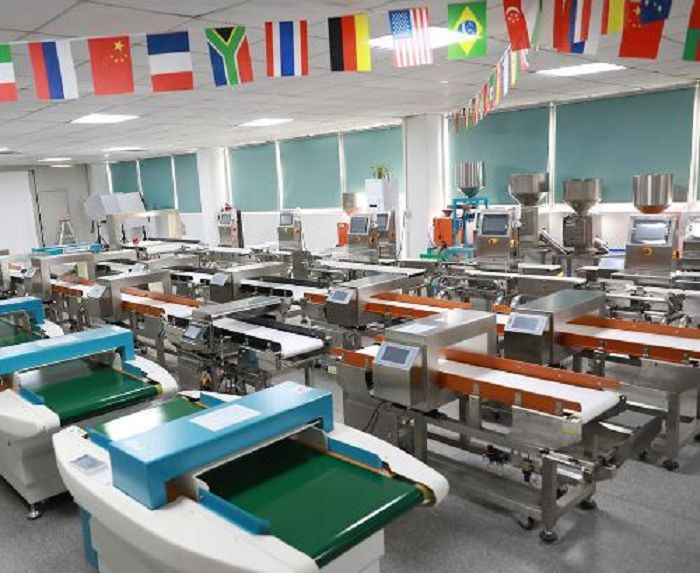

Metal detection in food packaging factory exibiton room:
Package:
Packaging: standard export wooden cases.
Metal detection in food packaging FAQ:
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
