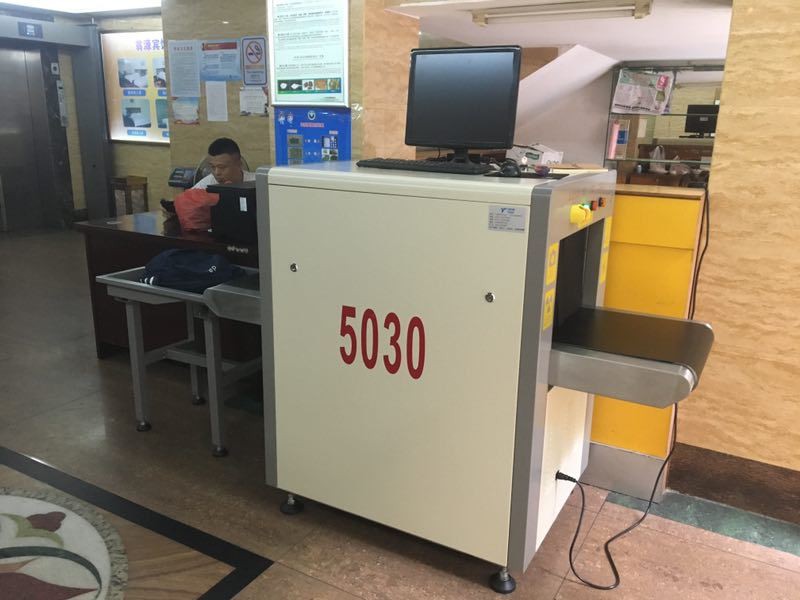

5030 X-ray baggage scanner for hotles

The 5030A channel X-ray machine is a single-energy X-ray inspection equipment independently developed by our company. It is designed for government agencies, courts, procuratorates, prisons, embassies, factories, schools, hospitals, stadiums, exhibition halls, entertainment venues, especially for Security checks for briefcases, parcels, express mail, carry-on luggage and small parcels.

Features:

★ International level: The performance indicators of the products have reached the international first-class level. The penetrating power and resolution of the products are the best in the industry. The ultra-clear image processing system is comparable to the world's top products.

★ Stable and reliable: The product can guarantee continuous operation for 10,000 hours without failure. Each machine passes strict high and low temperature, damp heat and vibration test before leaving the factory.

★Energy saving and environmental protection: The product has intelligent sensing function. The baggage is put on the conveyor belt machine to run automatically. When there is no baggage, it enters the static standby state. (optional)

★Real parameters: The performance parameters of the product in actual use are completely consistent with the test report issued by the Ministry of Public Security, and the test report results are more authentic.

★ Boutique accessories: The main accessories of the products are all well-known brands at home and abroad.

5030 X-ray baggage scanner for hotles Technical indicators:

Basic parameters

Channel size 500 mm (width) × 300 (height) mm

Conveyor speed 0.22m/s

Conveyor belt rated load 150 kg

Penetration 8mm steel plate

Line resolution: Φ0.127mm wire

Penetration resolution: Φ0.511mm wire

Spatial resolution: horizontal: Φ1.3mm, vertical: Φ1.3mm

Pass rate: 720 / h

Noise: 60 dB(A)

Radiation safety

Single dose: 2.89μGy

Leakage radiation dose rate: 0.18μGy / h (any distance 5cm from the outer surface of the device, in line with domestic and international health and safety standards)

Film Safety For ISO1600 Film Safety

X-ray generator

Ray beam direction

Cooling / duty cycle sealed oil cooling / 100%

System functions

Image processing functions: image enhancement; magnifying glass; brightening/darkening; image pullback/pretensioning; image storage.

Other functions: date/time display; baggage count; user management; system work timing; beam output timing; power-on self-test; image storage and retrieval; maintenance diagnosis; two-way scanning; image recognition training.

Use environment

Operating temperature / humidity 0 ° C ~ 45 ° C / 5% ~ 95% (non-condensing)

Storage temperature / humidity -40 ° C ~ 70 ° C / 5% ~ 95% (non-condensing)

Working voltage 220VAC (±10%) 50±3HZ

Power loss 1KW
