6550 X ray luggage Scanner for station

Features: X-ray penetration inspection; using progressive scanning method, high resolution, making the image stable and clear, can quickly assist the inspectors to detect small metal items, lighter flammable and explosive items for inspection. The device is small in size, light in weight, low in power consumption, and has a self-diagnosis function, which is easy to operate and maintain.

Test objects: small items such as parcels, mail, small bags, suitcases, satchels, etc.

6550 X ray luggage Scanner for station Applications: hotels, express delivery companies, stations, airport, tourist attractions, government agencies, public security organs, procuratorates, courts, customs, prisons, detention centers, warehouses and many other important places.

6550 X ray luggage Scanner for station Basic parameters

1. Dimensions: 2040*920*1300mm (length * width * height)

2. Channel size: 650*500mm (width * height)

3. Transmission speed: 0.22m / sec

4. Load weight: 170kg

5. Resolution: diameter 0.07871mm metal wire

6. Spatial resolution: horizontal diameter 1.0mm; vertical diameter 1.0mm

7. Penetration: ≥40mm～48mm steel plate (can be customized)

X-ray generator

1. Ray beam direction: bottom illumination

2. Tube current: 0.4-1.2mA (adjustable)

3. Tube voltage: 100-160KV (adjustable)

4. Leakage dose: <0.1uGy/h

5. Ray beam divergence angle: 80°

Use environment

1. Working environment: -20 ° C ~ +60 ° C / 20% ~ 95% (non-condensing)

2. Cooling / duty cycle: sealed oil cooling / 100%

3. Noise: ≤55dB (A)

4. Working voltage: 220VAC (±10%) 50±3HZ

5. Power consumption: 0.6KVA/h

Image Processing

1. Array detector: L-type photodiode single energy detector

2. Display: high resolution 19 inch LCD display

3. Pseudo color: image display 24-bit color display, 12bit depth

4. Edge enhancement: the outline of the object is clearer

5. Super image enhancement map: the image details are clearer

6. High wear display: improve the contrast of the bright area of the image, making the easy penetration area clearer

7. Low wear display: increase the contrast of the dark area of the image, making the difficult-to-penetrate area clearer

8. Brighten/dark: increase the brightness of the image / dim the brightness of the image

9. Pull back / pull forward: can pull back and process the current 30 images

10. Image restoration: the image display returns to the initial state of the belt stall

11. Image storage: save 500,000 images in a row and process them

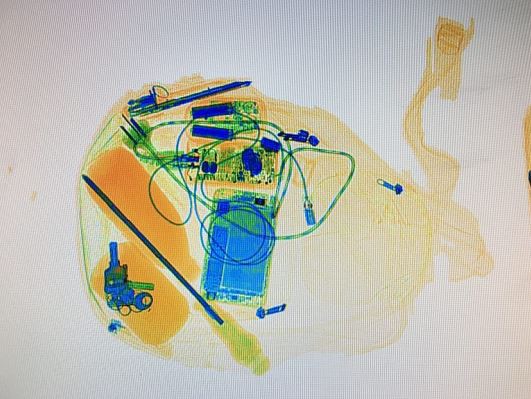

12. Multi-energy color: organic matter is displayed as: orange

13. Inorganic matter is shown as: blue

14. The mixture is shown as: green

15. High energy / low energy: two energy switching display

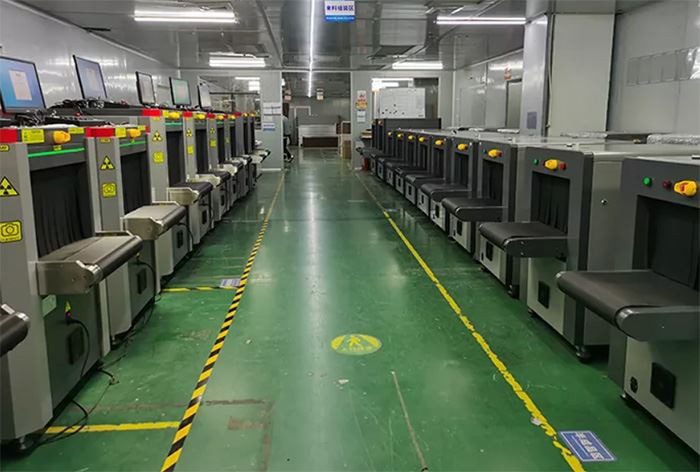

X ray luggage Scanner for station plant:
