X Ray baggage security scanner machine Work Principle
X - ray security inspection equipment has the baggage handling, X ray source and control part, signal
acquisition and processing and the transmission part and the image processing part and electric control part. X - ray security inspection equipment will send checked baggage into the crawler channel to complete the
transfer with the help of the conveyor belt. Goods into the channel, detection device and relevant information will be sent to the control unit, the X - ray source emitting X rays by the control unit triggers. X ray through the collimator form very narrow fan beam,through the conveyor belt into the luggage on the detector, the X - ray
detector transfers received Xray into the electrical signal.The weak current signal is amplified to quantify ,

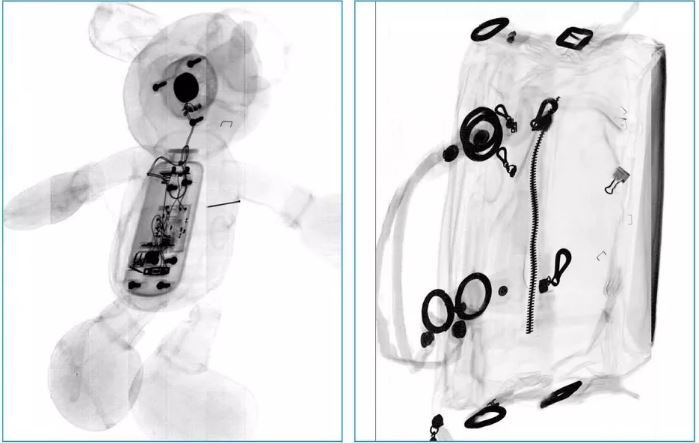

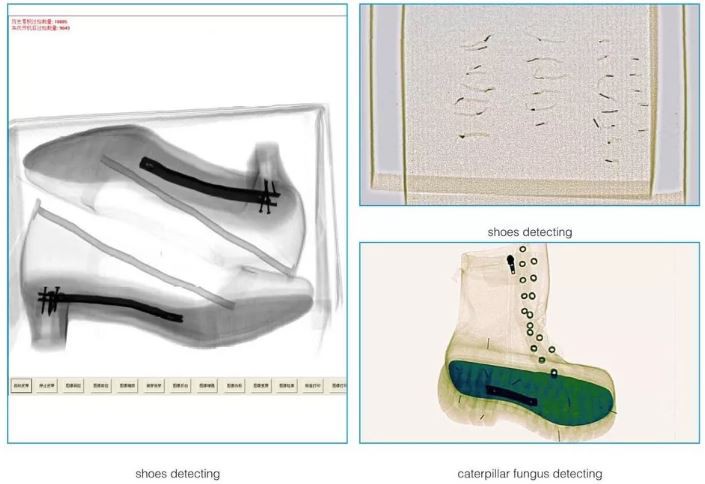

Transmitted through the universal serial bus to the industrial control computer for further processing, and afteroperation imaging processing complex to obtain high quality images.
X Ray baggage security scanner machine highlights
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Uninterruptable power supply (UPS)
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
* baggage counter
Tunnel size(mm) | 1000(L)*800(W) |
Conveyor Speed(m/s) | 0.2 |
Conveyor height(mm) | 296 |
Conveyor Max Load(kgs) | 200 |
X ray dose per each inspection | 1.0 μGy |
X ray leakage | <0.45 μGy / h |
Penetration | 30 mm steel |
Wire Resolution | dia 0.16mm copper wire (AWG34) |
Penetration Resolution | dia 0.511mm copper wire (AWG24) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm |
Spatial resolution: | Horizontal:dia1.0mm,Vertical: dia1.0mm |
Power Consumption | max. 1KW |
Noise | < 60 dB |
Film Safety | Guarantee ASA/ISO1600 Film |
1. Are you manufacturer or trade Company?
We are a factory of metal detector machines founded in 2005 with trade team for international service.
2. What terms of payment you usually use?
T/T 30% deposit and 70% against document, L/C at sight, etc
3. what is your lead time for your goods?
For customized industrial metal detectors normally 10 days after confirmed order.5 days could be available in low season for some items (during May to July), and 25 days during new year and hot season ( Jan to March).
