Public bag inspection X ray baggage scanner machine

X ray baggage scanner machine description:

This 50 cm x 30 cm.kind of X-ray machines are specially designed for documents or small package objects security screening. They are also a kind
of security checking solution for hand held bags and parcels used in offices. This kind of conveyor mail and parcel x-ray scanners are much more efficient than the traditional cabinet x-ray scanners (Post and mail x-ray scanners box). Small size with caster,the mail and parcel X-ray scanners are smart x-ray security solution.5030 x-ray baggage machine offers highly efficient solid state detectors, digital image processing and smart algorithms to provide the user with a reliable, high resolution image with superior image processing functions and excellent detection capabilities.

Model：BTX-5030C

Channel size：505*300mm(W*H)

Belt speed：0.22 M / S

Belt load：170 kg

Penetration：12 mm steel plate

Line resolution：> 38 AWG

Spatial resolution：Horizontal / vertical 1.0mm

Noise level：< 55 dB (A)

Weight：350KG

Power consumption：< 1KW

Power supply： AC220V ± 10%, 60Hz ± 5Hz

Size：1600 mm(L) * 800mm(W)*1200mm(H)

Control interface：Analog interface

Tube voltage：80 KV(adjustable)

Tube current：0.4~0.5 MA(adjustable)

Cooling mode：Sealed oil cooling, industrial fan heat dissipation

Duty cycle：100%, without preheating

Protection function： Over voltage, over current and over temperature protection

X ray baggage scanner machine Features&Functions:

l Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

l Safety ray: Ray is transmitted under automatic control, avoiding the error

l One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

l Eagle eye: Capable of expediently observing the magnifying area

l Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

l TIP and training software , free programmable keys , real time diagnostic

l Display date/time , baggage counter , User ID number

l Review feature , recall previously image , zoom overview , step less zoom

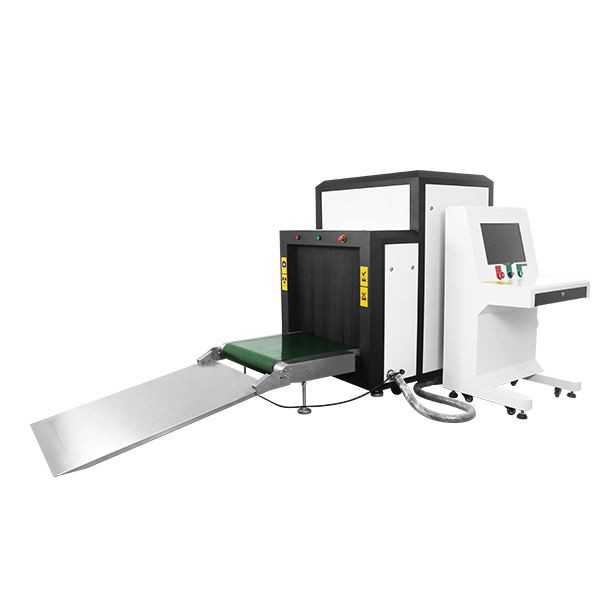

X ray baggage scanner machine

Model 8065:
