8065 Airport Cargo Security X-ray Luggage Scanner
Airport Cargo Security X-ray Luggage Scanner FEATURE:
1. Alarm by sounds & light::Alarm by sounds and light when conform to condition.
2. Network interface:Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray:Transmit ray under automatic control, avoids the miss
4. Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.

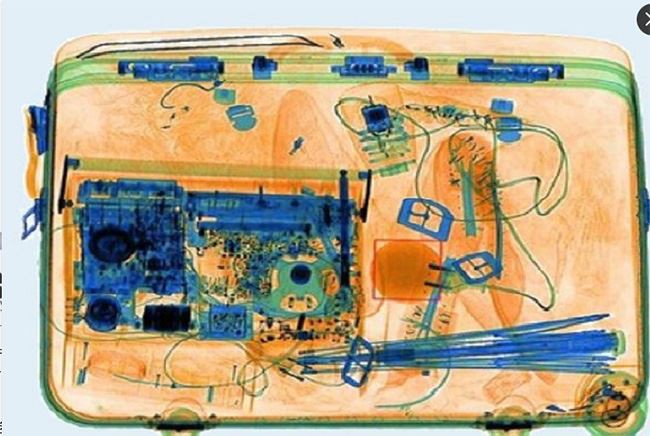

5. Eagle-eye:Could be expediently observing enlargement area.
6. Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.
X-ray Luggage Scanner General Specifications | |
| Tunnel size(mm) | 800(L)*650(W) |
| Conveyor Speed(m/s) | 0.2 |
| Conveyor height(mm) | 338.5 |
| Conveyor Max Load(kgs) | 200 |
| X ray dose per each inspection | 1.1 μGy |
| X ray leakage | 0.45 μGy / h |
| Penetration | 30mm steel |
| Wire Resolution | dia 0.16mm copper wire (AWG34) |
| Penetration Resolution | dia 0.254mm copper wire (AWG30) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm |
| Spatial resolution: | Horizontal:dia1.0mm,Vertical: dia1.0mm |
| Power Consumption | max. 1KW |
| Noise | < 60 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |

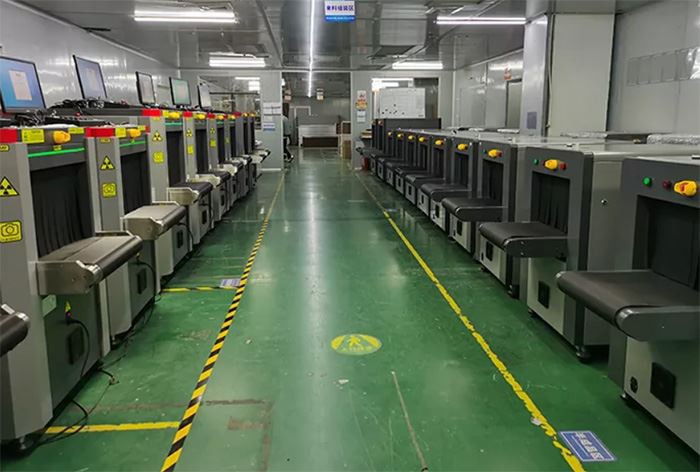

Airport Cargo Security X-ray Luggage Scanner plant:
