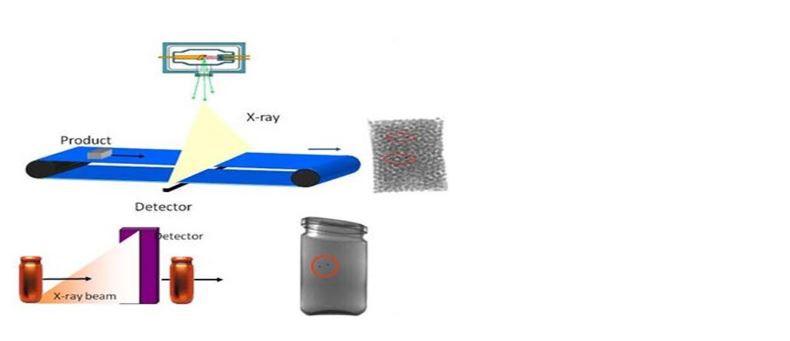

Working principle:

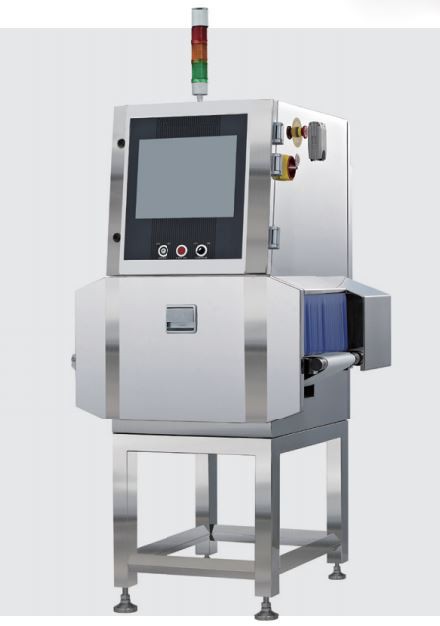

Meat x ray machine is a specialized equipment used in the food industry to detect contaminants and foreign objects inside food products. It ensures the safety and quality of food by using X-ray technology to inspect and identify potential hazards such as metals, glass, stones, plastics, and other foreign materials. The machine provides highly accurate detection while ensuring compliance with food safety standards.It has the basic function of automatically detecting foreign matter, and can also detect the loss of packaged products and defective products at the same time.
X ray metal detector technical parameter:
Model#: | BTX-3500D | |||
X-ray Source: | Standard: 150W, 80kV. Optional: 350W,100kV | |||
X-ray Beam Direction: | From the top | |||
Detector: | 0.4mm | |||
Detection Tunnel Size: | 400mm (W) × 200mm (H). Customized order is acceptable. | |||
Max.Detection Accuracy | SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm | |||
Conveyor Speed: | 20-60 m/min | |||
Bearing Capacity: | Standard: ≤5 Kg. Customized order is acceptable. | |||
O/S: | Win 10 | |||
Software: | X-ray Inspection Software | |||
Connectivity: | LAN port & USB port | |||
Screen: | 21.5 inch full color touchable screen | |||
Parameter Adjustment: | Auto Setting & Manual Setting | |||
Operation Language: | Chinese & English | |||
Reaction to defectives: | buzzer and red light alarm once foreign body is detected | |||
Material of construction: | SUS 304 | |||
Surface Treatment | Mirror Polished / Brushed | |||
Cooling Mode: | Industrial cooling fans & Industrial A/C | |||
Working Environment: | temperature: -5℃-40℃; humidity: 30-90%RH (no condensation) | |||
Power Supply: | AC220V ±10% 50/60Hz | |||
X-ray Leakage: | < 1μSv/h (Meet FDA and CE standards) | |||
Protective Mode: | 6 layers of non-lead food grade soft curtain | |||
Conveyor Material | Food grade PU belt with FDA certificate | |||
Emergency Stop Button | Yes, included | |||
Multi-levels management | Yes, Operator, Worker and Administrator three -levels management to meet different | |||
Test result:
BTR-3500D series is used for detecting contaminants inside of the small packaged products. Metal and non-metal impurities include
ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, had rubber and hard plastic, even for products wrapped in
aluminum foil or metallised film and etc. The foreign object is detectable by its density. The greater density they have, the
easier they can be found. That is why we normally use X-RAY inspection system to detect even the most tiny contaminants.
Pre-sales Services:
1. Collecting customer's product information and requirement.
2. Providing solution and offer for customer's review 12 Hours after information colletion.
3. Hundreds of service cases and videos will help our customer to understand our machine better.
Kindly reminder:
Please provide below information when you send inquiry, so that we can quickily provide the precise feedback and the suitable solution for you.
* Product details (Product Name, Min./Max. Dimension & Weight )
* Package details (Packaging Material, Dimension, Shape)
* Capacity and inspection accuracy requirement
* Other special requirements
In-sales service:
4. Sending the machine drawings for customer's approval before mass production.
5. Following up each production process to make sure on-time delivery.
6. Sending the machine inspection video for customer's approval before delivery.
7.Working with forwarder for the shipping and keep the customer updated on ETD & ETA.
After-sales service:
8. Manules / Videos of machine installation, adjusting, setting, maintenance are available for our customers.
Online after-sales service:
9. We will give response in 4 hours in case of machine failure, solutions will be offered in 24 hours via whatsapp,wechat and facebook. What's more, our engineer team can speak English, which can communicate more effective.
Onsite after-sales service:
10.If there is a need,we can arrange our engineer to your place for technical support.
