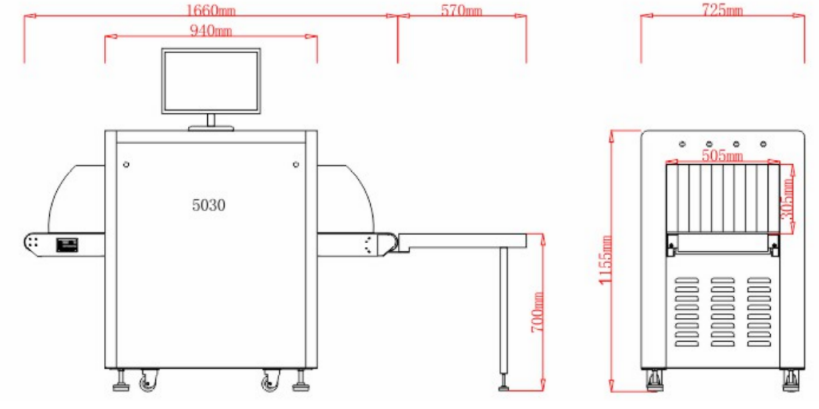

The channel size

500(W)X300(H)mm

Conveyor Max Load

100kg

conveyor speed

0.23m/s

 resolution ratio

Dia 0.1mm wire

penetration rate

11mm steel plate

Leakage dose

<0.3μGy/h (It is 5cm from the shell)

x-ray generator:

tube voltage

80KV

Tube Current

0.4~0.7MA

Cooling/working cycle

Sealed cold drawn /100%.

Orientation

Upward

Operational environment:

Working temperature/humidity.

0℃~45℃/20%~95%(non-condensing)

Storage temperature/humidity Range

-20℃~60℃/20%~95%(non-condensing)

working voltage

220 VAC (±10%) 50±3HZ

Power

500 KW (Max)

Noise

55dB (A)
