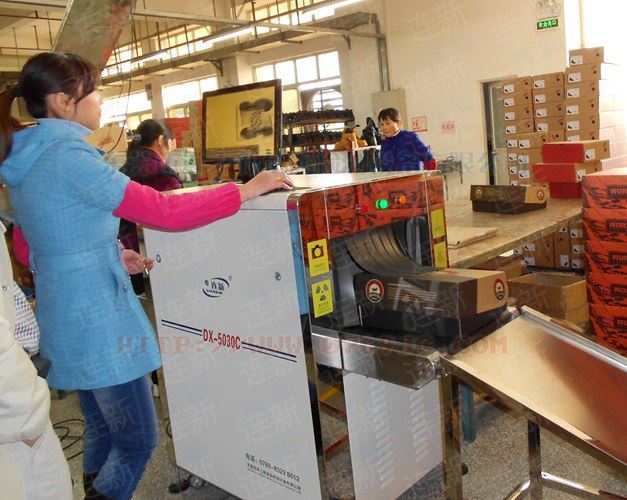

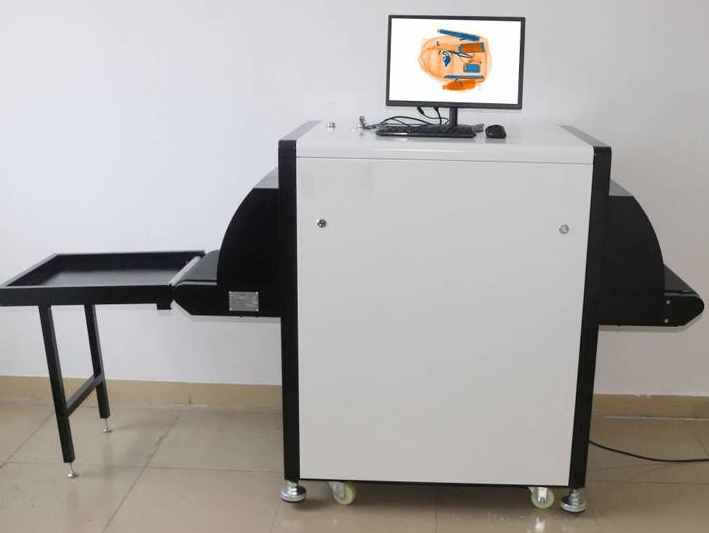

Needle metal X Ray detection Machine For Shoes, leather

X Ray detection Machine For Shoes technical parameters:

Channel size: 650 (W) X 500 (H) mm Transmission speed: 0.22m/sec weight: 200kg

Resolution: 0.07871mm diameter metal wire

Spatial resolution: horizontal diameter 1.0mm; vertical diameter 1.0mm Penetration
resolution: diameter 0.202mm
Penetration: ≥16~48mm steel plate (can be customized)
Film Safety: Safe for IS01600 Film
Beam direction: bottom illuminated
Tube current: 0.4-1.2mA (adjustable)
Tube voltage: 80-100KV (adjustable)
Leakage dose: ≤0.11uGy/h
Beam divergence angle: 80° Cooling / working
cycle: sealed oil cooling /
Working environment: -20°C~+60°C/20%~95% (non-condensing)

Working voltage: 220VAC (±10%) 50±3HZ Power consumption: 0.6KVA/h (0.6 kWh per hour) Noise: ≤55dB (A)

Machine weight: 400 kg

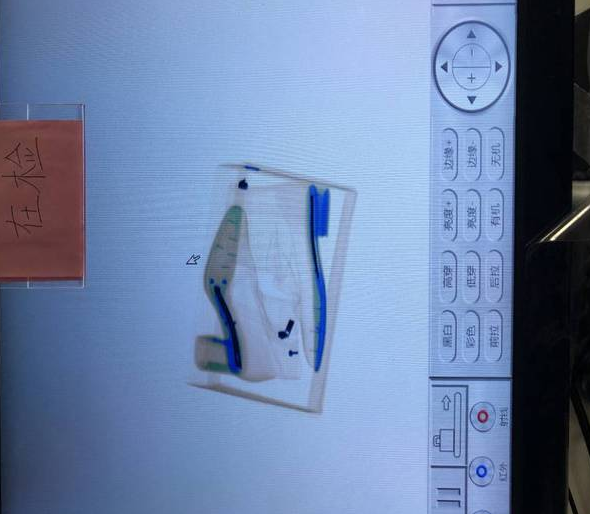

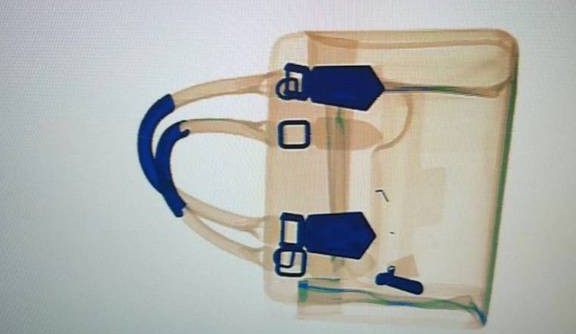

Image Processing:

Array detector: L-type photodiode multi-energy detector

Display: High-resolution 19-inch LCD display

Color: According to the material, 24-bit color display, 12-bit depth

Edge enhancement: object outline edges are sharper

Image Enhancement: Image details are clearer

High-penetration display: Improve the contrast of bright areas of the image and make the easy-to-penetrate areas clearer

Low-pass display: Improve the contrast of dark areas of the image and make the hard-to-penetrate areas clearer

Brighten/Dark: Brighten the image / Darken the image

Pull back/pull forward: the current 20 images can be pulled back and forth and processed

Image restoration: The image display returns to the original state

Image storage: 200,000 images are continuously saved and can be processed

Features

1. One-button shutdown: just turn the key when shutting down, and the device will automatically shut down safely, which is more user-friendly.

2. Layered control of emergency stop and stop: Press the emergency stop button, only power off the transmission and the ray source part, which is safer.

3. Clear image: The core components use high-density modules, with higher resolution and clearer.

4. Waterproof function: special treatment in the channel, passengers can be more assured if a small amount of liquid is scattered.

5. Fault self-diagnosis: automatic judgment of faults, and prompt information is given, which is convenient for maintenance.

6. Promise zoom function: continuous and stepless mouse zoom function, more continuous. The powerful mouse magnifying glass function, any local detail magnification, and more.

7. Fault self-diagnosis: automatic judgment of fault occurs, and prompt information is given, which is convenient for maintenance.

8. Detection objects: parcels, mails, small bags, suitcases, bags and other small objects.

Applicable places: financial, judicial, public security, border inspection, aerospace, electric power, factories, sports, education, medical care, courts, tax bureaus, tourist attractions, post offices, hotels and many other fields.
