Needle X Ray detector inspecion system For Shoes, Toys factory

Needle X Ray detector inspecion system parameters:

Channel size 500 mm (width) × 300 (height) mm

Conveyor speed 0.22m/s

Conveyor belt rated load 150 kg

Penetration 8mm steel plate

Line resolution: Φ0.127mm wire

Penetration resolution: Φ0.511mm wire

Spatial resolution: horizontal: Φ1.3mm, vertical: Φ1.3mm

Pass rate: 720 / h

Noise: 60 dB(A)

Radiation safety

Single dose: 2.89μGy

Leakage radiation dose rate: 0.18μGy / h (any distance 5cm from the outer surface of the device, in line with domestic and international health and safety standards)

Film Safety For ISO1600 Film Safety

X-ray generator

Ray beam direction

Cooling / duty cycle sealed oil cooling / 100%

System functions

Image processing functions: image enhancement; magnifying glass; brightening/darkening; image pullback/pretensioning; image storage.

Other functions: date/time display; baggage count; user management; system work timing; beam output timing; power-on self-test; image storage and retrieval; maintenance diagnosis; two-way scanning; image recognition training.

Use environment

Operating temperature / humidity 0 ° C ~ 45 ° C / 5% ~ 95% (non-condensing)

Storage temperature / humidity -40 ° C ~ 70 ° C / 5% ~ 95% (non-condensing)

Working voltage 220VAC (±10%) 50±3HZ

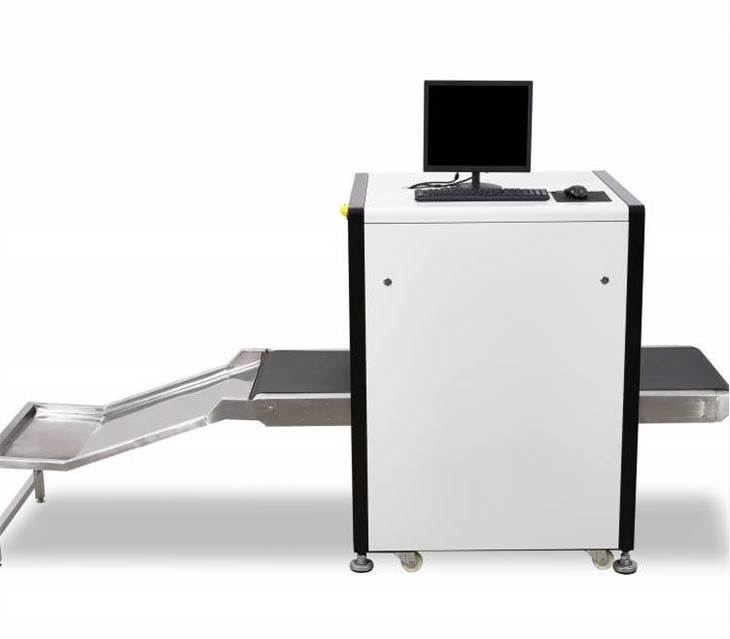

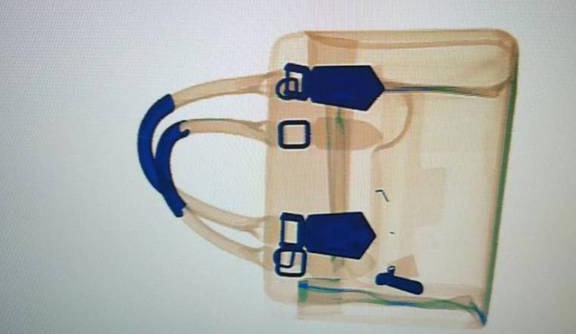

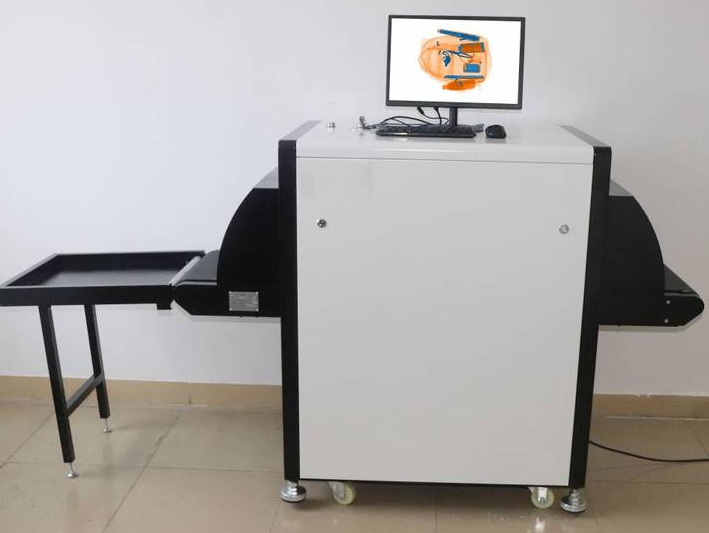

X Ray detector inspecion system images:

[object Object]

X Ray detector inspecion system For Shoes Features:

1. One-button shutdown: just turn the key when shutting down, and the device will automatically shut down safely, which is more user-friendly.

2. Layered control of emergency stop and stop: Press the emergency stop button, only power off the transmission and the ray source part, which is safer.

3. Clear image: The core components use high-density modules, with higher resolution and clearer.

4. Waterproof function: special treatment in the channel, passengers can be more assured if a small amount of liquid is scattered.

5. Fault self-diagnosis: automatic judgment of faults, and prompt information is given, which is convenient for maintenance.

6. Promise zoom function: continuous and stepless mouse zoom function, more continuous. The powerful mouse magnifying glass function, any local detail magnification, and more.

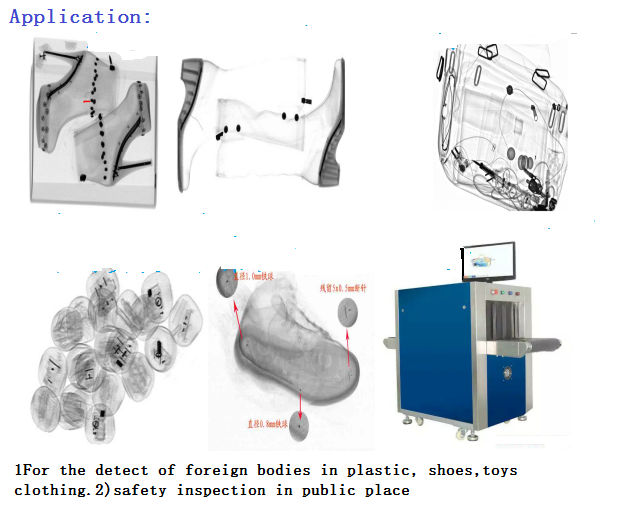

Applicable places: financial, judicial, public security, border inspection, aerospace, electric power, factories, sports, education, medical care, courts, tax bureaus, tourist attractions, post offices, hotels and many other fields.

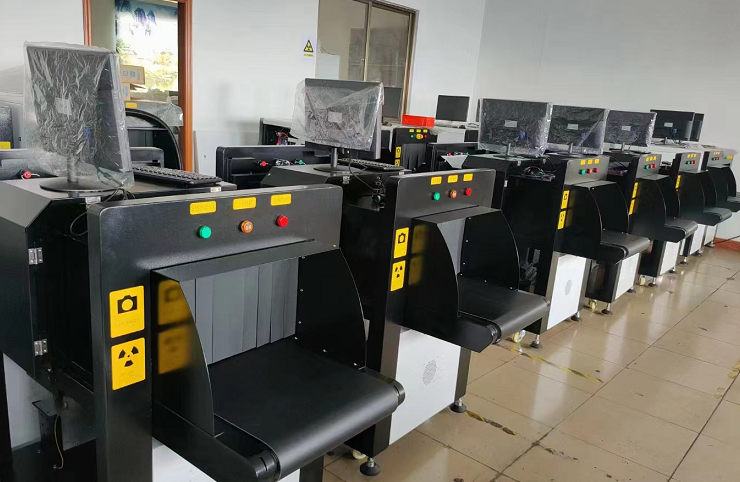

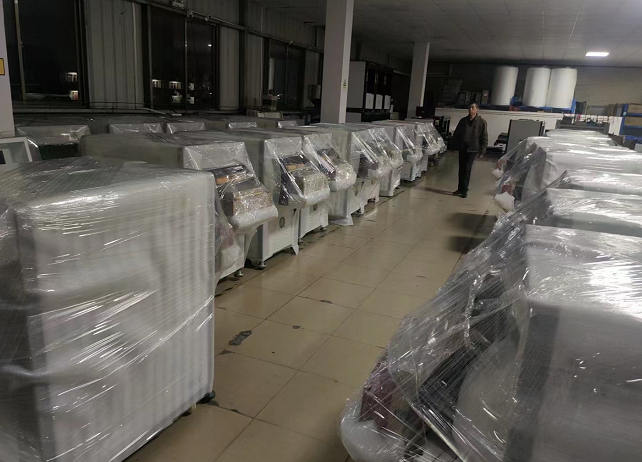

X Ray detector inspecion stocks:
