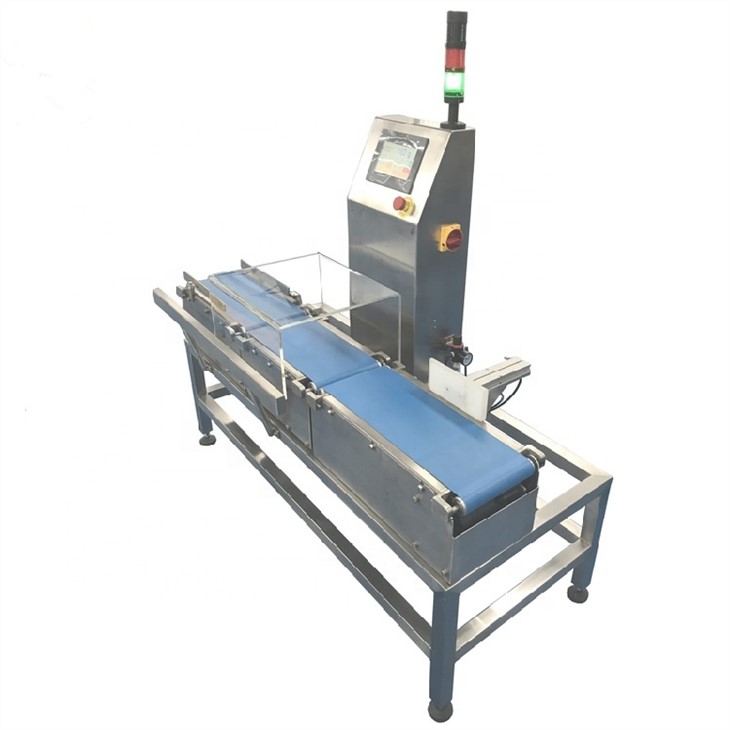

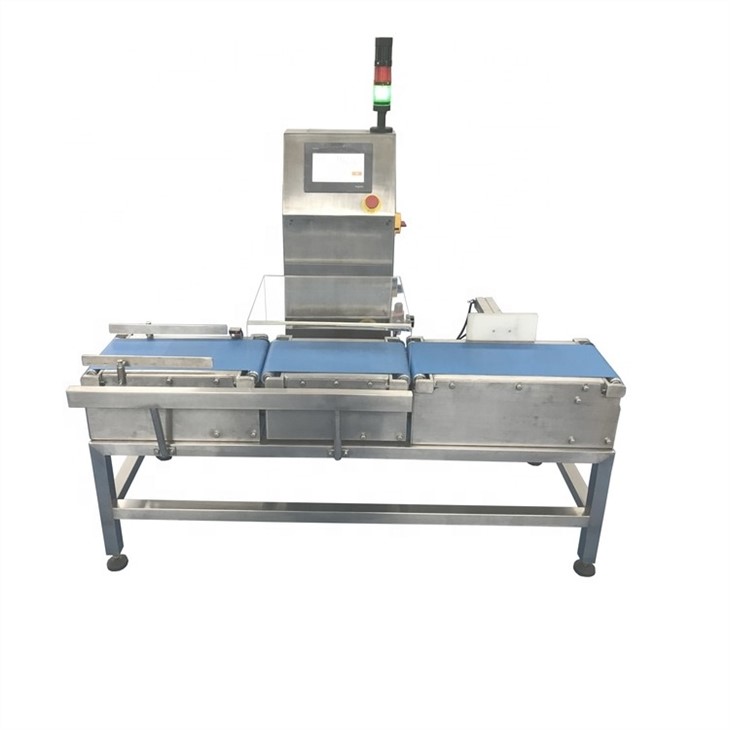

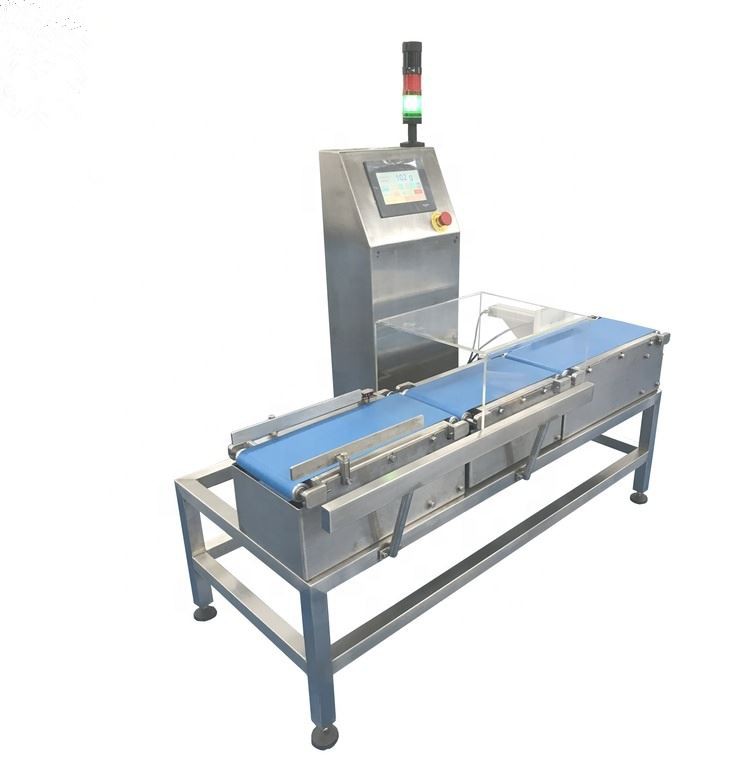

Inline Check Weigher System
Inline Check Weigher System for Features:
1. Large size color LCD touch screen interface, the operation is simple and direct display.
2. Enhanced 304 stainless steel frame, GMP and HACCP standards.
3. Simple mechanical structure, can quickly remove cleaning maintenance.
4. Can store 200 kinds of product parameters, the convenient user use.
5. Automatic zero tracking system, guarantee the stability of detection.
6. Built-in temperature and noise compensation system, ensure the data is reliable.
7. The dynamic weight compensation technology, ensure the data to be more effective
8. Parameters set password protection, only management operation.
9. Strong self diagnosis function, effectively improve the efficiency of the operator to deal with failure.

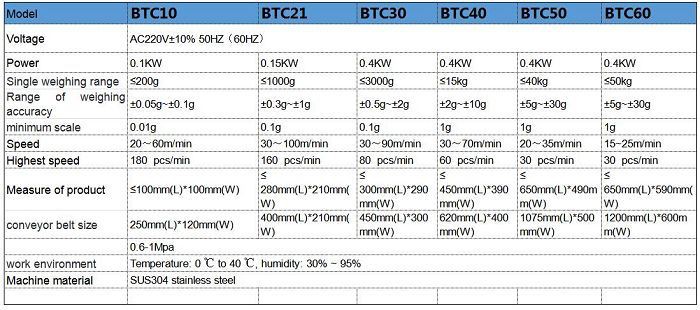

Check Weigher System parameter:
type | 2021 |
power supply | AC220V±10% 50HZ（60HZ） |
rated power | 0.15KW |
Single weighing range | ≤2kg |
Range of weighing accuracy | ±0.3g~±1g |
minimum scale | 1g |
conveying speed | 0～100m/min |
· Weighing speed | 160 pcs/min |
Measure of product | <280mm(L)*210mm(W) |
the size of the conveyor belt | 1500mm(L)*210mm(W) |
product size | 1522mm(L)*560mm(W) *1222mm(H) |
· Remove method | · push lever (or give signal) |
control system | High speed A/D sampling controller |
Preset the product number | 2000pcs |
· Operating Direction | Face the machine, in and out |
An external gas source | 0.6-1Mpa |
Air interface | Φ8mm |
work environment | Temperature: 0 ℃ to 40 ℃, humidity: 30% ~ 95% |
The body material | SUS304 stainless steel |
Checkweigher system spare parts:
brand | name | Specifications / Model | |
Wilen | touch screen | TK6071IQ 7inch | 1 |
CAUC | sensor | 25KGaluminium | 1 |
Omron | switching power supply | S8JC-C100 24C | 1 |
sommer | control switch | SLD2(3LD2-32A) | 1 |
Siemens | frequency converter | V20 frequency converter，single phase 220V， 0.55KW | 1 |
Jhongda | motor | three phase220V 90W （7.5：1） | 1 |
Taiwan gen | motor | three phase 220V 200W （10：1） | 1 |
AirTAC | pneumatic component | Air source processor, 24V solenoid valve, throttle valve, thread straight |
Conveyor belt dynamic check weigher application:
The test objects are weighed and inspected by the checkweigher, the qualified ones are sent back to the original conveyor belt, the unqualified ones are rejected (or alarmed), and it has the functions of automatic classification and statistics of the products; the entire inspection has the original packaging line There is no major change in the workflow. It can save manpower and increase productivity to achieve the purpose of controlling product quality and improving customer satisfaction. It is a quality inspection equipment for automatic production lines and packaging lines.

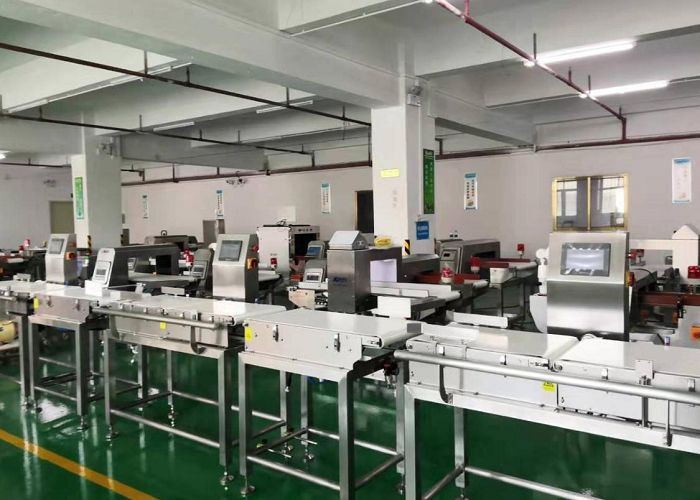

Onlineconveyor belt dynamic check weigher factory plant:

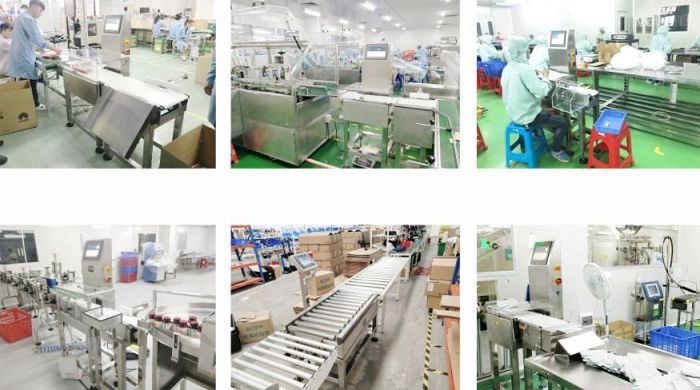

Conveyor belt check weigher system of customer cases:
Certificate:
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
After-sales service
We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3..We provide one year warranty
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
5 .12 Months guarantee and life-long technical support.
6.Your business relationship with us will be confidential to any third party.
7.Good after-sale service offered, please get back to us if you got any questions.
Shipping:
FAQ:
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price,
please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
a. Dynamic mode: normal pipeline mode;
b. Static mode: After the material enters the weighing platform, the weighing platform stops running, and the weighing is performed to improve the accuracy. It is suitable for products with less than 20 passes per minute;
c. Energy-saving mode: (optional) The energy-saving mode can be turned on on the basis of a and b modes, and no material is set to pass the shutdown time. When the equipment is idling, it will automatically stop after the long time, and then automatically start when there is material passing.
