Online dynamic logistics check Weighing Devices
dynamic logistics check Weighing Devices parameter:
Modle | BTW12080S60 |
Weighing range | 1-60kg |
Best accuracy | ±10-30g； |
Weighing conveyor belt size | 1200(L)×800（w）（mm） |
Belt speed | 1.2m/S |
Whole machine size | 1200(L) ×1250（W）×800（belt to ground height）（mm）（for reference） |
Belt to ground height | 800(+50mm） |
Direction | Face to machine from left to right(or custom)； |
Voltage | AC220V±10%,3 phases |
Date communication | Ethernet communication port; (TCP or modbus format) |
dynamic logistics check Weighing Devices main configuration:
1) bestar dynamic weighing system V1.0.5;
2) German HBM custom load cell;
3) French Schneider Schneider Electric switch;
4) Danfoss inverter; Jingyan motor;
5) 7-inch Weiluntong color touch screen, friendly interface and easy to operate;
6) NSK bearing; 72 diameter dynamic balance roller;
7) SICK photoelectric sensor;
8) The weighing platform uses a black mesh belt;
9) Unique weighing frame mechanism design ensures accurate and reliable weighing;
Views of the product (unit mm, can be customized according to demand)

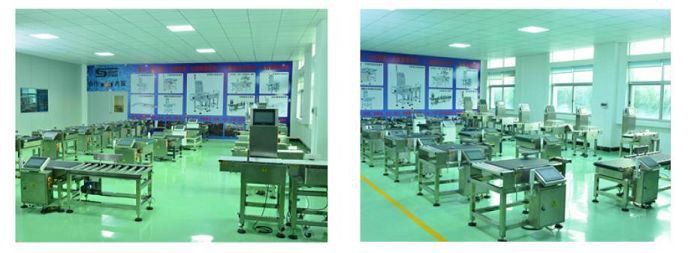

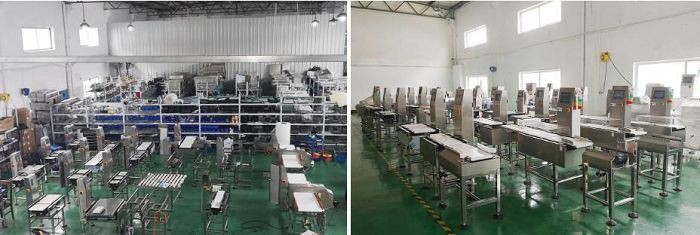

dynamic logistics check Weighing Devices factory plant:
After-sales service
We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3..We provide one year warranty
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
5 .12 Months guarantee and life-long technical support.
6.Your business relationship with us will be confidential to any third party.
7.Good after-sale service offered, please get back to us if you got any questions.
