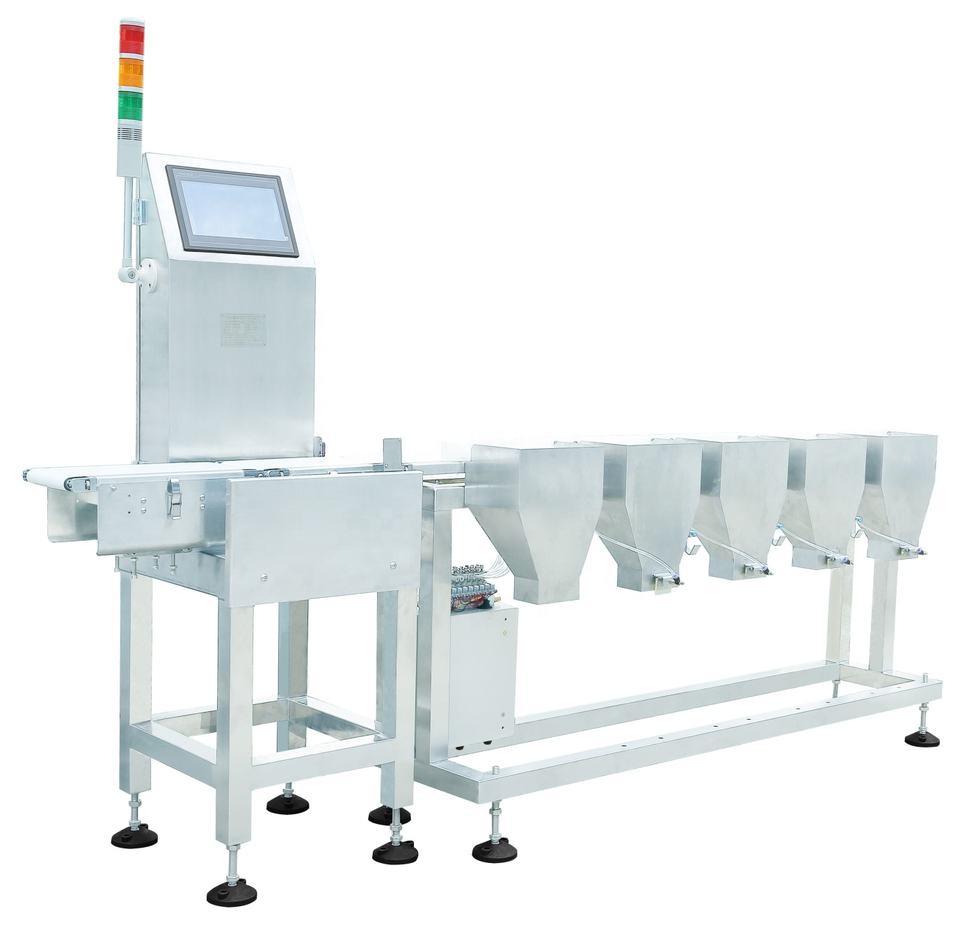

Weight Sorting Grading Machine Multi-sorting Checkweigher for seafood
Weight Sorting Grading Machine Multi-sorting Checkweigher for seafood advantages:
*Efficient and economical: multi-stage sorting and automatic weighing, replacing manual labor, improving efficiency;
*Strong versatility: The standardized structure of the whole machine and the standardized human-machine interface can complete the weighing of various materials;. Easy to replace: a variety of formulas can be stored, and it is convenient to change product specifications;
*Easy to operate: use Weilun color man-machine interface, fully intelligent and humanized design: *Easy to maintain: the conveyor belt is easy to disassemble, install and maintain, and easy to clean;
*Adjustable speed: using frequency conversion control motor, the speed can be adjusted according to needs;
*High-speed and high-precision: high-precision digital sensors are used, with fast sampling speed and high precision; ★Customizable: The sorting level can be customized according to customer needs;
*Zero tracking: can be manually or automatically cleared, and dynamic zero tracking;
Weight Sorting Grading Machine Multi-sorting Checkweigher :
| Product model | SCW3512L05 | SCW6030L10 | SCW7030L15 |
| Scale | 0.01g | 0.05g | 0.1g |
| Weight checking range | 1-500g | 1-1000KG | 1-2000g |
| Weight checking accuracy | ± 0.15-0.3g | ± 0.2-0.5g | ±0.5-1g |
| Size of weighing section | L325mm*W120mm | L:350mm*W160mm | L 350mm*W 230mm |
| Suitable product size | L≤ 200mm；W≤ 120mm | L≤ 200mm；W≤160mm | L≤ 200mm；W≤ 230mm |
| Weighing Control System | Sardory On-line weighing control system V1.1.5 | ||
| Belt speed | 5-90m/min | ||
| Number of items | 20-50 items | ||
| Sorting section | Standard 1 sections,can choose 3 sections | ||
| Eliminating device | Push rod type and slide type optional | ||
| Standard technical parameters | Power supply: standard single-phase AC200-240V, 50/60HZ, 0.4KW, optional three-phase AC380V, 50/60HZ, 0.4KW Air Source: Dry 0.5-0.8 MPa (5-8 bar) Temperature: Use temperature: 0 40 Storage temperature: - 20~60. Humidity: 10-90% RH, no condensation Protection Level: IP30, IP54, IP65 are optional Noise:<75db Machine weight: 70kg Working Height: 750± 50mm (confirmed when ordering other heights) | ||
| Material | Weighing Sensor: Aluminum and stainless steel optional Roller: Aluminum Structure: stainless steel 304 Conveyor Belt: White, Food Grade, Polyurethane Thermoplastic (TPU) |
