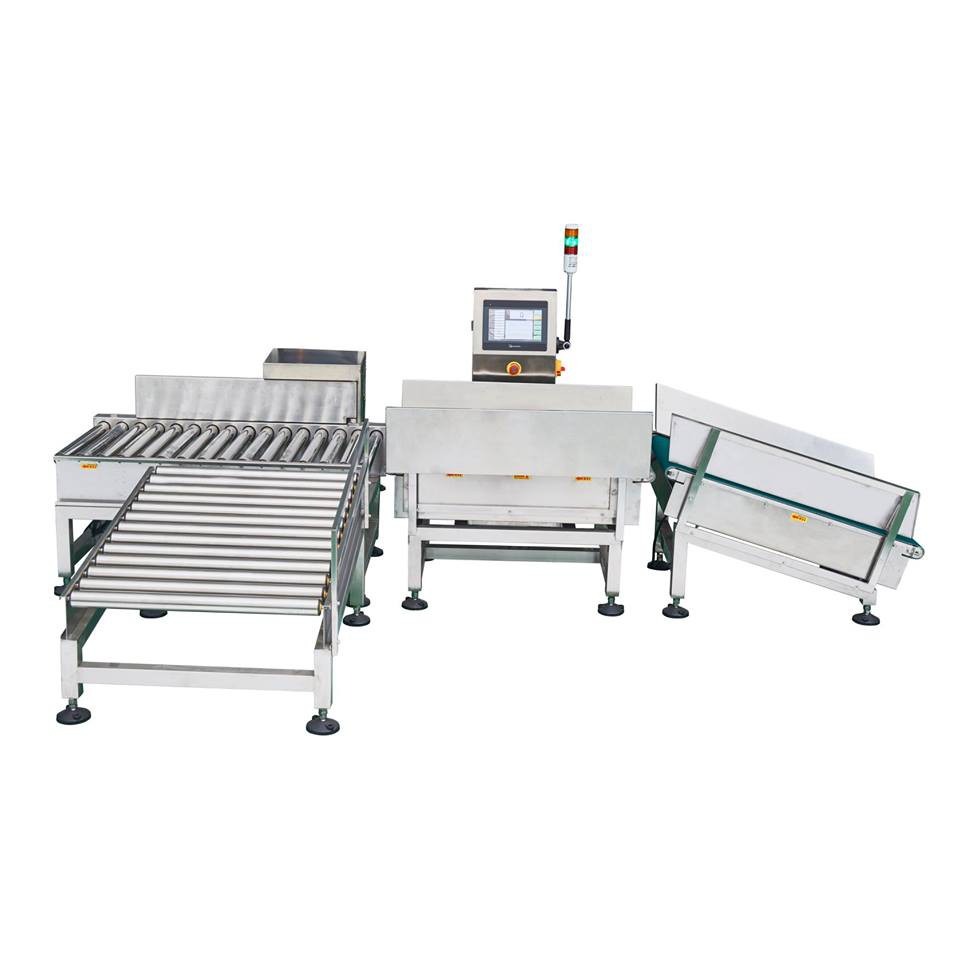

40kg automatic dynamic big check weight for heavy box carton
To check if the weight is qualified or not, the automatic weighing and sorting machine with USB data storage interface can report The data is transferred to a PC for analysis and printing.
40kg automatic dynamic big check weight for heavy box carton parameters:
type |
7545 |
power supply | AC220V±10% 50HZ（60HZ） |
rated power | 0.4KW |
Single weighing range | ≤35kg |
Range of weighing accuracy | ±5g~±20g |
conveying speed | 20～30m/min,10box/min |
Measure of product | ≤650mm(L)*450mm(W) |
Weighing conveyor belt size | 750mm(L)*450mm(W) |
Remove method
| Stop |
control system | High speed A/D sampling controller |
Operating Direction
| Face the machine, in and out |
An external gas source | 0.6-1Mpa |
work environment | Temperature: 0 ℃ to 40 ℃, humidity: 20% ~ 85% |
The body material | SUS304 stainless steel |
The test objects are weighed and inspected by the checkweigher, the qualified ones are sent back to the original conveyor belt, the unqualified ones are rejected (or alarmed), and it has the functions of automatic classification and statistics of the products; the entire inspection has the original packaging line There is no major change in the workflow. It can save manpower and increase productivity to achieve the purpose of controlling product quality and improving customer satisfaction. It is a quality inspection equipment for automatic production lines and packaging lines.Conveyor belt dynamic check weigher application:

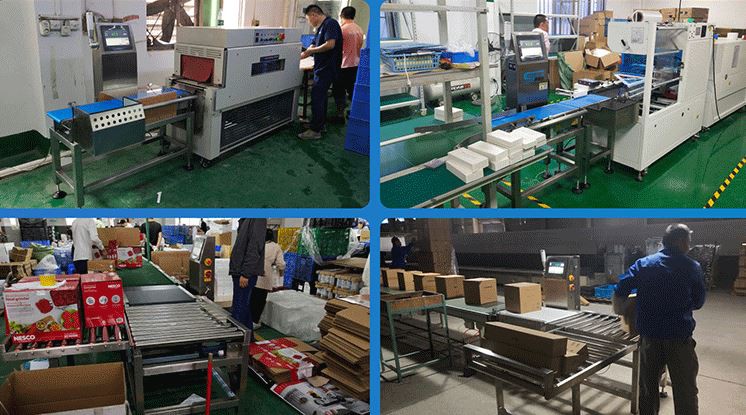

dynamic big check weight customer cases:
dynamic big check weight Certificate:
