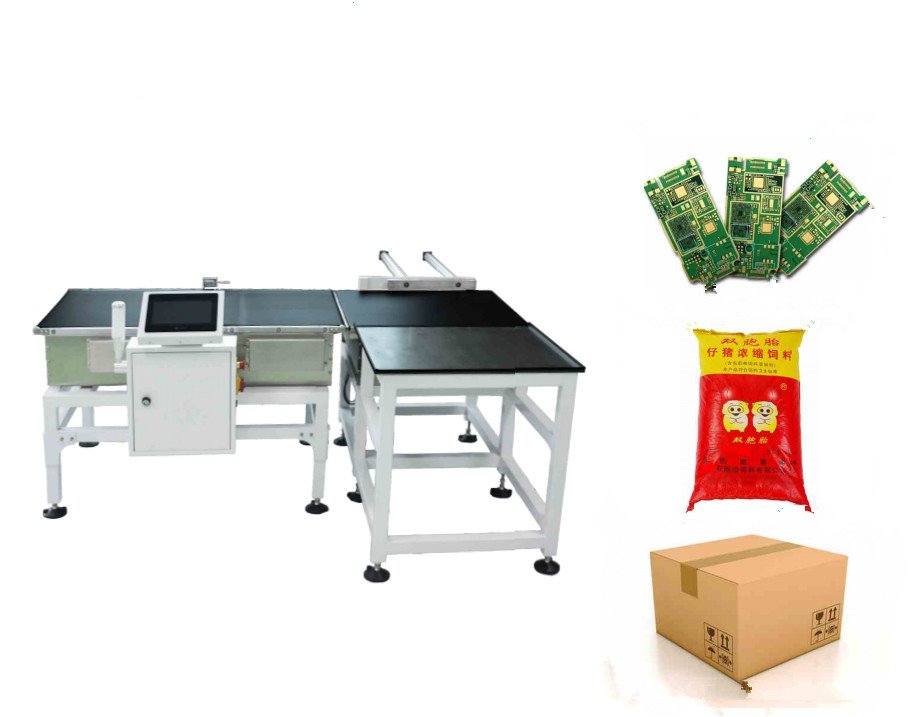

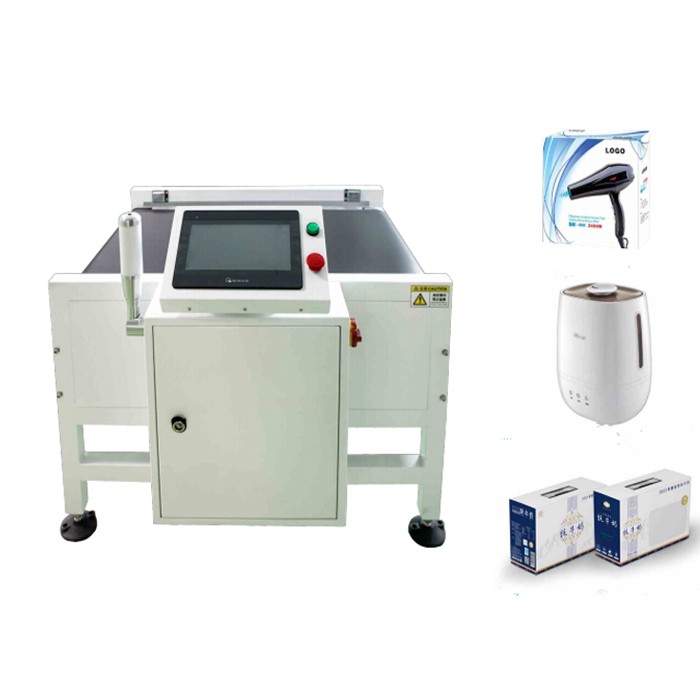

Big Range Dynamic Online Checkweigher for Heavy Products:
This Big Range Dynamic Online Checkweigher for Heavy Products is mainly used for weight sorting and sorting, with the characteristics of short weight determination time and high recognition accuracy. The automatic weight sorting scale is generally installed at the back end of the production line such as production equipment and automatic packaging. Manage production. The data can also be fed back to the production equipment, so as to control the production equipment and prevent unnecessary loss of raw materials.
Big range weight checking part parameter:
type | BTB70 |
power supply | AC220V±10% 50HZ(60HZ) |
rated power | 0.2KW |
Single weighing range | ≤50kg |
Range of weighing accuracy | ±10g~±20g |
minimum scale | 1g |
conveying speed | 5~80m/min |
Measure of product | <800mm(L)*700mm(W) |
Weighing section size | 1000mm(L)*700mm(W) |
Remove method | · push lever |
control system | High speed A/D sampling controller |
Preset the product number | 100pcs |
Operating Direction | Face the machine, in and out |
An external gas source | 0.6-1Mpa |
Air interface | Φ8mm |
work environment | Temperature: 0 ℃ to 40 ℃, humidity: 30% ~ 95% |
The body material | SUS304 stainless steel |
Dynamic Online Checkweigher Features
The Big Range Dynamic Online Checkweigher for Heavy Products uses a 7/10-inch LCD touch screen display, the bar graph shows the statistical distribution of sorting (re-inspection) results, the curve shows the time distribution of sorting (re-inspection) results, and the window displays the re-inspection results, standard deviation, average value. It can also preset 100 product sorting (rechecking) parameters. At the same time, it has the function of automatic learning of data filtering parameters, and can choose three data processing modes such as average value, maximum value, and latest value, which can adapt to different products, and can also perform multi-level sorting of products by weight.
Dynamic Online Checkweigher Application
The Big Range Dynamic Online Checkweigher for Heavy Products can be used in food, pharmaceutical, plastic, chemical, health products, cosmetics,electronics, daily life products industry, etc. It can be tested in pouch, bag, bottl, box.

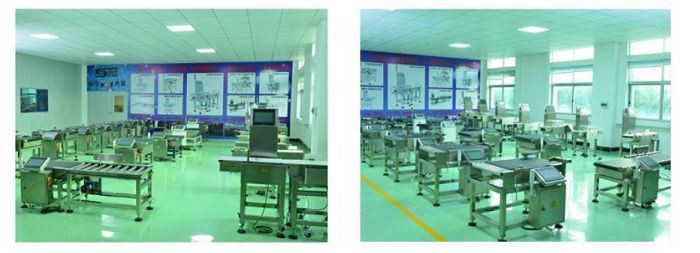

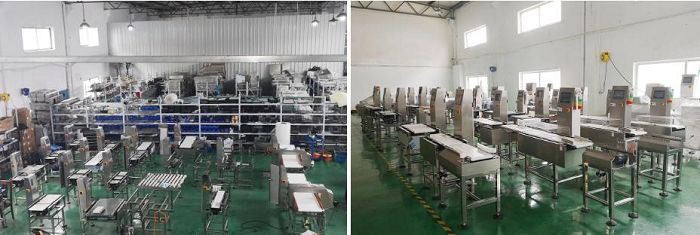

Big range checkweigher factory plant:

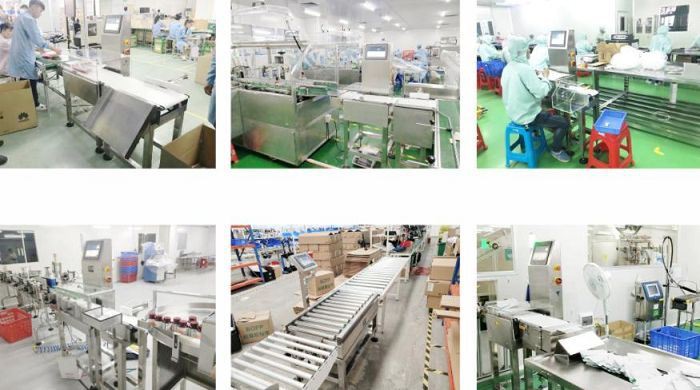

Customer cases:
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3..We provide one year warranty
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
5 .12 Months guarantee and life-long technical support.
6.Your business relationship with us will be confidential to any third party.
7.Good after-sale service offered, please get back to us if you got any questions.
