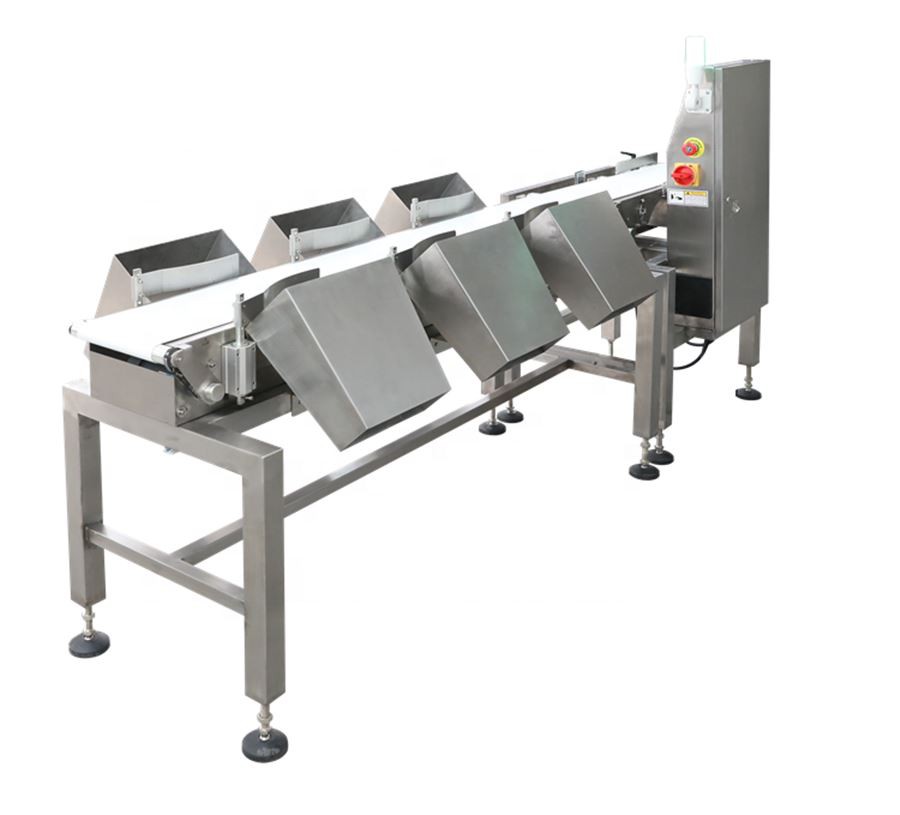

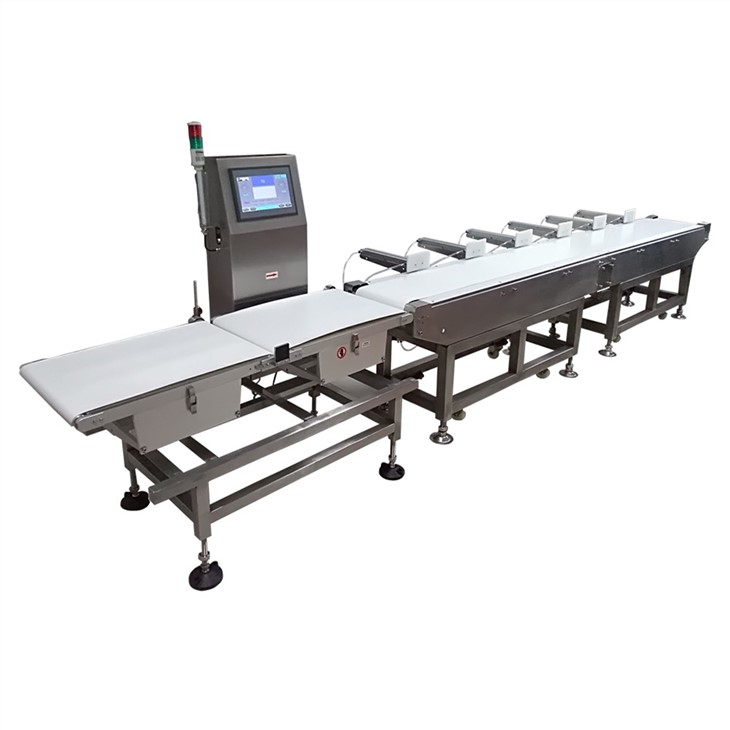

multi stage weight sorting machine for seafood meat

Features:

1.New designed mechanical structure with IP65 Protection Grade, improving the measurement accuracy and speed.

2.Mechanical designed to comply with food and pharmaceutical hygiene standards.

3.Quick release drive unit for easy cleaning and maintenance.

4.German precision load cell and high-speed weighing signal processing module, to ensure that the system is stable and accurate.

5.Intelligent parameter configuration, adjustedsortingsettings according to the productsize.

6.Easy-to-use operatingsystem and HMI interface.

7.Standard model machine can be sorted objects into 9 weighing zones .

Multi weight sorting machine parameteres:

Max.capacity: 1500g Weighing rang: 5g-1500g

Min.accuracy: ±0.5g Min.scale interval: 0.1g

Max.speed:120piece/min

Belt Length:400m Belt width:220mm

Product dimension(mm):Length≤300mm*Width≤220mm*Height≥3mm

Operation interface:10 inches color LCD screen

Operating mode: Touch operation

Transport direction:From left to right（can be custom）

The belt height: 750mm±50mm（can be custom）

Item memory:200 Products

Zero calibration :Auto Zero Tracking

Alarm mode: Automatically sorting

Sorting way:Pusher on Roller Type,Pusher on Belt Type

Sorting level: 2 level~10 level

External interface :USB,RS232/485/422，to store data Voltage signal or Switch signal

Accessory(optional): Printer, printing machine, etc

Power Source:380/220/110V 50/60Hz

Power Output: About 200W

Environment: 0℃-40℃

Remark

1.Optimum accuracy depends on the product condition,Max.speed depends on the product size and conveyor speed.

2.Above machine specifications for the standard specifications, size and other special requirements, all can be customized.

Multi weight sorting machine applied industries:

Fishery, shrimp, seafood, poultry, meat, vegetables, fruits, hydraulic products, etc.

Product function:

Automatic multi-level weight sorting machine is the automatic sorting scale (aka: weight detecting machine, weight sorting scale, weight sorting machine, automatic sorting equipment, weight sorting scale, automatic weight sorting scale, etc.) The products can be grouped, classified, and classified according to user requirements. Sorting different weight range online conveying products to different groups in accordance with preset weight range .

Exibitons:

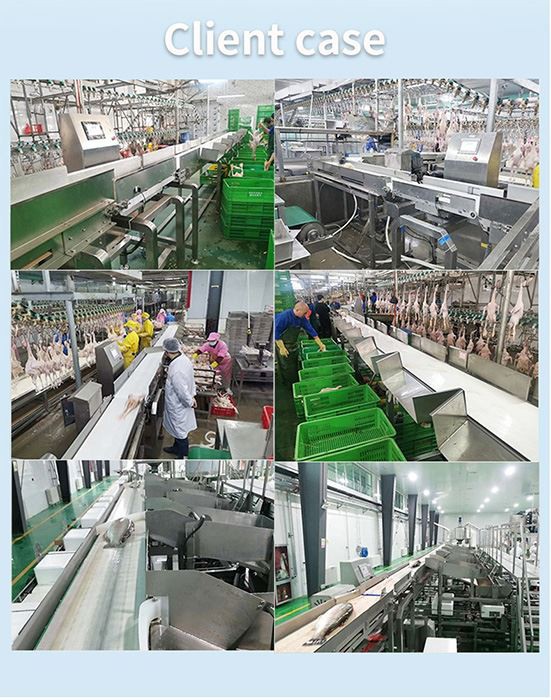

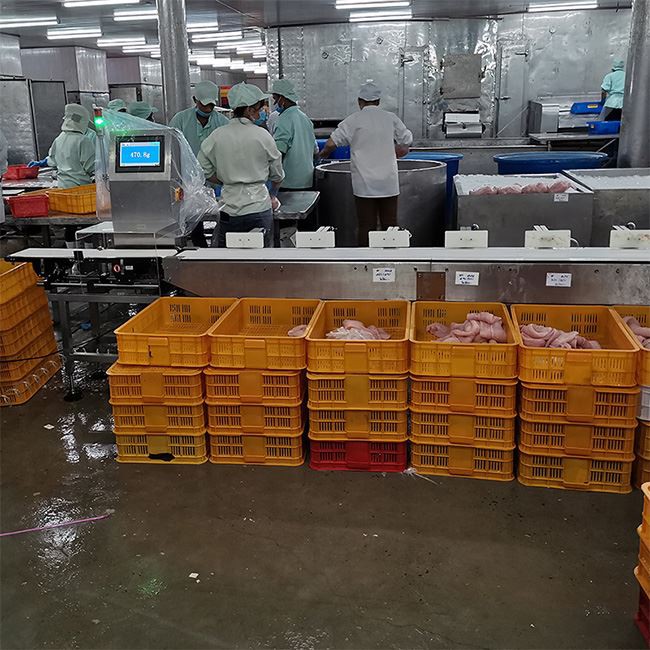

Client case:
