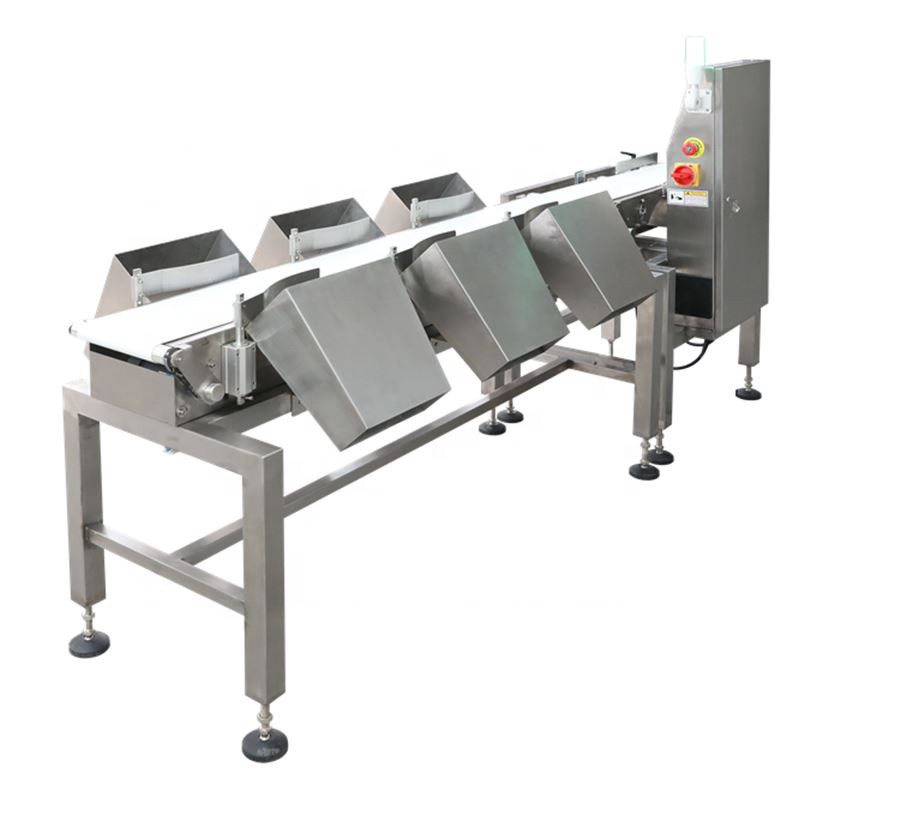

Multi-sorting checkweigher for fish

Features

Our Automatic Multi Level Sorting Checkweigher supports long-term use, accuracy is guaranteed, and no daily calibration is required. It also adopts built-in hinge design, no safety dead corners, quick installation and removal of belts, easy cleaning and maintenance. It adopts professional man-machine interface design, simple user parameter setting, and can perform automatic parameter adjustment. The parameter setting can be completed only by inputting product parameters and weighing requirements. It has user-friendly features, and the product database can store 1,000 products.

Parameteres

Max.capacity: 1500g Weighing rang: 5g-1500g

Min.accuracy: ±0.5g Min.scale interval: 0.1g

Max.speed:120piece/min

Belt Length:400m Belt width:220mm

Product dimension(mm):Length≤300mm*Width≤220mm*Height≥3mm

Operation interface:10 inches color LCD screen

Operating mode: Touch operation

Transport direction:From left to right（can be custom）

The belt height: 750mm±50mm（can be custom）

Item memory:200 Products

Zero calibration :Auto Zero Tracking

Alarm mode: Automatically sorting

Sorting way:Pusher on Roller Type,Pusher on Belt Type

Sorting level: 2 level~10 level

External interface :USB,RS232/485/422，to store data Voltage signal or Switch signal

Accessory(optional): Printer, printing machine, etc

Power Source:380/220/110V 50/60Hz

Power Output: About 200W

Environment: 0℃-40℃

Remark

1.Optimum accuracy depends on the product condition,Max.speed depends on the product size and conveyor speed.

2.Above machine specifications for the standard specifications, size and other special requirements, all can be customized.

Multi weight sorting machine applied industries:

Fishery, shrimp, seafood, poultry, meat, vegetables, fruits, hydraulic products, etc.

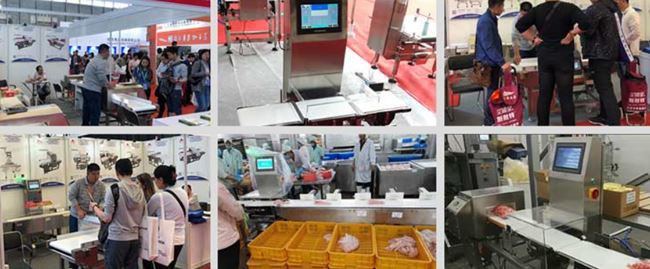

Exibitons:

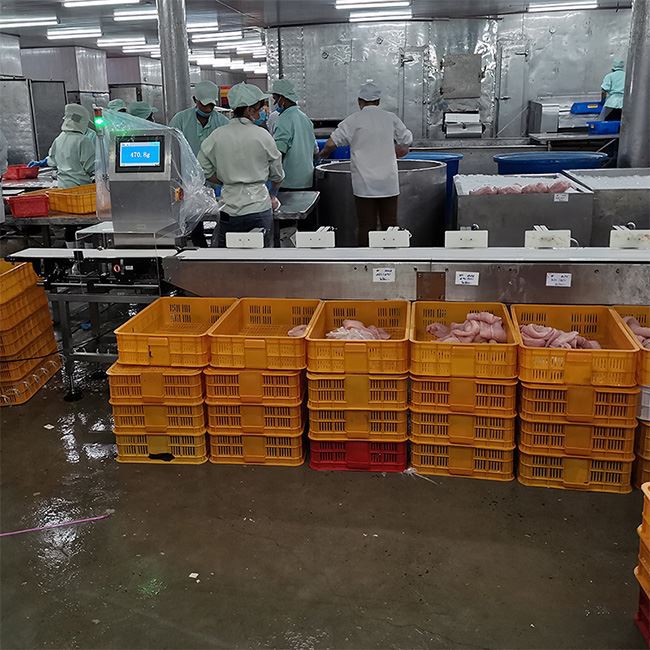

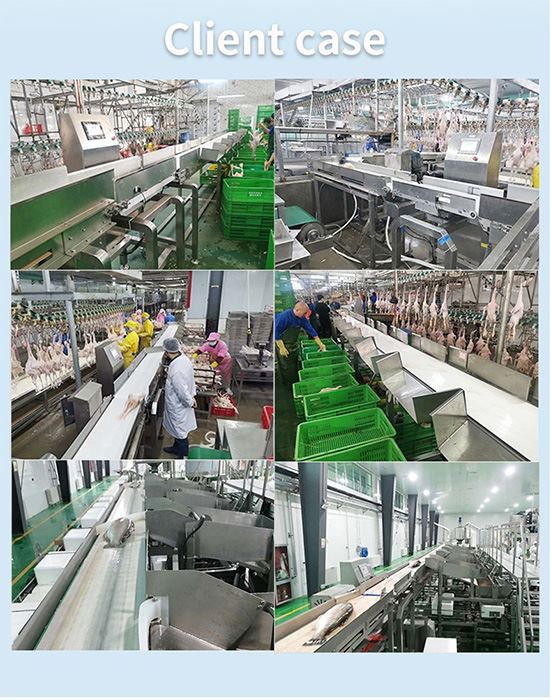

Client case:

Our Services

The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory, and see the machine running.

Customized service

We can design the machines according your requirements(materil, power, filling type, the kinds of the bottles and so on), at the same time we will give you our professional suggestion, as you know, we have been in this industry for many years.

FAQ

1.What are your company requests of payment terms?

TT,L/C,International Credit Card.

2. What is the validity time of the quotation?

15 days since quotation date

3. What is the delivery time?

Within 15 days after receipt of your deposit.
