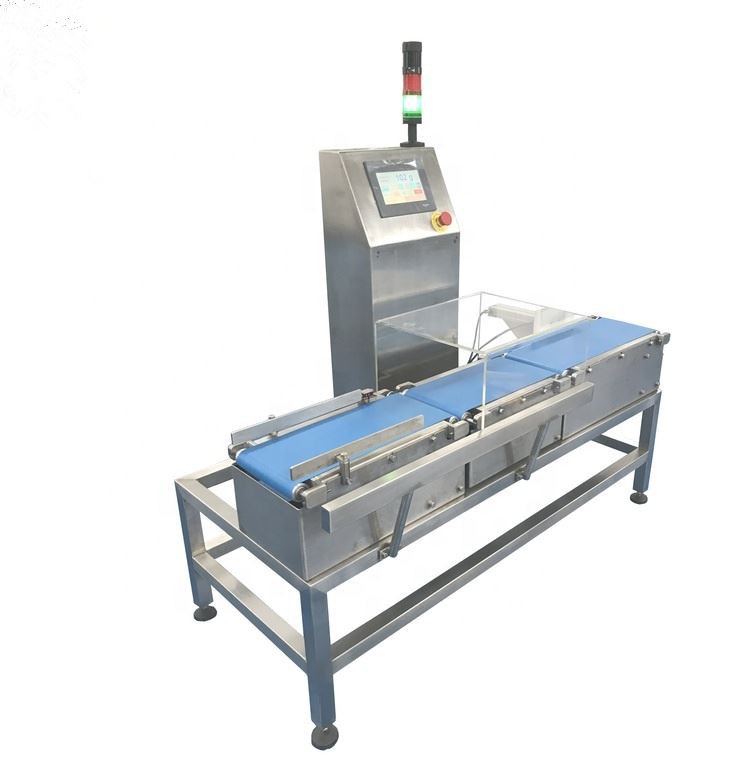

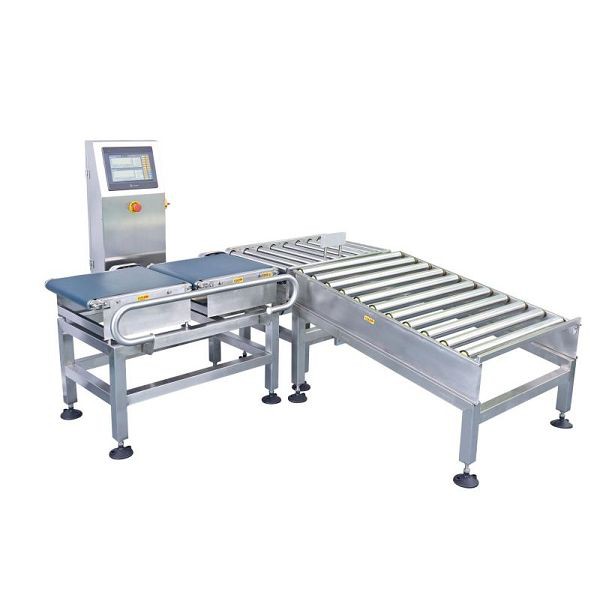

Dynamic Big box Check weigher scale
Check weigher scale Technical parameters:
Model | BTC 6040 |
power supply | AC220V±10% 50HZ（60HZ） |
rated power | 0.4KW |
Single weighing range | ≤30kg |
Range of weighing accuracy | ±5g~±15g |
conveying speed | 20～40m/min |
Measure of product | ≤450mm(L)*380mm(W) |
Weighing conveyor belt size | 600mm(L)*400mm(W) |
Remove method | Stop |
control system | High speed A/D sampling controller |
Operating Direction | Face the machine, in and out |
An external gas source | 0.6-1Mpa |
work environment | Temperature: 0 ℃ to 40 ℃, humidity: 30% ~ 90% |
The body material | SUS304 stainless steel |
Check weigher scale Features:
1. Large LCD touch screen display, Chinese and English interface, suitable for domestic and foreign customers.
2. High-precision sensor, high detection accuracy and fast detection speed.
3. The graph shows the statistical distribution of the sorting results, and the sorting dynamics can be grasped in real time.
4. 100 kinds of product sorting parameters can be preset, and different products can be quickly switched.
5. High-speed and high-precision digital filtering algorithm, data filtering parameters, automatic learning.
7. Dynamic zero-point tracking, including zero-point tracking during continuous operation of the equipment, can automatically correct the weight value.
8. Driven by variable frequency motor, effectively improve the stability of equipment operation.
9. The data transmission interface is preset, and the product sorting parameters can be set or exported via USB.
10. The photoelectric check weighing trigger mode is adopted to effectively improve the accuracy of the equipment.
11. Multiple elimination methods are optional, which can eliminate overweight or underweight products.
Check weigher scale spare parts:
brand | name | Specifications / Model | |
Wilen | touch screen | TK6071IQ 7inch | |
CAUC | sensor | 25KGaluminium | |
Omron | switching power supply | S8JC-C100 24C | |
sommer | control switch | SLD2(3LD2-32A) | |
Siemens | frequency converter | V20 frequency converter，single phase 220V， 0.55KW | |
Jhongda | motor | three phase220V 90W （7.5：1） | |
Taiwan gen | motor | three phase 220V 200W （10：1） | 1 |
AirTAC | pneumatic component | Air source processor, 24V solenoid valve, throttle valve, thread straight |
Check weigher scale application:
The pass-through intelligent checkweigher, check weight is a high-speed, high-precision online checkweighing equipment that can be integrated with various packaging production lines and conveying systems. It can detect overweight and underweight unqualified products in the assembly line in real time. It can be widely used in the production line of the pharmaceutical, food, chemical,cosmetic,electronics, dairy products, healthy products, plastic and other industries, the automatic check weighing, whether there are missing parts or less weight in the package, etc., can be automatically rejected by the rejection device.

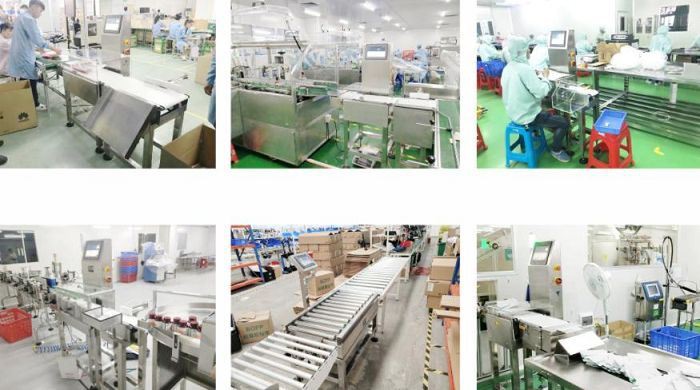

Check weigher scale customer cases:
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3..We provide one year warranty
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
5 .12 Months guarantee and life-long technical support.
6.Your business relationship with us will be confidential to any third party.
7.Good after-sale service offered, please get back to us if you got any questions.
If you want to know more online dynamic big check weigher, belt check weigher, checkweigher, welcome to contact us.
Whatsapp: +86 13418201227
Check weigher scale FAQ:
1.Are you manufacturer or trader? Where are your factory located?
We are manufacturer and we are located in Dongguan,China.
2.Are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.
3.How long is your warranty?
12 months free warranty, life-long maintenance.
4.Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.
5.What are your company requests of payment terms?
TT,L/C,International Credit Card.
6. What is the validity time of the quotation?
15 days since quotation date
7. What is the delivery time?
Within 15 days after receipt of your deposit.
