Dynamic Check Weigher machine for food package:

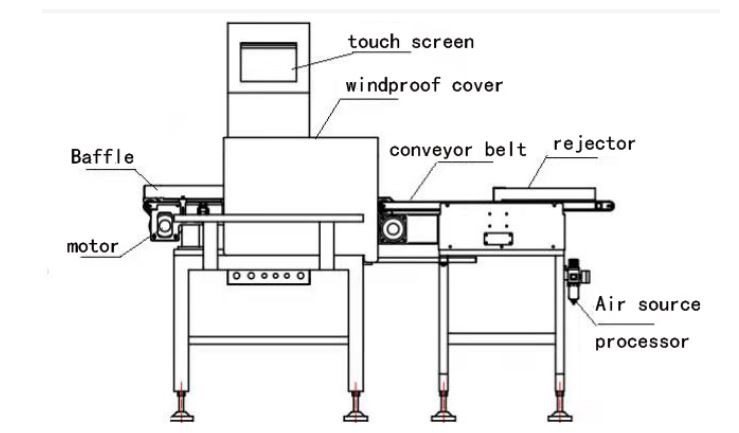

Dynamic Check Weigher machine main items introduction:
Dynamic Check Weigher machine Technical parameters:
Model | BTC 4020 |
power supply | AC220V±10% 50HZ（60HZ） |
rated power | 0.15KW |
Single weighing range | ≤10kg |
Range of weighing accuracy | ±0.5g~±1g |
conveying speed | 20～60m/min |
Measure of product | ≤280mm(L)*200mm(W) |
Weighing conveyor belt size | 400mm(L)*200mm(W) |
Remove method | Stop |
control system | High speed A/D sampling controller |
Operating Direction | Face the machine, in and out |
An external gas source | 0.6-1Mpa |
work environment | Temperature: 0 ℃ to 40 ℃, humidity: 30% ~ 90% |
The body material | SUS304 stainless steel |
Features:
1. Large LCD touch screen display, Chinese and English interface, suitable for domestic and foreign customers.
2. High-precision sensor, high detection accuracy and fast detection speed.
3. The graph shows the statistical distribution of the sorting results, and the sorting dynamics can be grasped in real time.
4. 100 kinds of product sorting parameters can be preset, and different products can be quickly switched.
5. High-speed and high-precision digital filtering algorithm, data filtering parameters, automatic learning.
7. Dynamic zero-point tracking, including zero-point tracking during continuous operation of the equipment, can automatically correct the weight value.
8. Driven by variable frequency motor, effectively improve the stability of equipment operation.
9. The data transmission interface is preset, and the product sorting parameters can be set or exported via USB.
10. The photoelectric check weighing trigger mode is adopted to effectively improve the accuracy of the equipment.
11. Multiple elimination methods are optional, which can eliminate overweight or underweight products.

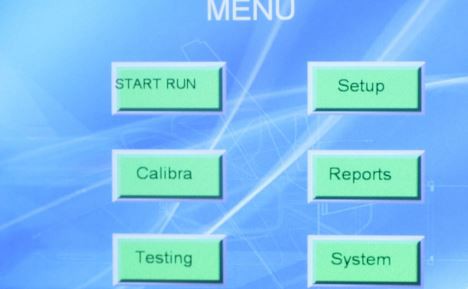

The main interface of the touch screen:
After booting up, a language selection dialog box will appear on the display. Customers can select the language they need according to their needs. You can download the reports.
Dynamic Check Weigher machine application:
The pass-through intelligent checkweigher, check weight is a high-speed, high-precision online checkweighing equipment that can be integrated with various packaging production lines and conveying systems. It can detect overweight and underweight unqualified products in the assembly line in real time. It can be widely used in the production line of the pharmaceutical, food, chemical,cosmetic,electronics, dairy products, healthy products, plastic and other industries, the automatic check weighing, whether there are missing parts or less weight in the package, etc., can be automatically rejected by the rejection device.
Installation environment:
①The power supply voltage does not fluctuate more than ±10%;
②Places without high-power and high-frequency switches;
③A place where there is no volatile flammable and corrosive gas;
④ A place without ground vibration;
⑤Places without high-temperature heaters nearby.

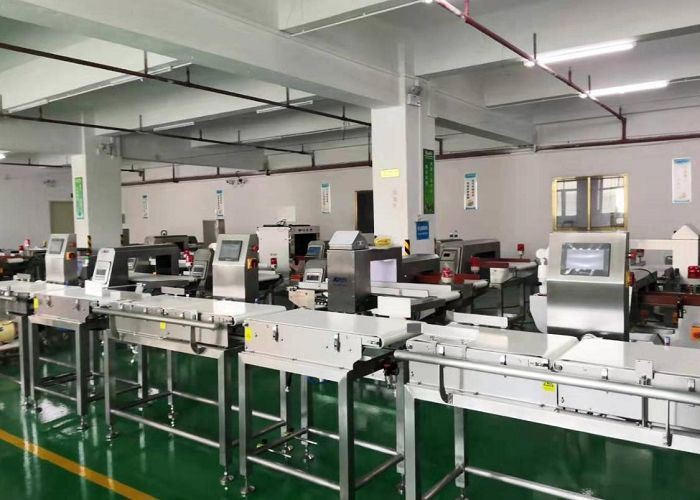

Check Weigher Machine factory plant:

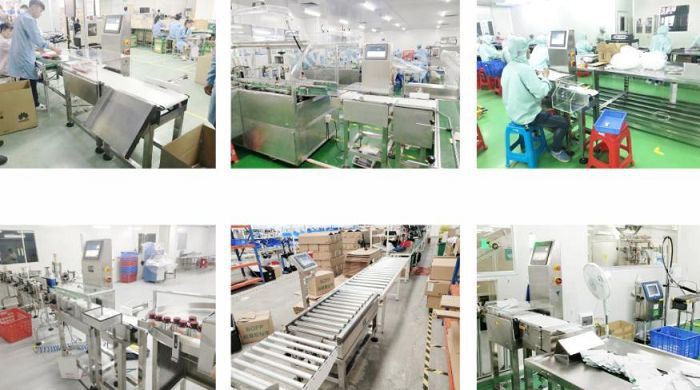

Conveyor belt check weight customer cases:
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3..We provide one year warranty
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
5 .12 Months guarantee and life-long technical support.
6.Your business relationship with us will be confidential to any third party.
7.Good after-sale service offered, please get back to us if you got any questions.
Dynamic Check Weigher machine Certificate:
The dynamic weight sorting scale is a cost-effective weight testing equipment that meets the requirements of high-precision weight measurement under high-speed conditions. Although the humanized structural design of the dynamic weight sorting scale makes the installation of the equipment very simple, it is recommended that you install it according to the following steps.
Check before installation:
①When you have a new dynamic weight sorting scale, it is recommended that you check the equipment according to the following steps.
Check whether there is any damage caused by transportation. If the wooden box is found to be seriously damaged, you should contact the manufacturer to replace the equipment immediately.
②Check the whole machine. If you find the external damage of the equipment, the equipment does not work normally, or the performance test fails, please contact our company's after-sales service department.
③If the equipment is damaged due to transportation, please keep the packaging and notify the transportation department and our company's after-sales service department. The after-sales service department will arrange repair or replacement.
