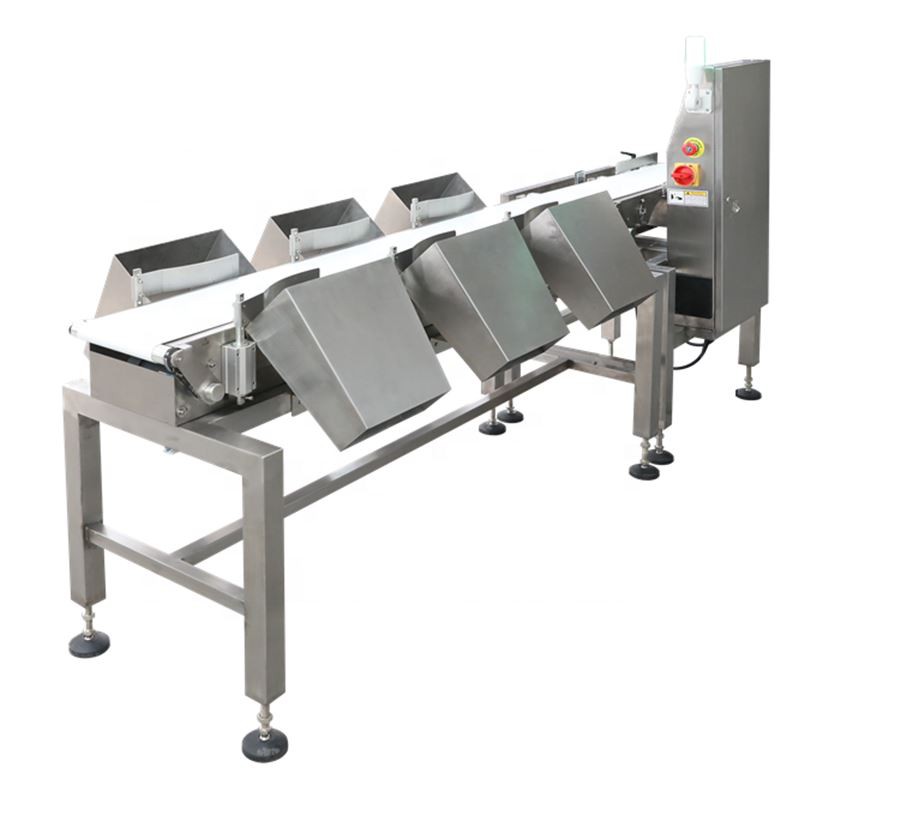

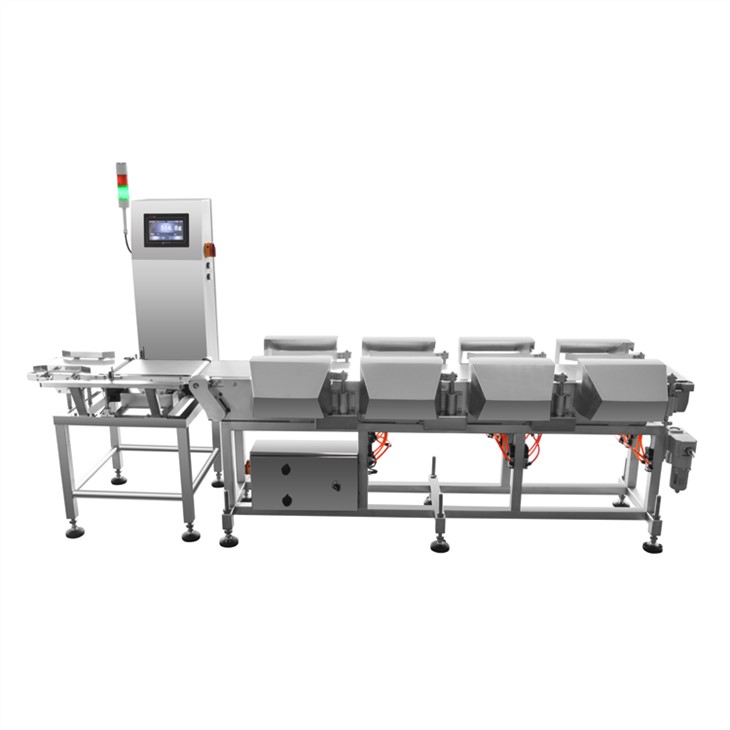

Automated weight multi-sorting machine for food proccessing line

Max.capacity: 1500g Weighing rang: 5g-1500g

Min.accuracy: ±0.5g Min.scale interval: 0.1g

Max.speed:120piece/min

Belt Length:400m Belt width:220mm

Product dimension(mm):Length≤300mm*Width≤220mm*Height≥3mm

Operation interface:10 inches color LCD screen

Operating mode: Touch operation

Transport direction:From left to right（can be custom）

The belt height: 750mm±50mm（can be custom）

Item memory:200 Products

Zero calibration :Auto Zero Tracking

Alarm mode: Automatically sorting

Sorting way:Pusher on Roller Type,Pusher on Belt Type

Sorting level: 2 level~10 level

External interface :USB,RS232/485/422，to store data Voltage signal or Switch signal

Accessory(optional): Printer, printing machine, etc

Power Source:380/220/110V 50/60Hz

Power Output: About 200W

Environment: 0℃-40℃

Remark

1.Optimum accuracy depends on the product condition,Max.speed depends on the product size and conveyor speed.

2.Above machine specifications for the standard specifications, size and other special requirements, all can be customized.

Applied industries:

Fishery, shrimp, seafood, poultry, meat, vegetables, fruits, hydraulic products, etc.

Product function:

Sorting different weight range online conveying products to different groups in accordance with preset weight range .

Parameters:

Touch Screen 10.1 inch

Weighing range :5~1000g

Minimum scale: 0.1g

Sorting accuracy :± 0.2g~±1g

Detection object size: L (mm):1~300W(mm):1~200 H (mm):1~100

Weighing section size: L 400mm * W 220mm

Belt height from ground :680mm~750mm(Customized Height)

Sorting Method: 6 outputs Sorting

Material:Surface 304 stainless steel surface polishing

Language: Chinese / English (more languages can be customized)

Input voltage / power: Single Phase AC220V 50Hz/300W

Machine Weight: 200Kg

Features:

1) man-machine interaction of touch screen.
2)English-Chinese operation interface.
3) function of weight compensation.
4) Analyzing qualified rate of products with bar chart and graph.
5) secondary operation rights management, supporting self-set password.
6)Preset storage of 100 production formulas.
7)Several elimination methods of faulty products, supporting faulty stop function.

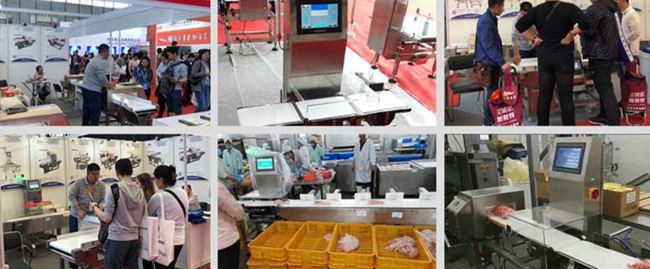

Exibitons:

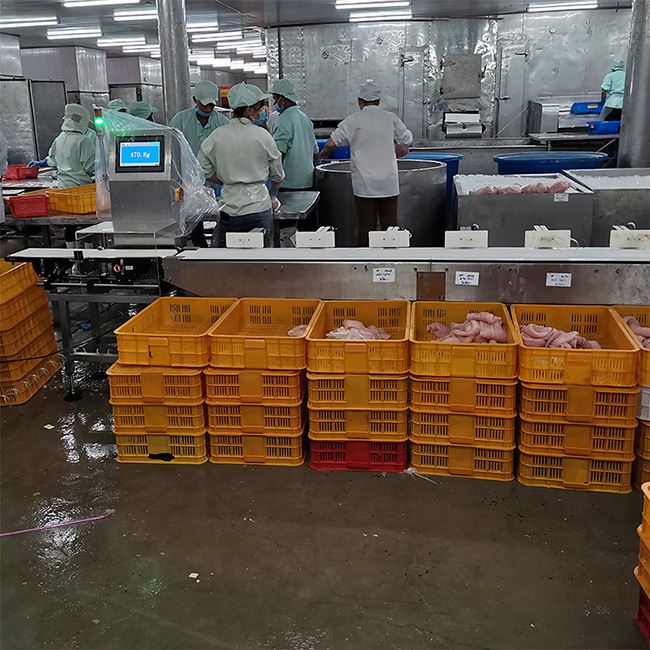

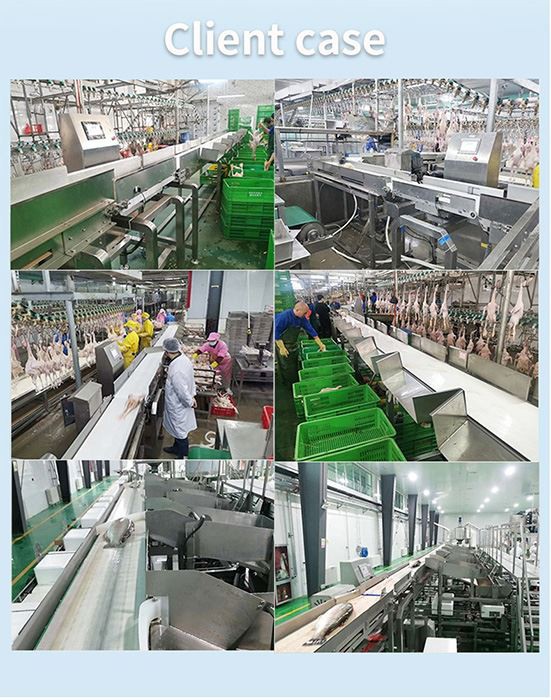

Client case:
