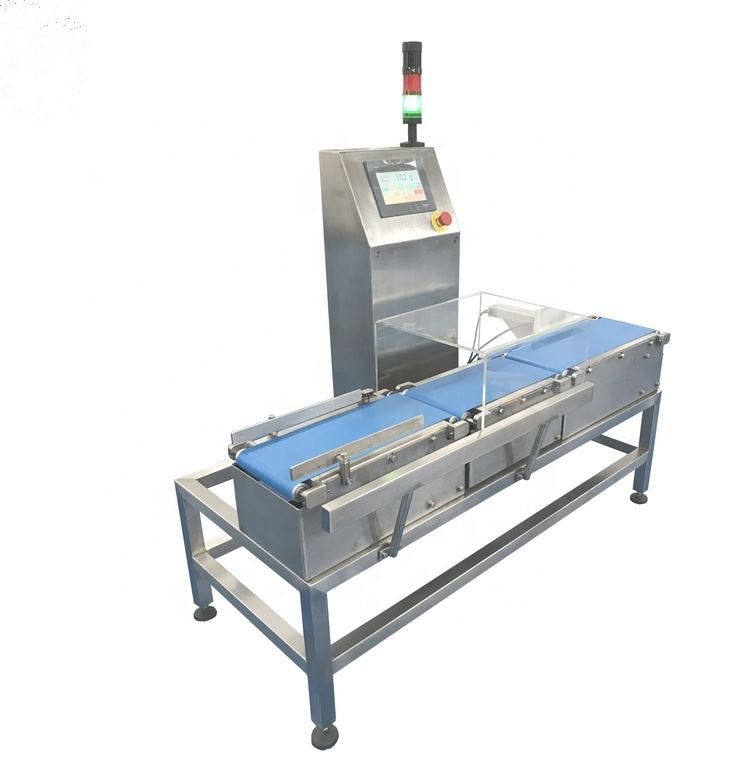

Automatic Online Check Weigher
Product Information
The Automatic Online Check Weigher adopts the continuous dynamic automatic weighing method to detect the weight of the items, and is equipped with an automatic rejection mechanism to realize high-speed and high-precision weight detection and sorting on the assembly line. It is suitable for filling shortage inspection of finished products in the small packaging industry. The unique mechanical structure and operation interface are designed, which is very convenient for users to operate and data management statistics.
The machine is used for packaging inspection, so as to realize the full inspection of products and leave the factory, and at the same time, it also achieves the effect of saving labor.
Features
The Automatic Online Check Weigher adopts special digital weighing module for sorting machine and imported high-precision sensor, and the weighing is stable. It uses a variable frequency motor to drive the conveyor belt, with reliable performance and free speed regulation. Both the conveyor belt and the synchronous belt are imported brand products with long service life. It also adopts a modular conveyor belt design for easy disassembly and belt replacement. It is equipped with a Chinese display operation window, a professional sorting machine application program, and powerful application functions. It has the number of qualified and unqualified statistics display, data recording function, easy to operate.
Parameter
type | 2021 |
power supply | AC220V±10% 50HZ（60HZ） |
rated power | 0.15KW |
Single weighing range | ≤2kg |
Range of weighing accuracy | ±0.3g~±1g |
minimum scale | 1g |
conveying speed | 0～100m/min |
· Weighing speed | 160 pcs/min |
Measure of product | <280mm(L)*210mm(W) |
the size of the conveyor belt | 1500mm(L)*210mm(W) |
product size | 1522mm(L)*560mm(W) *1222mm(H) |
· Remove method | · push lever (or give signal) |
control system | High speed A/D sampling controller |
Preset the product number | 2000pcs |
· Operating Direction | Face the machine, in and out |
An external gas source | 0.6-1Mpa |
Air interface | Φ8mm |
work environment | Temperature: 0 ℃ to 40 ℃, humidity: 30% ~ 95% |
The body material | SUS304 stainless steel |
Application
This Automatic Online Check Weigher is mainly suitable for the weight detection of large weight and large volume items, especially suitable for the detection of missing parts in the whole box, such as lack of bottles, lack of boxes, lack of one, missing pieces, lack of bags, lack of cans, etc.

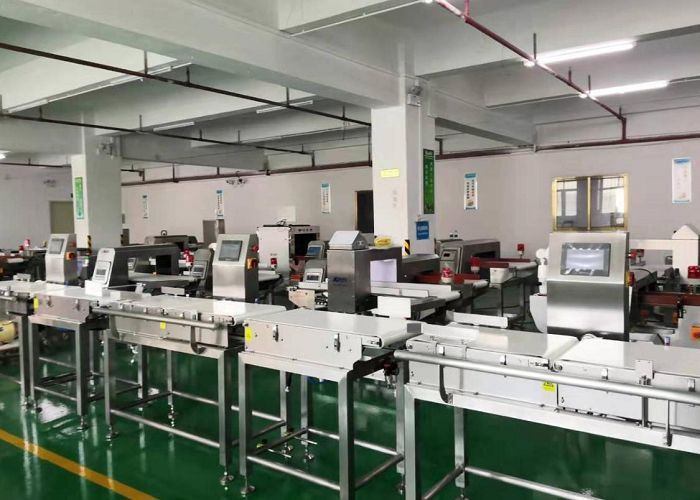

Onlineconveyor belt dynamic check weigher factory plant:

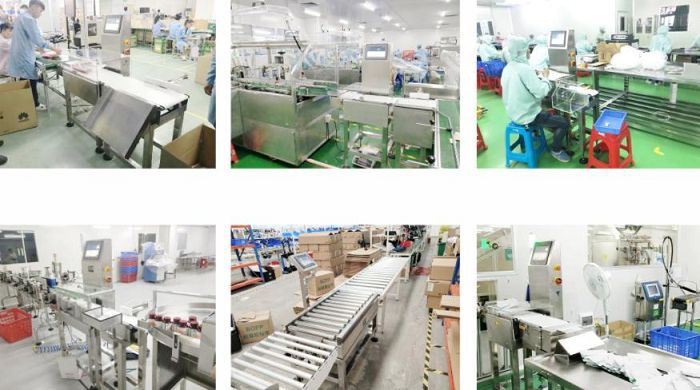

Conveyor belt check weigher system of customer cases:
Certificate:
Shipping:
standard wooden case.
