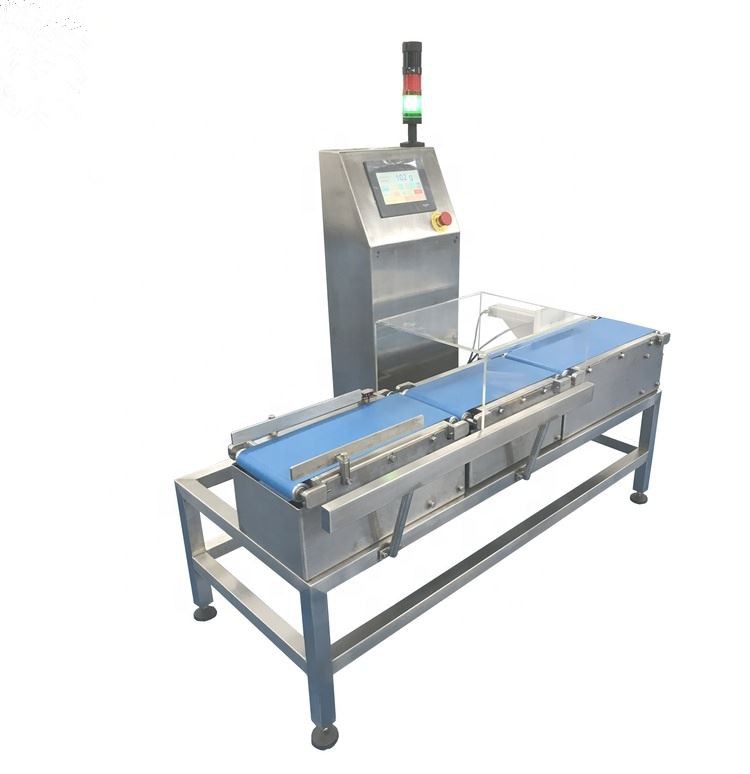

Dynamic Case Box Check Weigher

smal belt dynamic check weigher system for Features:

1. Weighing and sorting technology: domestic sorting accuracy ±0.05g, sorting speed 200 times/min.

2. Accurate product sorting function: digital weighing unit and zero point automatic analysis, provide production trend feedback signals, adjust the packaging accuracy of upstream packaging machines, and reduce costs.

3. Powerful data traceability function: inquiry and printing of unqualified products, statistical charts such as histograms and yield charts can be generated during the sorting process, and a built-in data transmission system is convenient for production control.

4. Domestic market share: Whether it is the scope of industry application or customer groups, dong guan bestar will remain in the industry, with all aspects of application experience and technology accumulation.

5. Comprehensive operation yield: Weighing detection and sorting action is flexible in the industry, stable operation, with power-off data storage and fault self-checking alarm function.

6. Humanized design and easy operation: 10-inch color touch screen operation interface, which can store 100 varieties, flexible sorting and switching, realizing non-stop switching products; modular design, conveyor belt buckle design, easy maintenance and cleaning.

7. The domestic shunt rejection device prevents the product from falling down and spilling the material during the sorting process, and ensures the integrity of the test object.

8. Development and customization, supporting integration capabilities: various applicable solutions can be customized to meet the requirements of different products and different environments, and be connected to metal detectors, packaging machines and other equipment

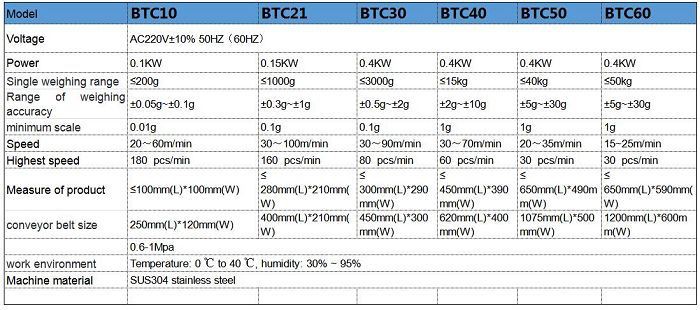

Conveyor belt online checkweight parameter:

Voltage:220V, 50hz

accuracy:0.05-0.1g

Conveyor belt dynamic check weigher application:

The automatic weight detection machine performs weighing detection on the finished product according to the high-speed dynamic weight reading method. According to the set target weight value, the system automatically detects whether the weight of the product is qualified, whether the quantity of the product in the box is missing, whether the manual or accessories are missing or more than The weight is automatically graded, and it can also be used in conjunction with the subsequent assembly line to automatically remove defective products in a chain action (optional). Also known as: underweight detector, weight sorting scale, weight sorting machine, rechecking machine, automatic weighing machine, checkweigher, checkweighing scale,

The test objects are weighed and inspected by the checkweigher, the qualified ones are sent back to the original conveyor belt, the unqualified ones are rejected (or alarmed), and it has the functions of automatic classification and statistics of the products; the entire inspection has the original packaging line There is no major change in the workflow. It can save manpower and increase productivity to achieve the purpose of controlling product quality and improving customer satisfaction. It is a quality inspection equipment for automatic production lines and packaging lines.

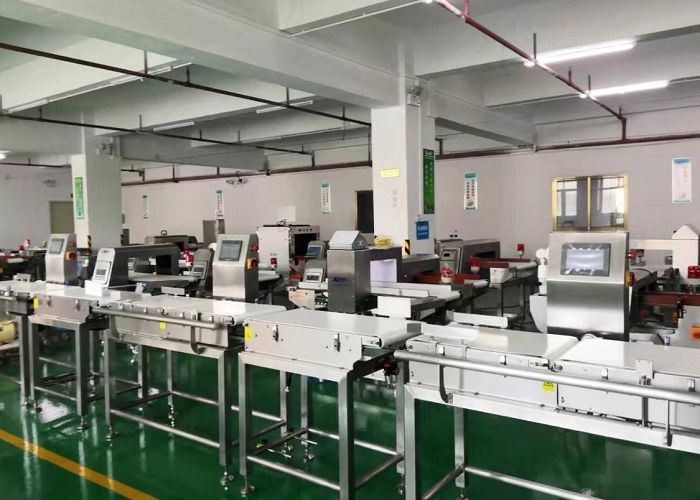

Onlineconveyor belt dynamic check weigher factory plant:

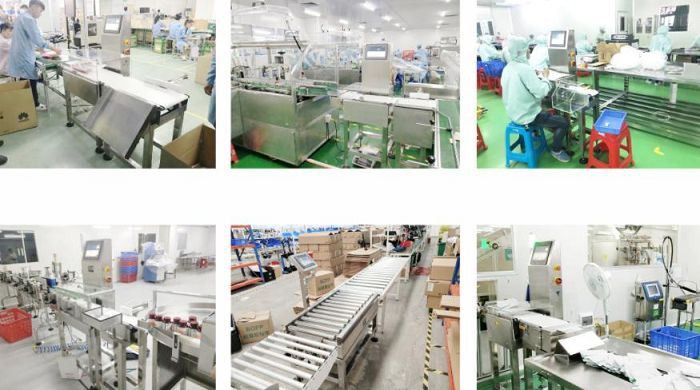

Conveyor belt check weigher system of customer cases:

The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.

After-sales service

1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
   2.. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
   3..We provide one year warranty
   4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
   5 .12 Months guarantee and life-long technical support.
   6.Your business relationship with us will be confidential to any third party.
   7.Good after-sale service offered, please get back to us if you got any questions
