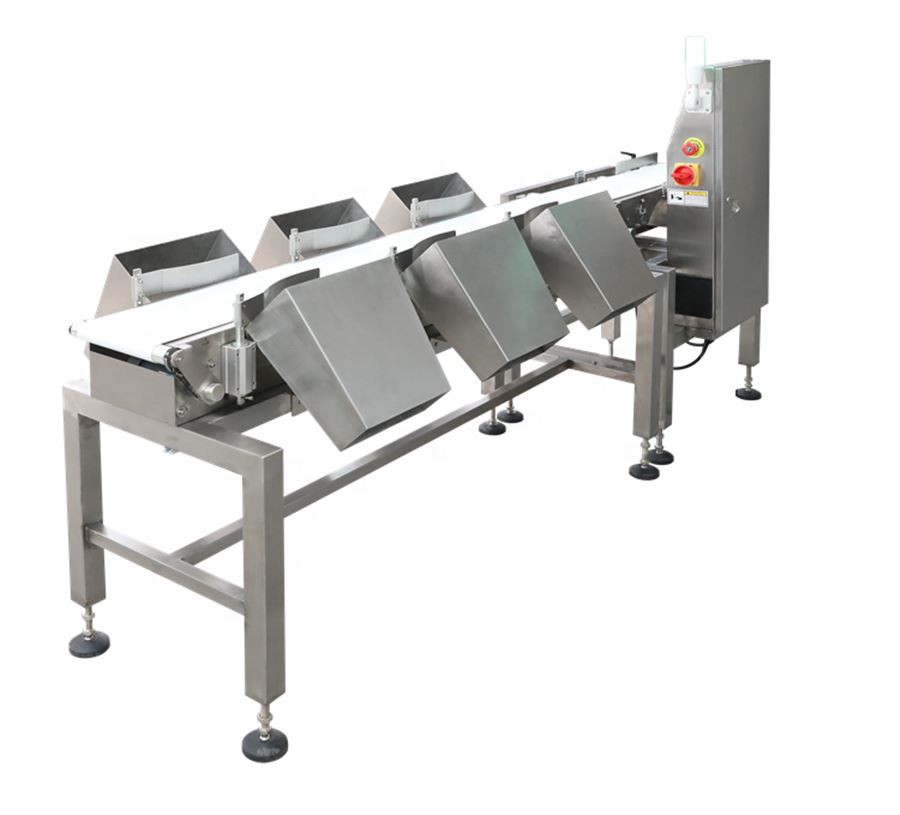

Auto multi-level check weigher for chicken

Product Information:

This Auto Multi-Level Check Weigher For Chicken is a production line automatic check weigher that is commonly used in sectors such as fishing, shrimp, seafood, poultry, meat, vegetables, fruits, hydraulic goods, and others. It can sort different weight ranges online and deliver products to separate groups based on the weight range that has been defined. Unqualified products in the production line that are overweight or underweight can be discovered online in real-time.

Parameters:

Touch Screen 10.1 inch

Weighing range :5~1000g

Minimum scale: 0.1g

Sorting accuracy :± 0.2g~±1g

Detection object size: L (mm):1~300W(mm):1~200 H (mm):1~100

Weighing section size: L 400mm * W 220mm

Belt height from ground :680mm~750mm(Customized Height)

Sorting Method: 6 outputs Sorting

Material:Surface 304 stainless steel surface polishing

Language: Chinese / English (more languages can be customized)

Input voltage / power: Single Phase AC220V 50Hz/300W

Machine Weight: 200Kg

Features:

1. A high-speed, stable, and dependable weighing control system!

2. Digital weighing sensor with high precision, high-speed digital filter processing, and automated zero tracking.

3. Compared to similar goods, the unique dynamic weighing anti-interference correction technology, weighing accuracy, and weighing speed is considerably superior.

4. The highest sorting speed is 5 times per second, and the best precision is 0.02g.

5. 100 different product preset functions, free switching, humanized operating system design, simple and easy to grasp, several language versions are available as an alternative.

6. Production data report feature, which allows you to immediately assess the status of your production, data output function, and output printing function.

7. To swiftly integrate into the production system control center and achieve equipment connections, a variety of communication protocol interfaces can be implemented.

8. Can be effortlessly connected to downstream assembly line equipment like metal detectors, automatic scanners, and so forth.

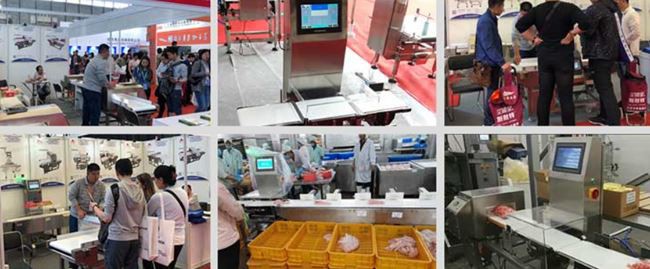

Exhibition:

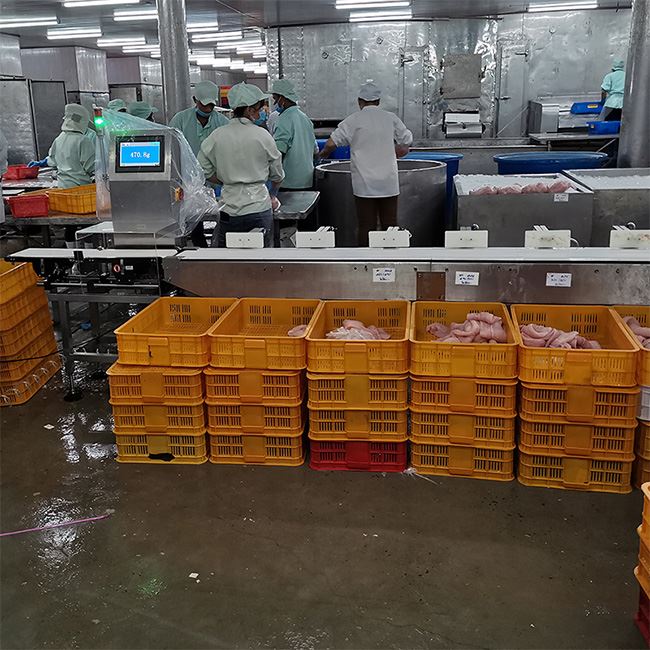

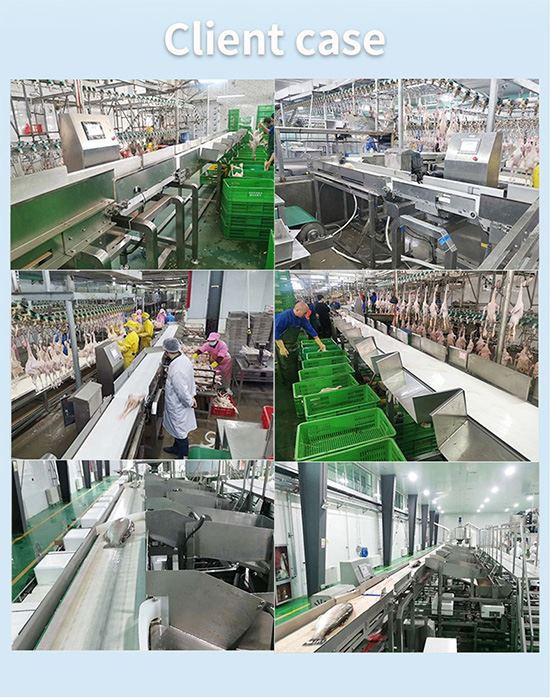

Client case:
