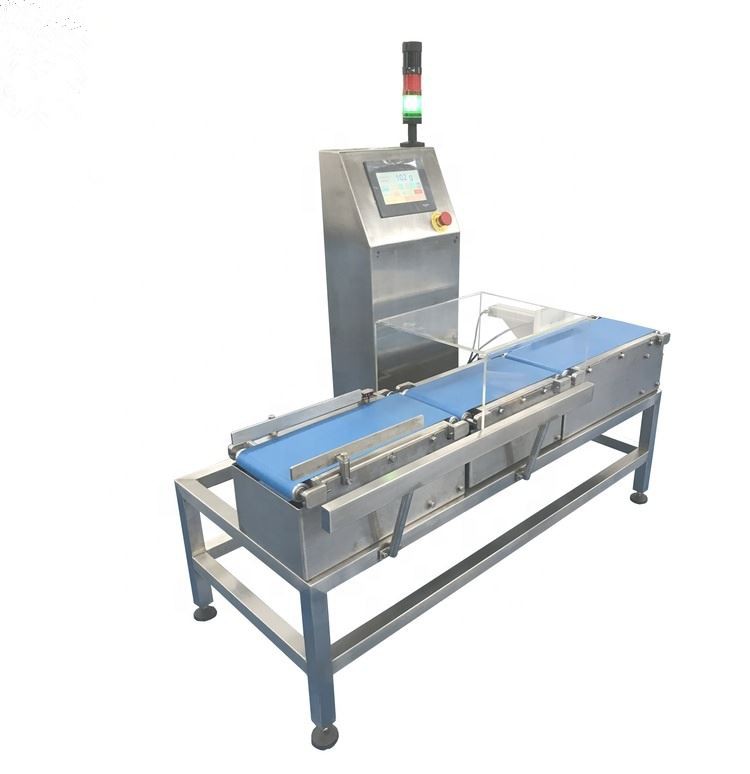

inline pharma check weighing
The automatic check weighing machine is widely used in medicine, fine chemicals, cosmetics, light industry, batteries, health products, food and other industries that require precise weight testing. The automatic weighing and sorting machine with USB data storage interface can report The data is transferred to a PC for analysis and printing.
automatic inline check weighing for Features:
1. apply advanced digital signal processing and realize high speed and stable weighing.
2. with liquid crystal and tangibly screen, it is easy to operate.
3. self-diagnosis function, when Rom/Ram, A/D light electric tube.
4.Belt disassembling without tools, which is easier to clean
5.Automatic stop by sound and light .air blast. or penumatic push rod
emergency stop button for safety working condition(according to customers choosing)
6.Solid SUS304 stainless steel structure enable for good performance
automatic inline check weighing parameter:
type | BTC40 |
power supply | AC220V±10% 50HZ（60HZ） |
rated power | 0.4KW |
Single weighing range | ≤15kg |
Range of weighing accuracy | ±2g~±12g |
minimum scale | 1g |
conveying speed | 30～70m/min |
· Weighing speed | 60 pcs/min |
Measure of product | ≤450mm(L)*390mm(W) |
the size of the conveyor belt | 620mm(L)*400mm(W) |
Remove method | · push lever (or give signal) |
control system | High speed A/D sampling controller |
Preset the product number | 2000pcs |
· Operating Direction | Face the machine, in and out |
An external gas source | 0.6-1Mpa |
Air interface | Φ8mm |
work environment | Temperature: 0 ℃ to 40 ℃, humidity: 30% ~ 95% |
The body material | SUS304 stainless steel |
automatic inline check weighing spare parts:
brand | name | Specifications / Model | |
Wilen | touch screen | TK6071IQ 7inch | 1 |
CAUC | sensor | 25KGaluminium | 1 |
Omron | switching power supply | S8JC-C100 24C | 1 |
sommer | control switch | SLD2(3LD2-32A) | 1 |
Siemens | frequency converter | V20 frequency converter，single phase 220V， 0.55KW | 1 |
Jhongda | motor | three phase220V 90W （7.5：1） | 1 |
Taiwan gen | motor | three phase 220V 200W （10：1） | 1 |
AirTAC | pneumatic component | Air source processor, 24V solenoid valve, throttle valve, thread straight |
Conveyor belt dynamic check weigher application:
The test objects are weighed and inspected by the checkweigher, the qualified ones are sent back to the original conveyor belt, the unqualified ones are rejected (or alarmed), and it has the functions of automatic classification and statistics of the products; the entire inspection has the original packaging line There is no major change in the workflow. It can save manpower and increase productivity to achieve the purpose of controlling product quality and improving customer satisfaction. It is a quality inspection equipment for automatic production lines and packaging lines.

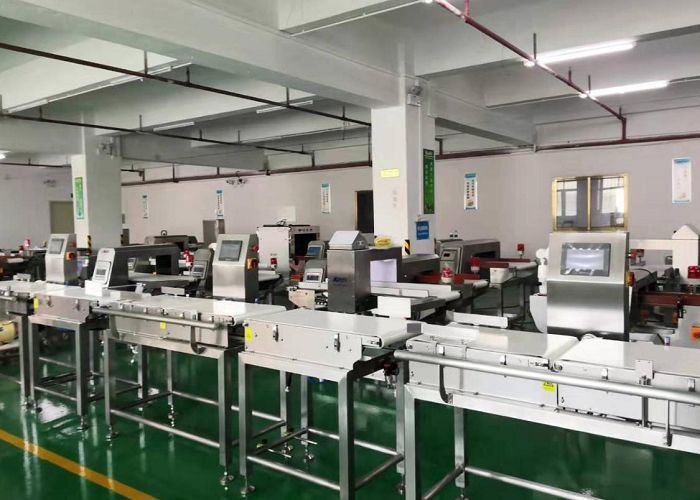

inline check weighing factory plant:

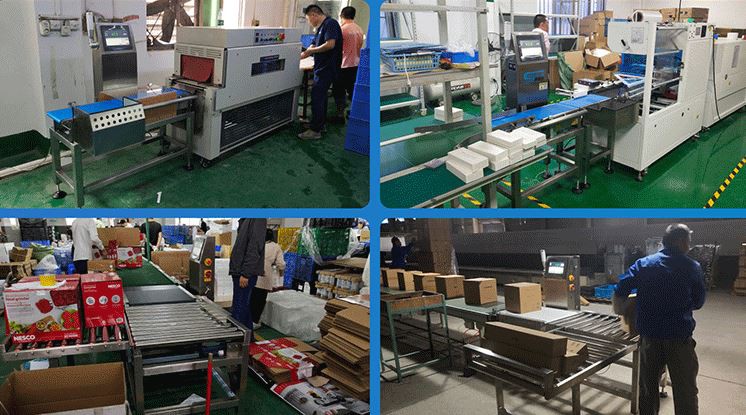

inline check weighing customer cases:
Certificate:
Pre-sales service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
After-sale service:
1.We will guarantee the machine quality for 1 years.
2.We provide free training and answer customer's question on technology in time.
Shipping:
FAQ:
1. What about your Weighing sorter machine quality?
Our factory has years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer’s good reputation.
2. What about your Weighing sorter machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3.Can you send me the video to show how the Weighing sorter machine work?
Certainly, we have made video of every machine and uploaded them by our chain address.Pls. contact with us, we will send you machine video.
4.What about your installation service and sales service for Weighing sorter machine?
1>Guarantee is two year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2>We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3>It is free to train your worker in our factory or in your side or by video.
