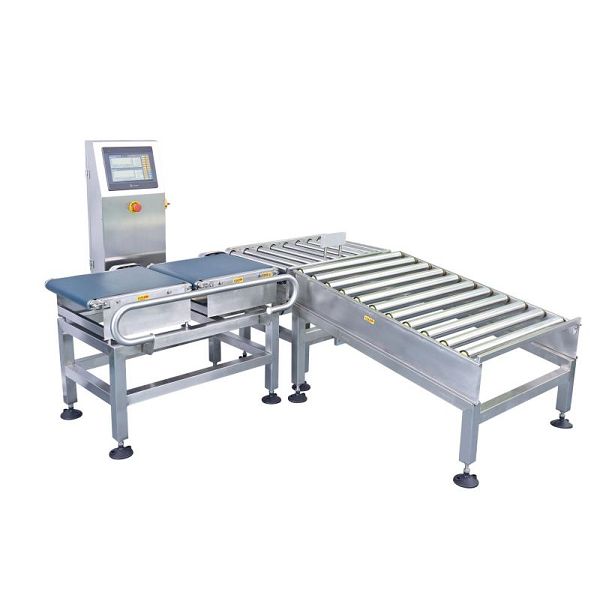

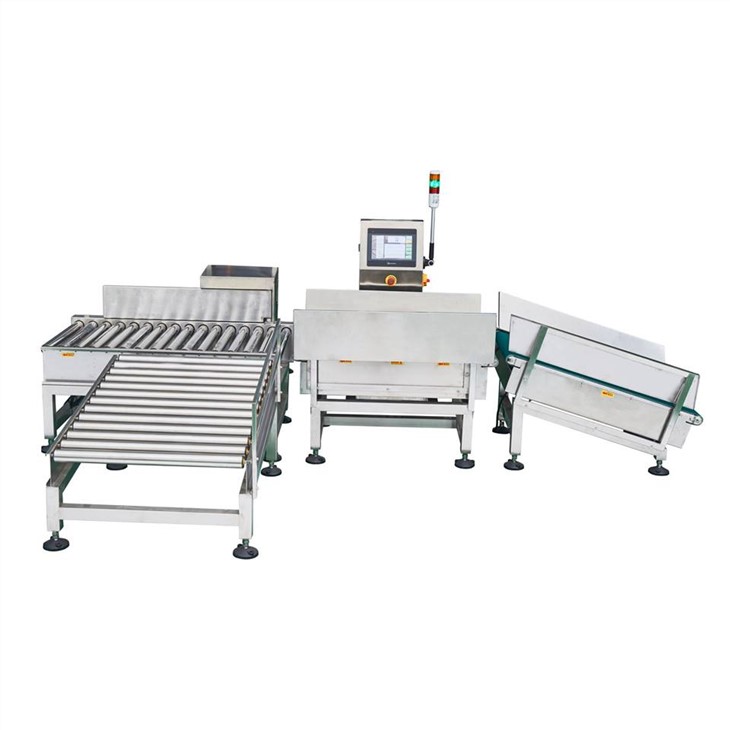

30kg heavy load inline check weighing machine
This heavy load inline check weighing machine is mainly suitable for the weight detection of heavy and bulky items, especially for the detection of missing items in the whole box; such as: missing bottles, missing boxes, missing pieces, missing pieces, missing bags, missing cans, etc.
30kg heavy load inline check weighing machine for Features:
1. SIEMENS PLC and 7" touch screen, more stability and easier to operate;
2.Apply HBM load cell ensure high accuracy and stability (original from Germany);
3. Reject arm, air blast or pneumatic pusher for selecting;
4. Belt disassembling without tools, which is easier to clean;
5.Install emergency switch at the size of machine, user friendly operation;
6.Arm device show clients clearly for the production situation (optional);
30kg heavy load inline check weighing machine parameter:
type | BTC60 |
power supply | AC220V±10% 50HZ（60HZ） |
rated power | 0.4KW |
Single weighing range | ≤40kg |
Range of weighing accuracy | ±5g~±30g |
minimum scale | 1g |
conveying speed | 20～35m/min |
· Weighing speed | 60 pcs/min |
Measure of product | ≤650mm(L)*490mm(W) |
the size of the conveyor belt | 1075mm(L)*500mm(W) |
Remove method | · push lever (or give signal) |
control system | High speed A/D sampling controller |
Preset the product number | 2000pcs |
· Operating Direction | Face the machine, in and out |
An external gas source | 0.6-1Mpa |
Air interface | Φ8mm |
work environment | Temperature: 0 ℃ to 40 ℃, humidity: 30% ~ 95% |
The body material | SUS304 stainless steel |
30kg heavy load inline check weighing machine spare parts:
brand | name | Specifications / Model | |
Wilen | touch screen | TK6071IQ 7inch | 1 |
CAUC | sensor | 25KGaluminium | 1 |
Omron | switching power supply | S8JC-C100 24C | 1 |
sommer | control switch | SLD2(3LD2-32A) | 1 |
Siemens | frequency converter | V20 frequency converter，single phase 220V， 0.55KW | 1 |
Jhongda | motor | three phase220V 90W （7.5：1） | 1 |
Taiwan gen | motor | three phase 220V 200W （10：1） | 1 |
AirTAC | pneumatic component | Air source processor, 24V solenoid valve, throttle valve, thread straight |

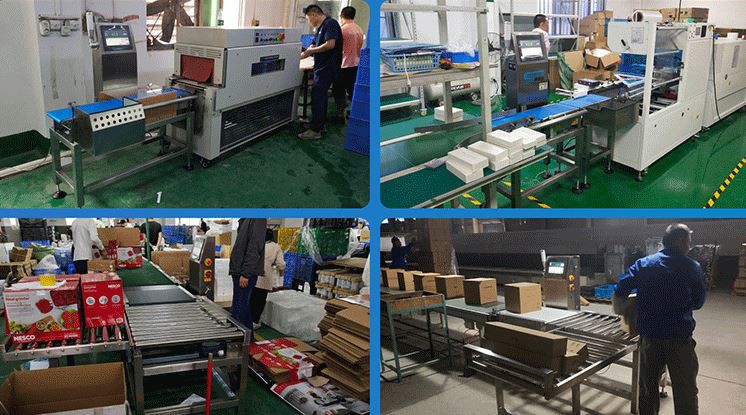

30kg heavy load inline check weighing machine customer cases:
Shipping:
FAQ:
1. What about your Weighing sorter machine quality?
Our factory has years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer’s good reputation.
2. What about your Weighing sorter machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
