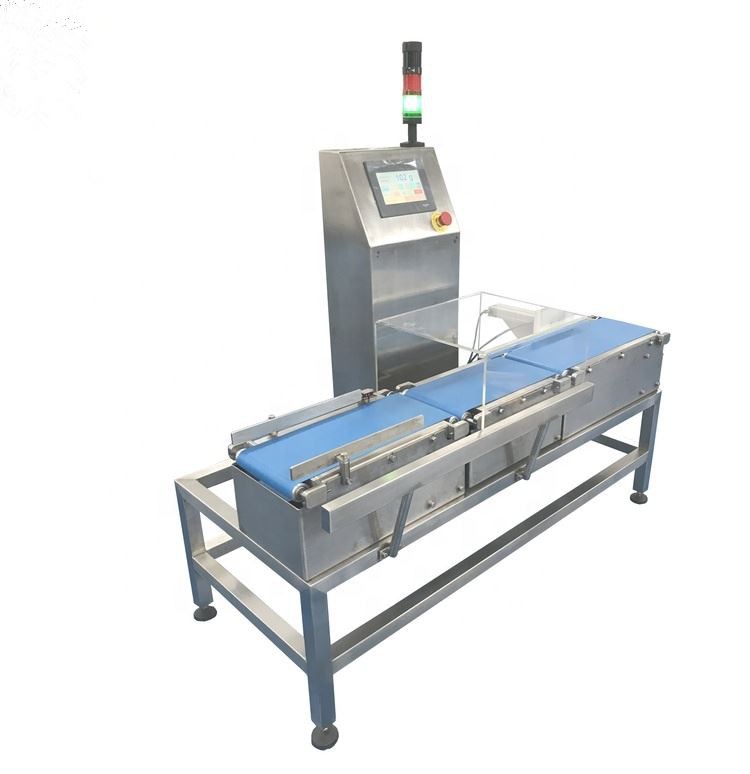

Toy online automatic checkweigher
Toy online automatic checkweigher application: Widely used in the detection of missing parts for all kinds of toys, such as the detection of missing pieces of Lego blocks, the lack of parts for assembled toys, and the detection of remote controls or manuals for remote control toys.
Toy online automatic checkweigher for Features:
■Equipped with Donguan bestar's self-developed online dynamic weighing control system, automatic zero tracking system, to ensure reliable detection data, built-in temperature and noise compensation system to ensure system stability, many years of client practical application verification, stable and reliable.
■High-precision digital weighing sensor system, high-speed digital filter processing and automatic zero tracking function, to ensure high-speed and high-precision.
■The industry's unique dynamic weighing anti-jamming correction technology, the actual weighing accuracy and weighing speed double to ensure that it is far superior to similar equipment.
■100 kinds of product presets, free switching, humanized operating system design, easy to learn and operate, multiple language versions are available.
■Multiple password protection, system parameter, product parameter setting password protection, only management personnel operation.
■Easy to integrate into the user assembly line, production data report function, quickly understand the production status, data storage, output and printing functions.
■Multiple rejection devices: air blowing type, lever type, roller push rod type, belt push rod type (can be customized according to customer needs).
■The conveyor adopts aluminum alloy oxidation treatment, the control box adopts high-grade stainless steel, and the stainless steel frame adopts wire drawing treatment. It has the characteristics of beautiful appearance and corrosion resistance. The mechanical structure is simple and easy to disassemble, clean and maintain; protection grade IP54, IP65 (customization required).
■A variety of communication protocol ports can be added, which can be quickly integrated into the production system control center to realize the interconnection between equipment.
■It can be integrated with metal detectors, barcode scanners, labeling machines, automatic coding machines, automatic sealing machines, etc.
Toy online automatic checkweigher parameter:
type | 2021 |
power supply | AC220V±10% 50HZ（60HZ） |
rated power | 0.15KW |
Single weighing range | ≤2kg |
Range of weighing accuracy | ±0.3g~±1g |
minimum scale | 1g |
conveying speed | 0～100m/min |
· Weighing speed | 160 pcs/min |
Measure of product | <280mm(L)*210mm(W) |
the size of the conveyor belt | 1500mm(L)*210mm(W) |
product size | 1522mm(L)*560mm(W) *1222mm(H) |
· Remove method | · push lever (or give signal) |
control system | High speed A/D sampling controller |
Preset the product number | 2000pcs |
· Operating Direction | Face the machine, in and out |
An external gas source | 0.6-1Mpa |
Air interface | Φ8mm |
work environment | Temperature: 0 ℃ to 40 ℃, humidity: 30% ~ 95% |
The body material | SUS304 stainless steel |
Checkweigher system spare parts:
brand | name | Specifications / Model | |
Wilen | touch screen | TK6071IQ 7inch | 1 |
CAUC | sensor | 25KGaluminium | 1 |
Omron | switching power supply | S8JC-C100 24C | 1 |
sommer | control switch | SLD2(3LD2-32A) | 1 |
Siemens | frequency converter | V20 frequency converter，single phase 220V， 0.55KW | 1 |
Jhongda | motor | three phase220V 90W （7.5：1） | 1 |
Taiwan gen | motor | three phase 220V 200W （10：1） | 1 |
AirTAC | pneumatic component | Air source processor, 24V solenoid valve, throttle valve, thread straight |
Toy online automatic checkweigher application:
The automatic toy checkweigher detects whether the whole box (packed) of toy products is missing (leaked) parts;
The automatic toy checkweigher detects whether the capsule toy is empty or lacks manuals and other accessories;
The toy checkweigher detects the lack of Lego blocks and the number of them;
The automatic toy checkweigher detects whether the whole box of toys is a majority or a minority.

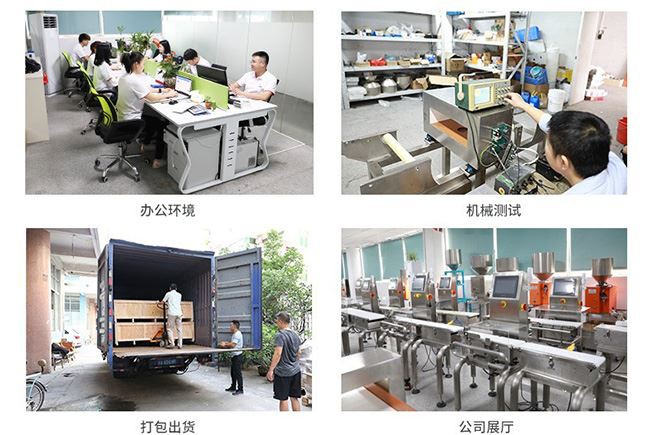

Toy online automatic checkweigher factory plant:

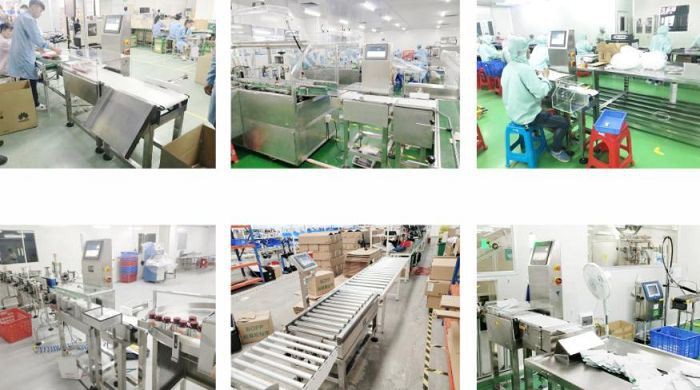

Toy online automatic checkweighercustomer cases:
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
After-sales service
We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3..We provide one year warranty
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
5 .12 Months guarantee and life-long technical support.
6.Your business relationship with us will be confidential to any third party.
7.Good after-sale service offered, please get back to us if you got any questions.
