50kg 60kg inline check weighing devices for logistics
inline check weighing devices Information:
This Big Range Dynamic Online Checkweigher for Heavy Products is mainly used for weight sorting and sorting, with the characteristics of short weight determination time and high recognition accuracy. The automatic weight sorting scale is generally installed at the back end of the production line such as production equipment and automatic packaging. Manage production. The data can also be fed back to the production equipment, so as to control the production equipment and prevent unnecessary loss of raw materials.
inline weighing devices parameter:
Modle | BTW12080S60 |
Weighing range | 0.2-60kg |
Best accuracty | ±25-50g； |
Weighing conveyor belt size | 1200(L)×800（w）（mm） |
Belt speed | 1.2m/S |
Whole machine size | 1200(L) ×1250（W）×800（belt to ground height）（mm）（for reference） |
Belt to ground height | 800(+50mm） |
Direction | Face to machine from left to right(or custom)； |
Voltage | AC220V±10%,3 phases |
Date communication | Ethernet communication port; (TCP or modbus format) |
inline weighing devices main configuration:
1) bestar dynamic weighing system V1.0.5;
2) German HBM custom load cell;
3) French Schneider Schneider Electric switch;
4) Danfoss inverter; Jingyan motor;
5) 7-inch Weiluntong color touch screen, friendly interface and easy to operate;

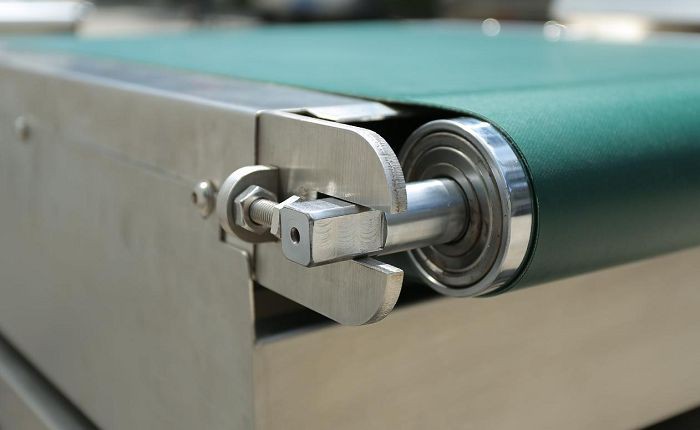

6) NSK bearing; 72 diameter dynamic balance roller;
7) SICK photoelectric sensor;
8) The weighing platform uses a black mesh belt;
9) Unique weighing frame mechanism design ensures accurate and reliable weighing;

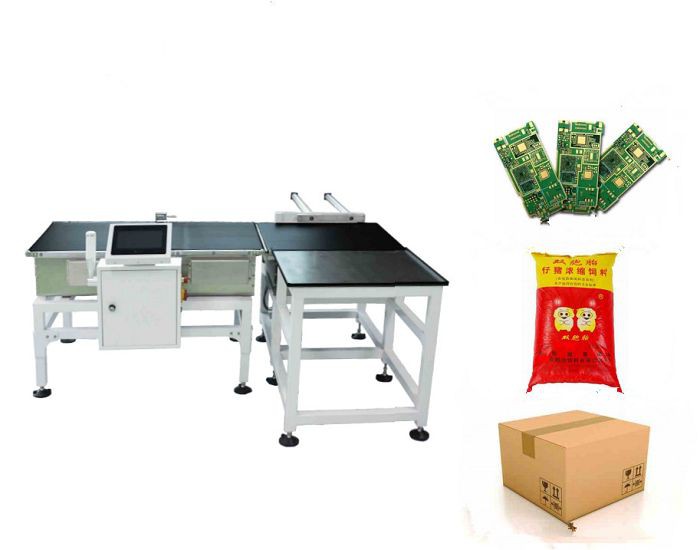

Views of the product (unit mm, can be customized according to demand)
inline weighing devices application:
The Big Range Dynamic Online Checkweigher for Heavy Products can be used in food, pharmaceutical, plastic, chemical, health products, cosmetics,electronics, daily life products industry, etc. It can be tested in pouch, bag, bottl, box.

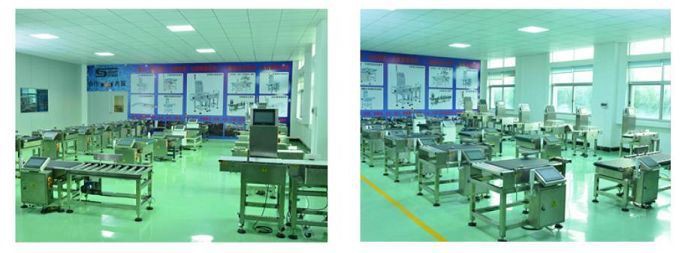

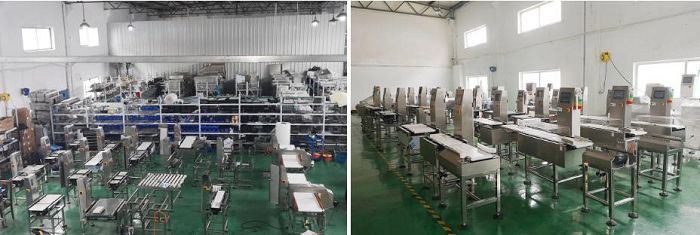

inline weighing devices factory plant:

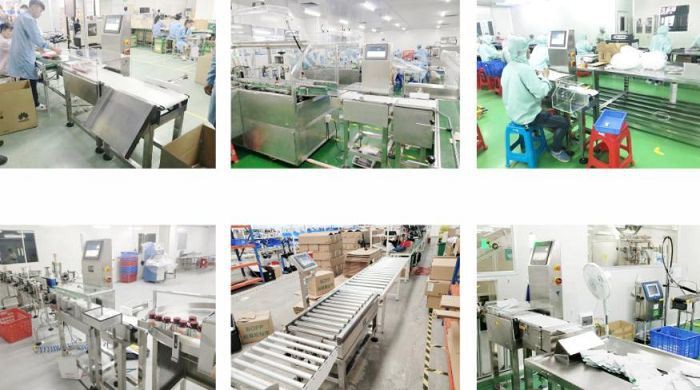

inline weighing devices Customer cases:
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3..We provide one year warranty
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
5 .12 Months guarantee and life-long technical support.
6.Your business relationship with us will be confidential to any third party.
7.Good after-sale service offered, please get back to us if you got any questions.
